Baja Designs | XL Linkable LED Light Bar - Universal
Baja Designs | XL Linkable LED Light Bar - Universal
Couldn't load pickup availability

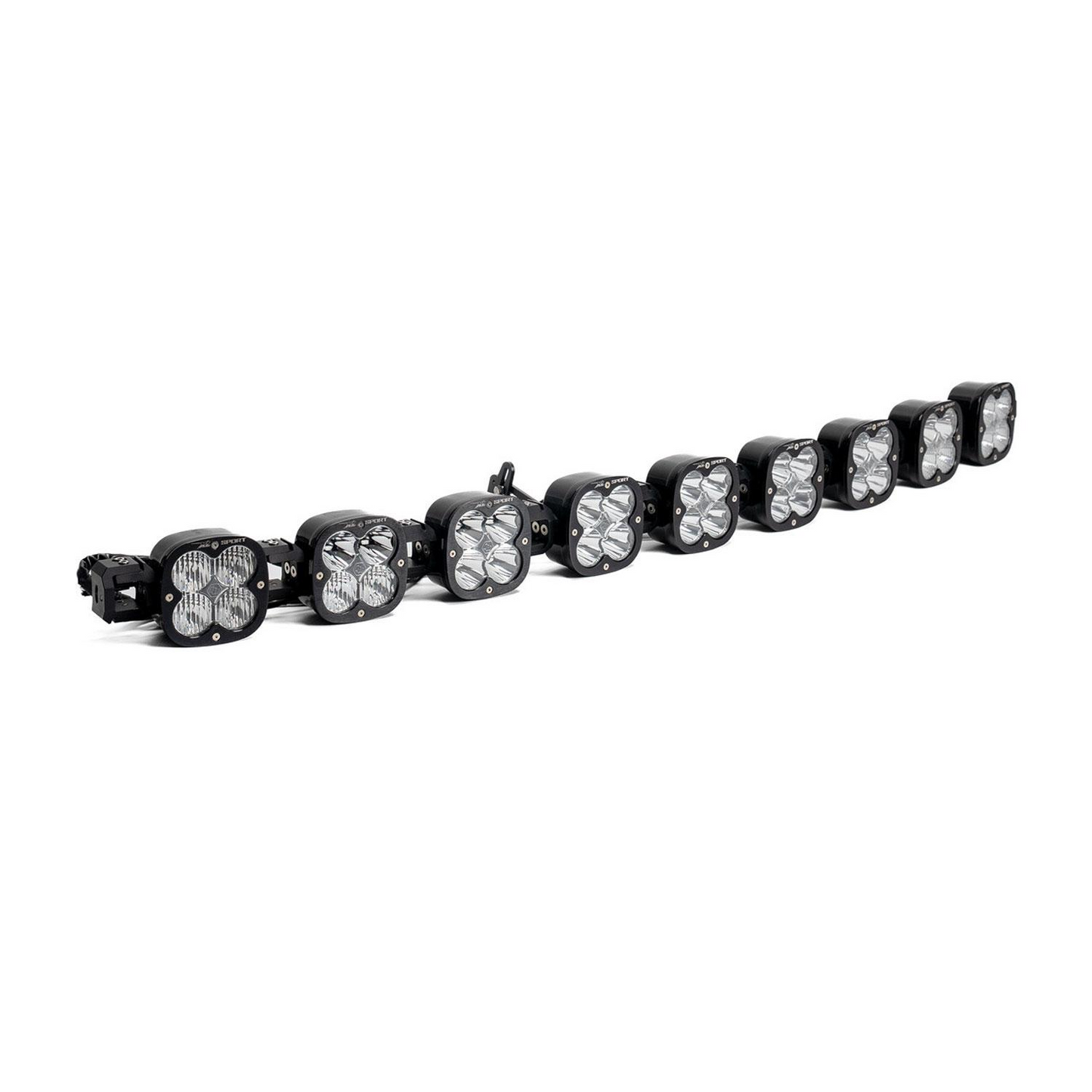

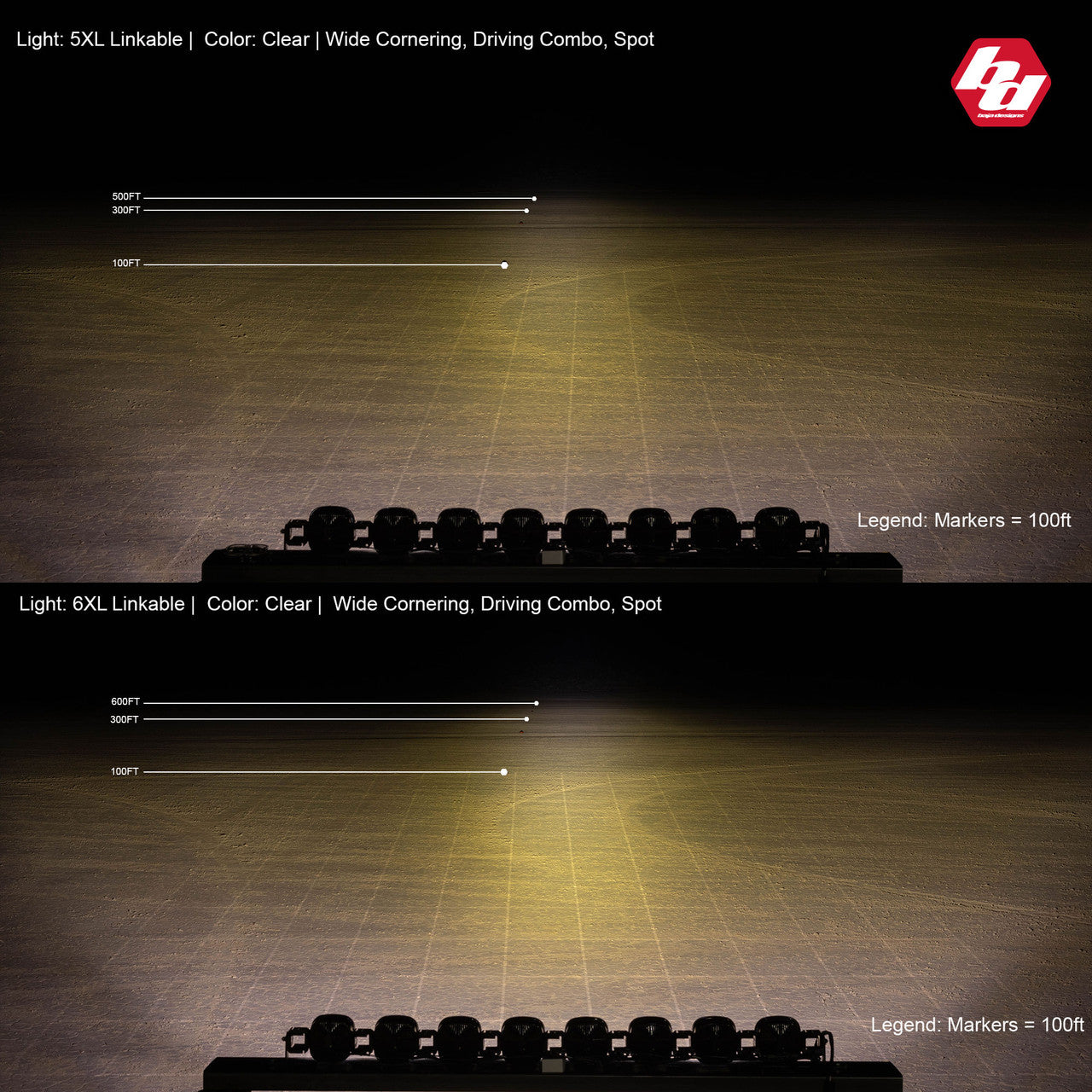

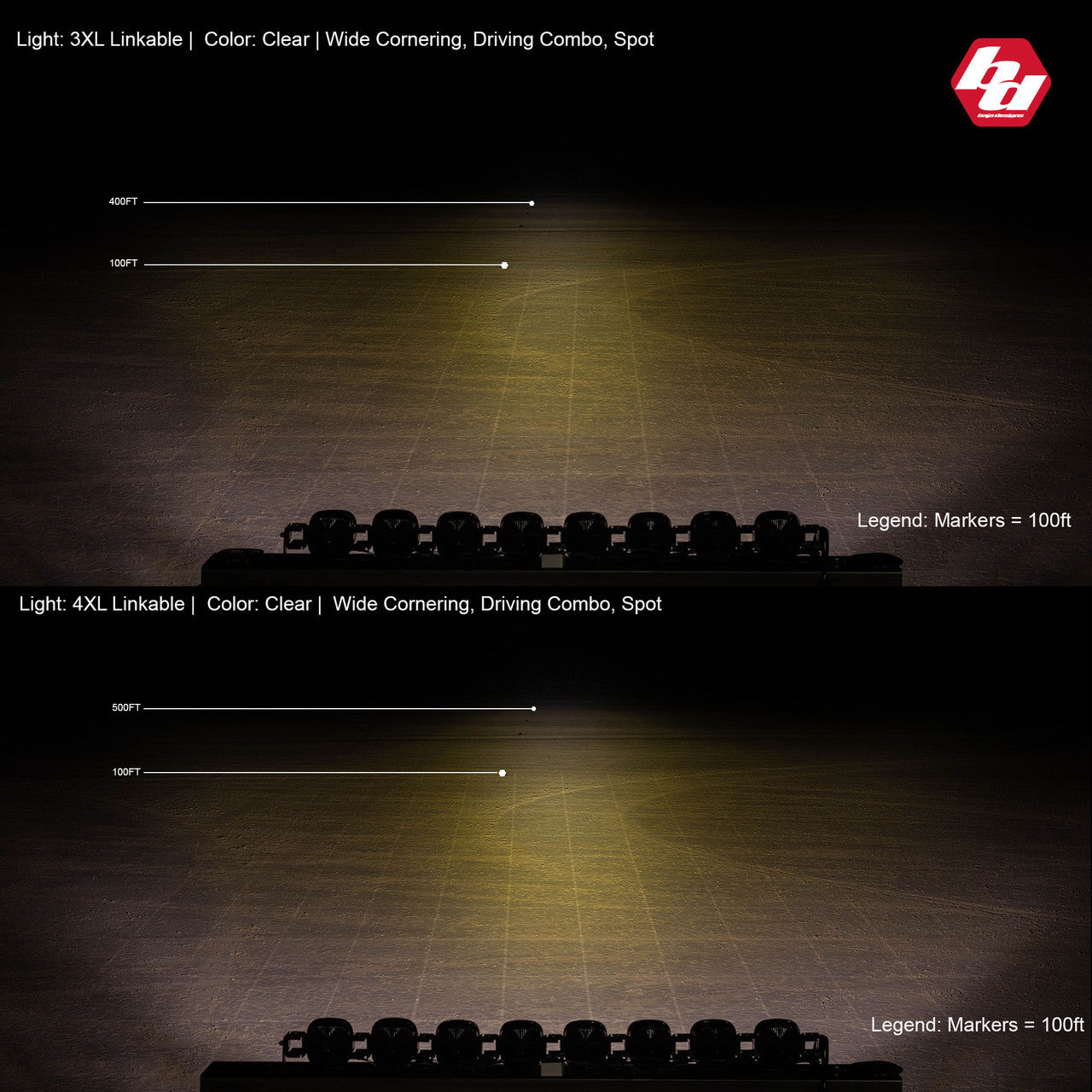

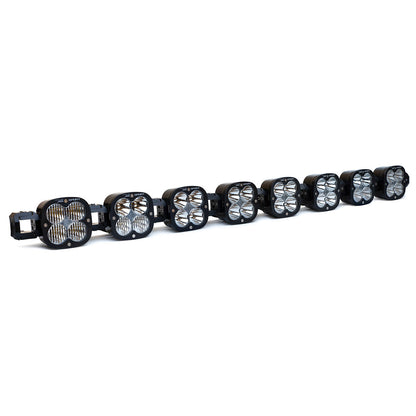

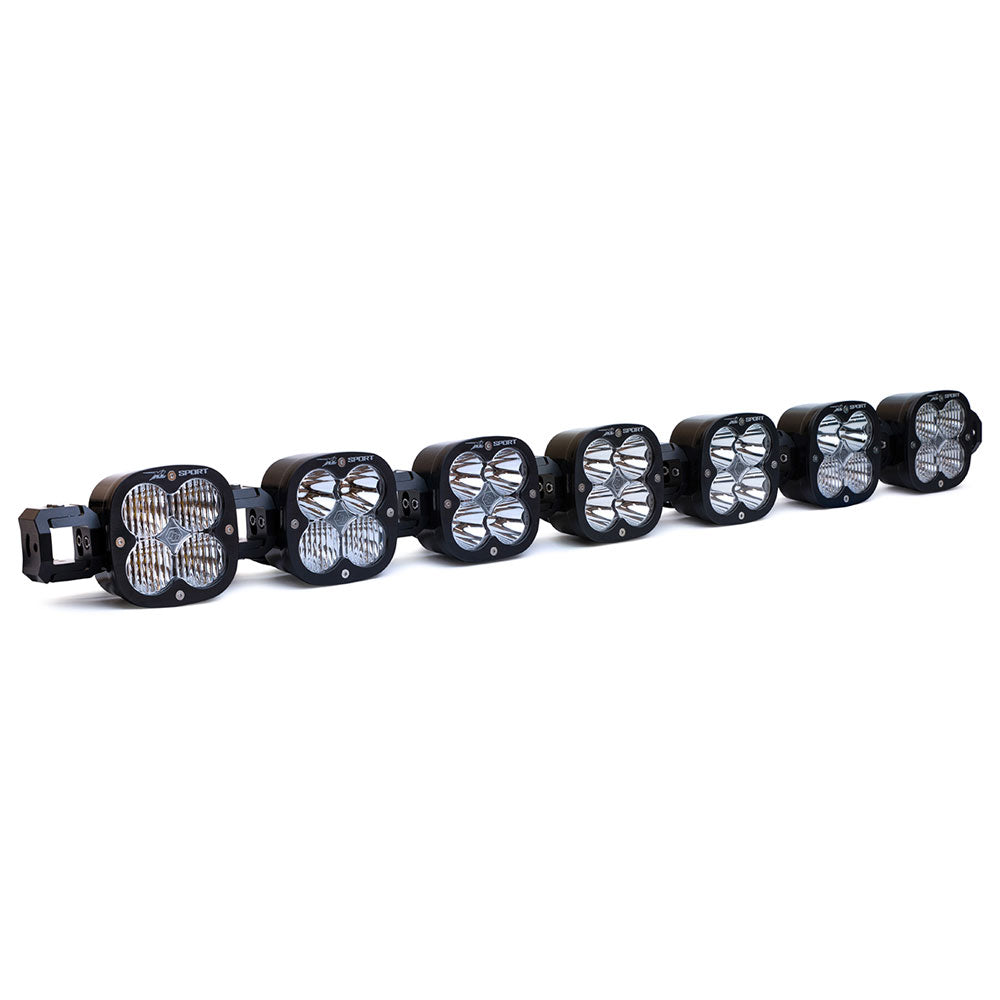

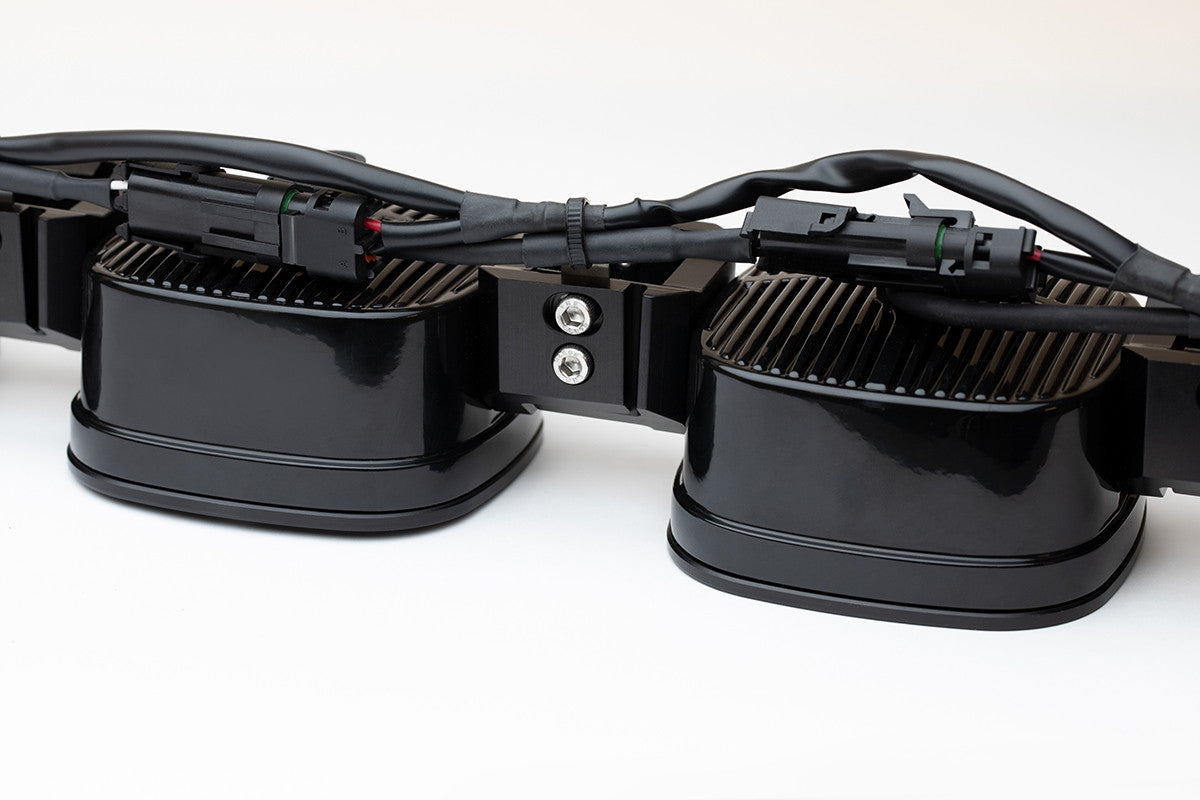

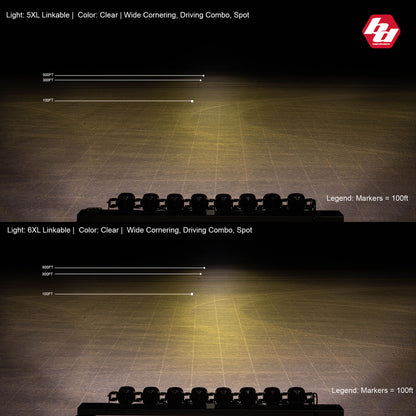

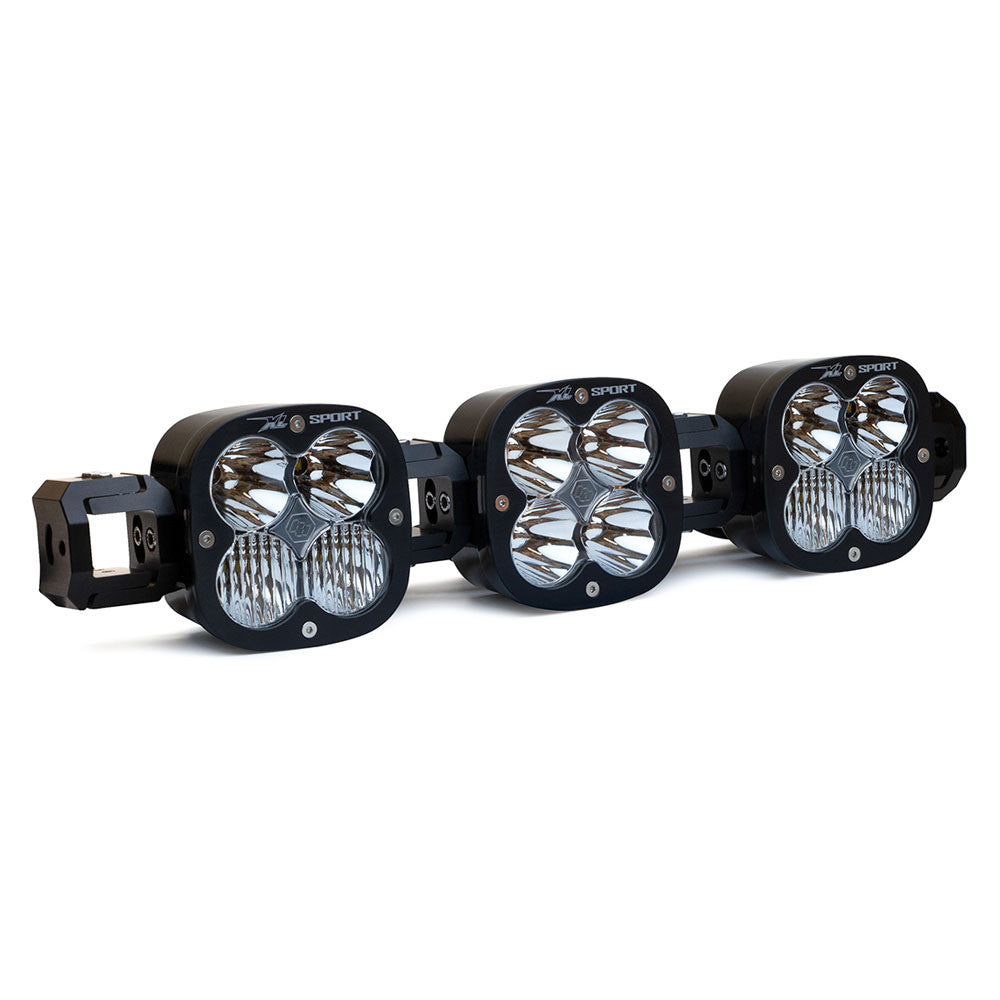

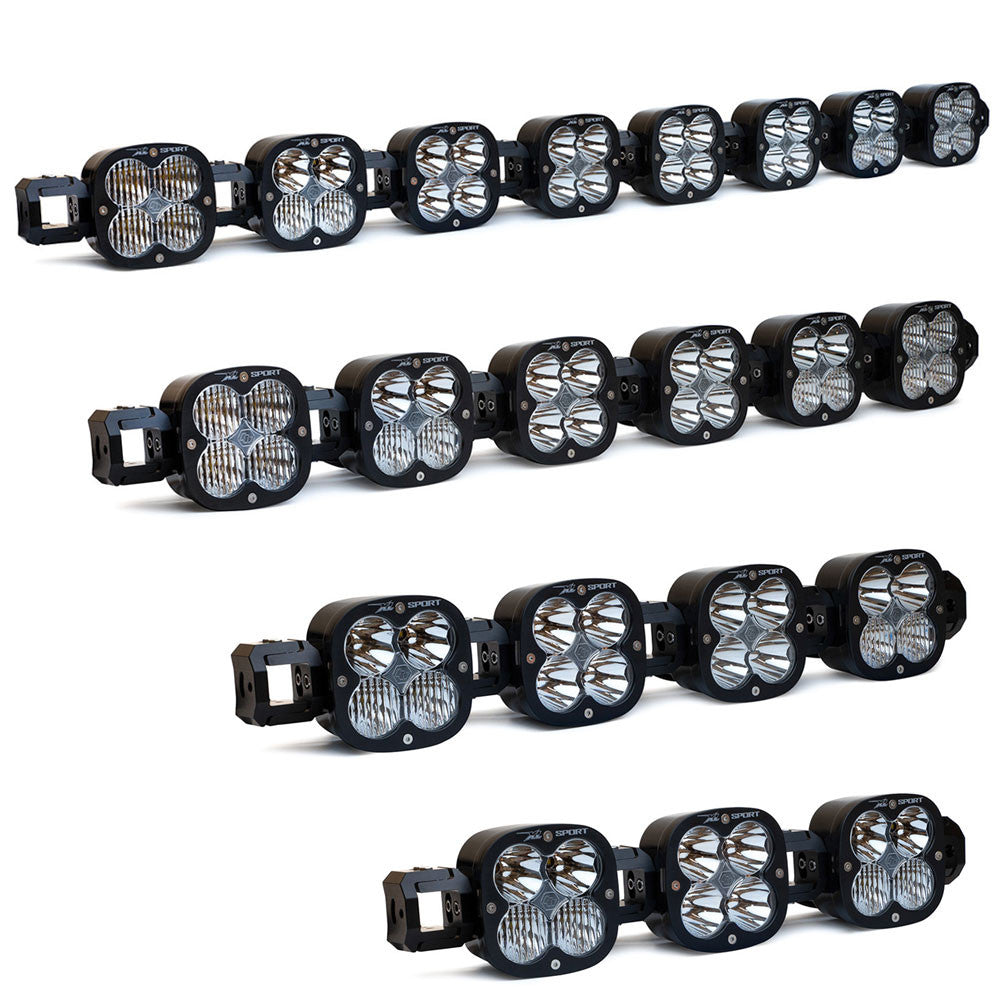

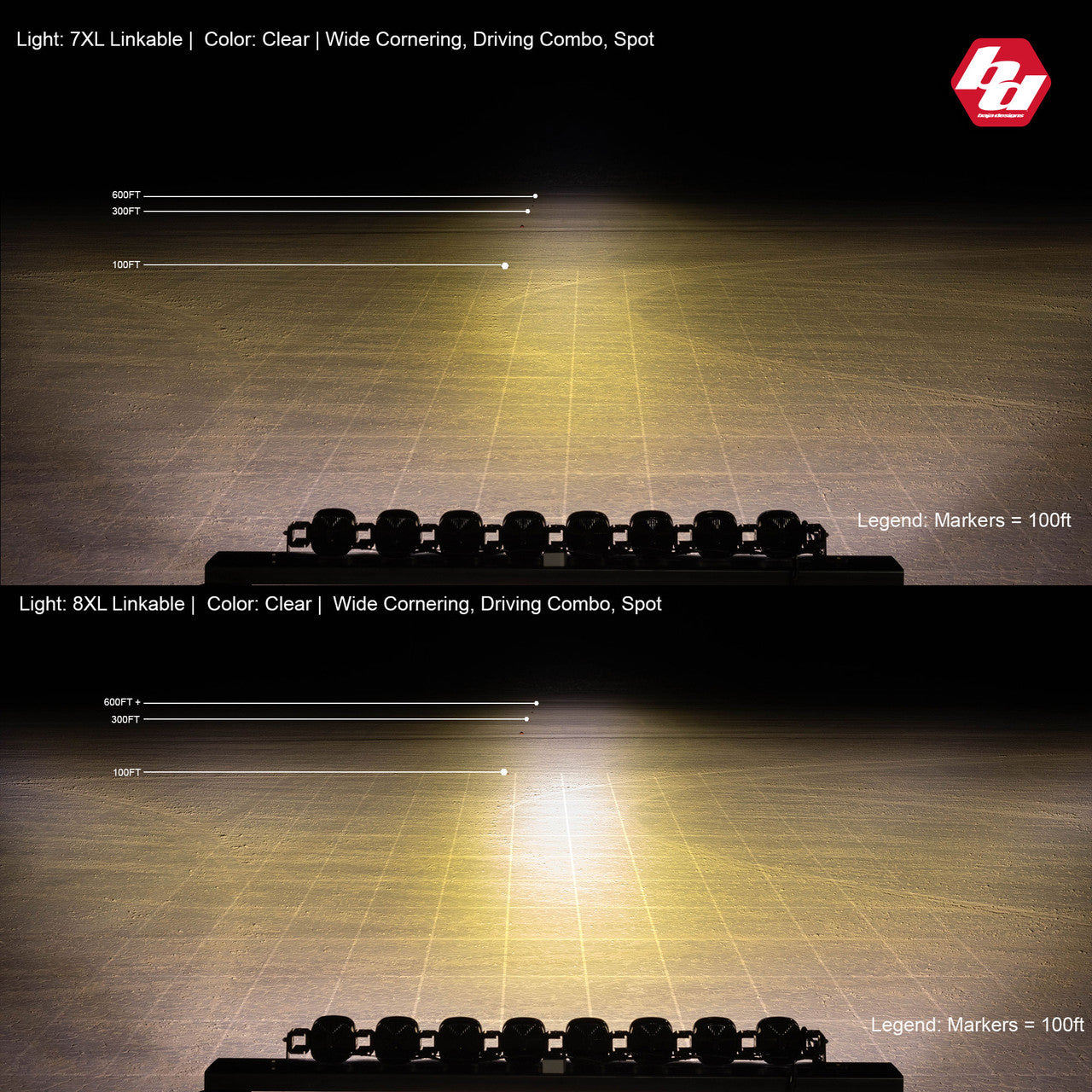

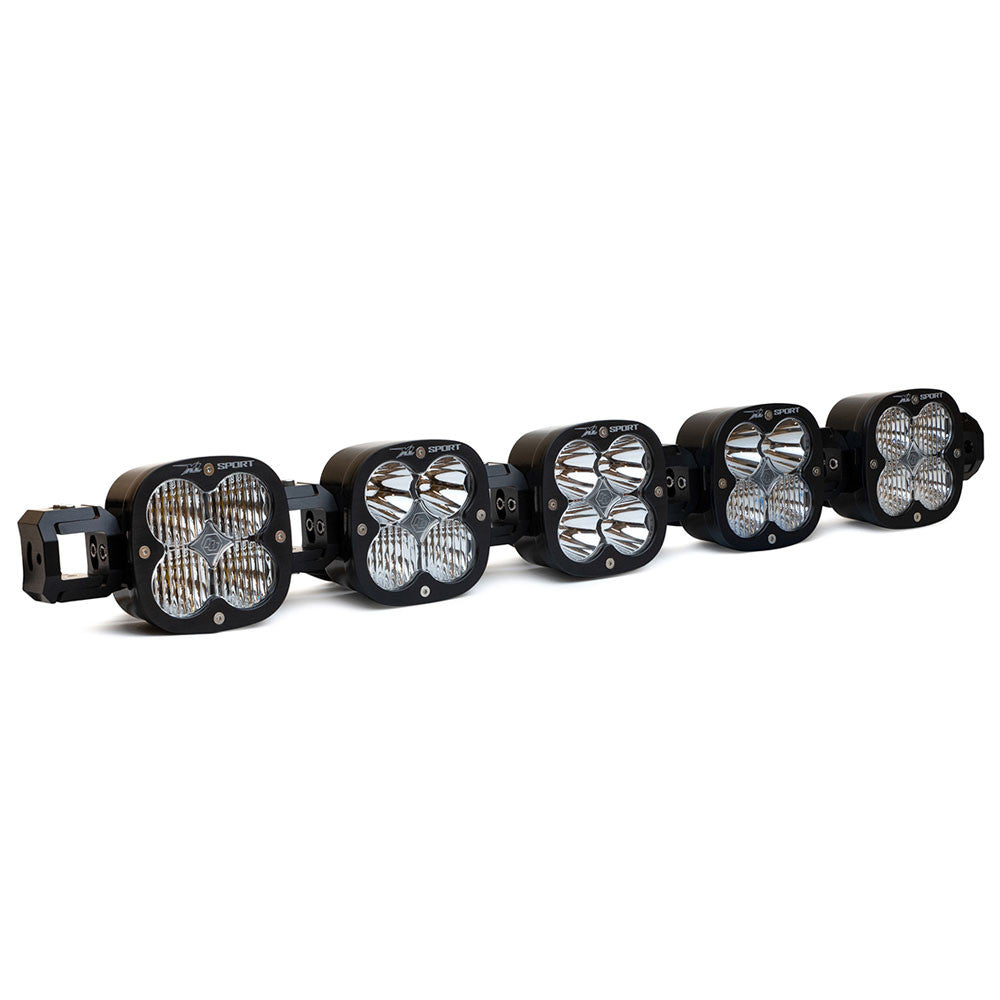

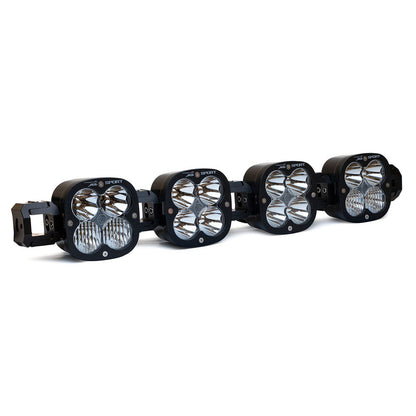

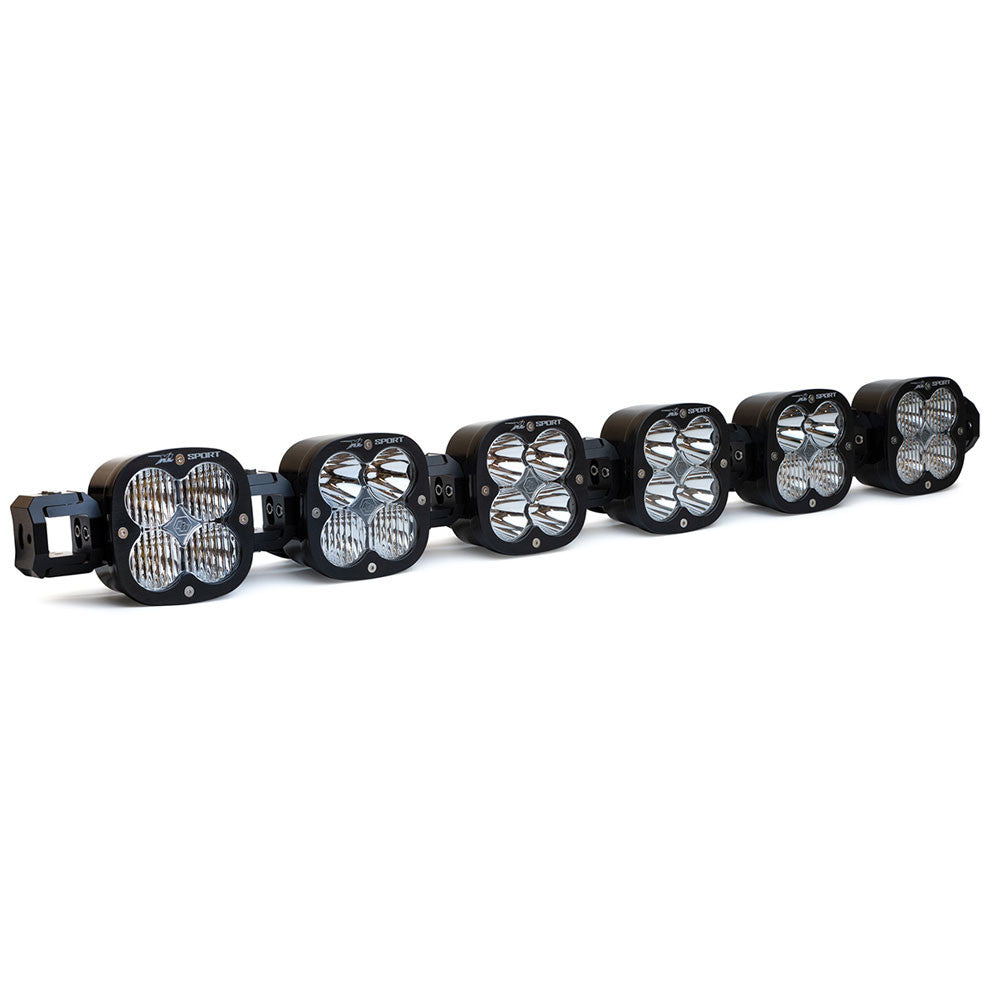

Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
NOTE: This light does not come with mounting brackets. The applicable mounting brackets can be found HERE.
**Inventory levels frequently change. For the most up-to-date information, please contact us directly at sales@landbully.com.
Features:
- 45 degrees of vertical pitch adjustment within each light or the entire unit.
- Independent horizontal adjustment per light allows for straight or arc configurations.
- Pre-Load kit included.
- Black rock guards included.
- Harness included (640115).
- NOTE: XL Linkable mounting brackets not included. Applicable brackets can be found HERE.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 748001
Specifications
| Description | 1XL Sport; Spot; Clear |
| Brightness (Lumens) | 3,162 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Amperage Rating (A) | 2 |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Hardcoated Polycarbonate | |
| Product Type | XL Linkable LED Add-a-Light |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Links; Rock Guard |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Universal or Specific | Universal |
| Wiring Harness Description | Pre-crimped |
| Wiring Harness Included | Yes |
| Wattage (W) | 30.36 |

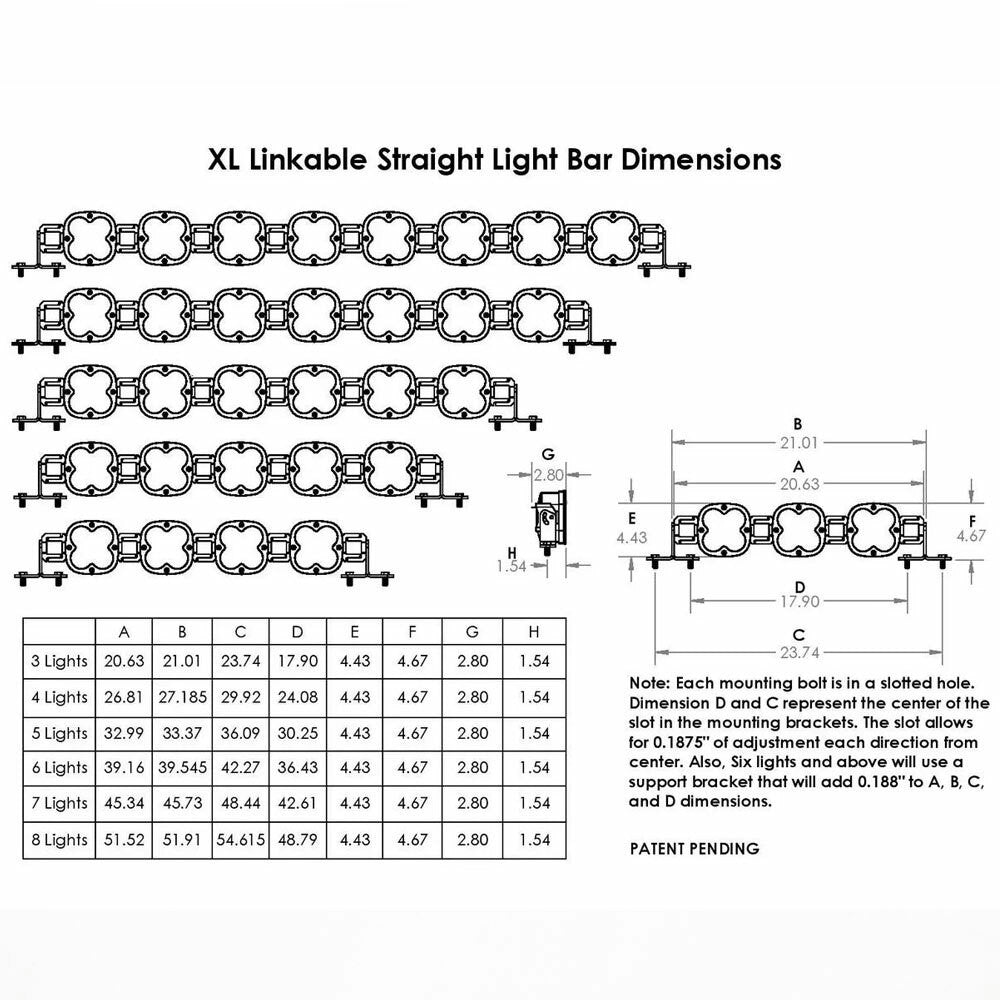

Dimensions
| Length (in.) | 4.43 |
| Height (in.) | 4.43 |
| Depth (in.) | 2.8 |
| Weight (lbs.) | 2.45 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
