Priced per wheel. Beadlock rings sold separately.

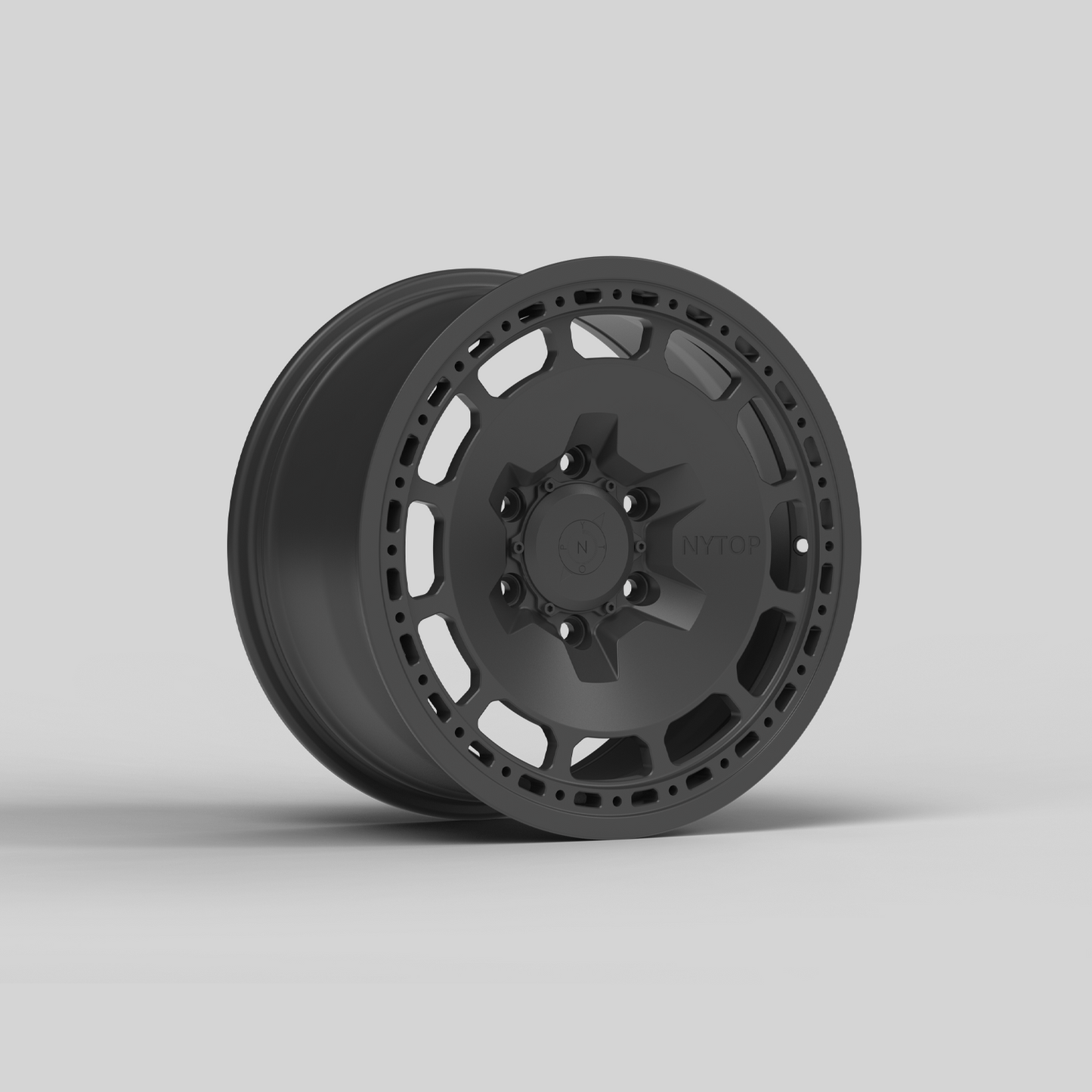

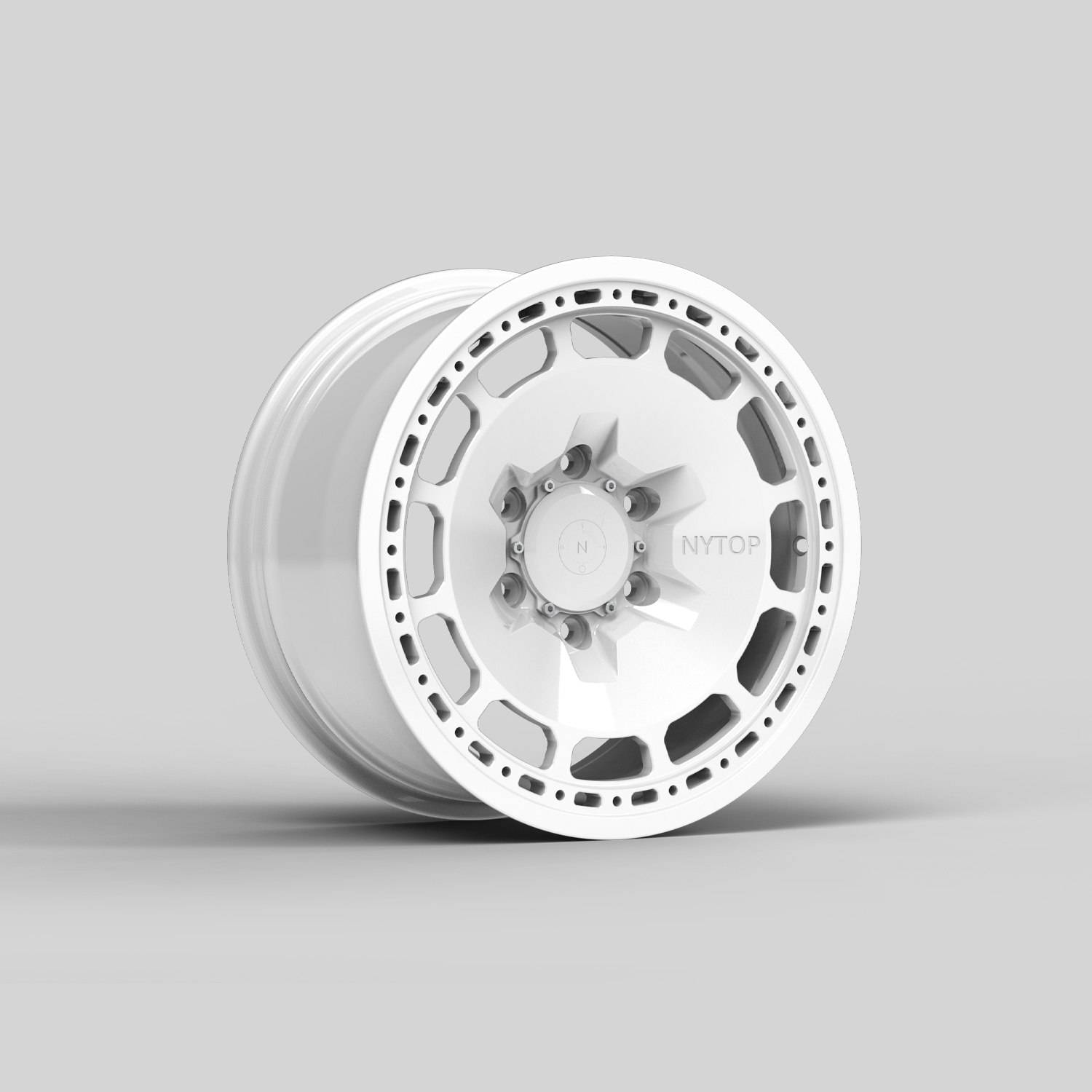

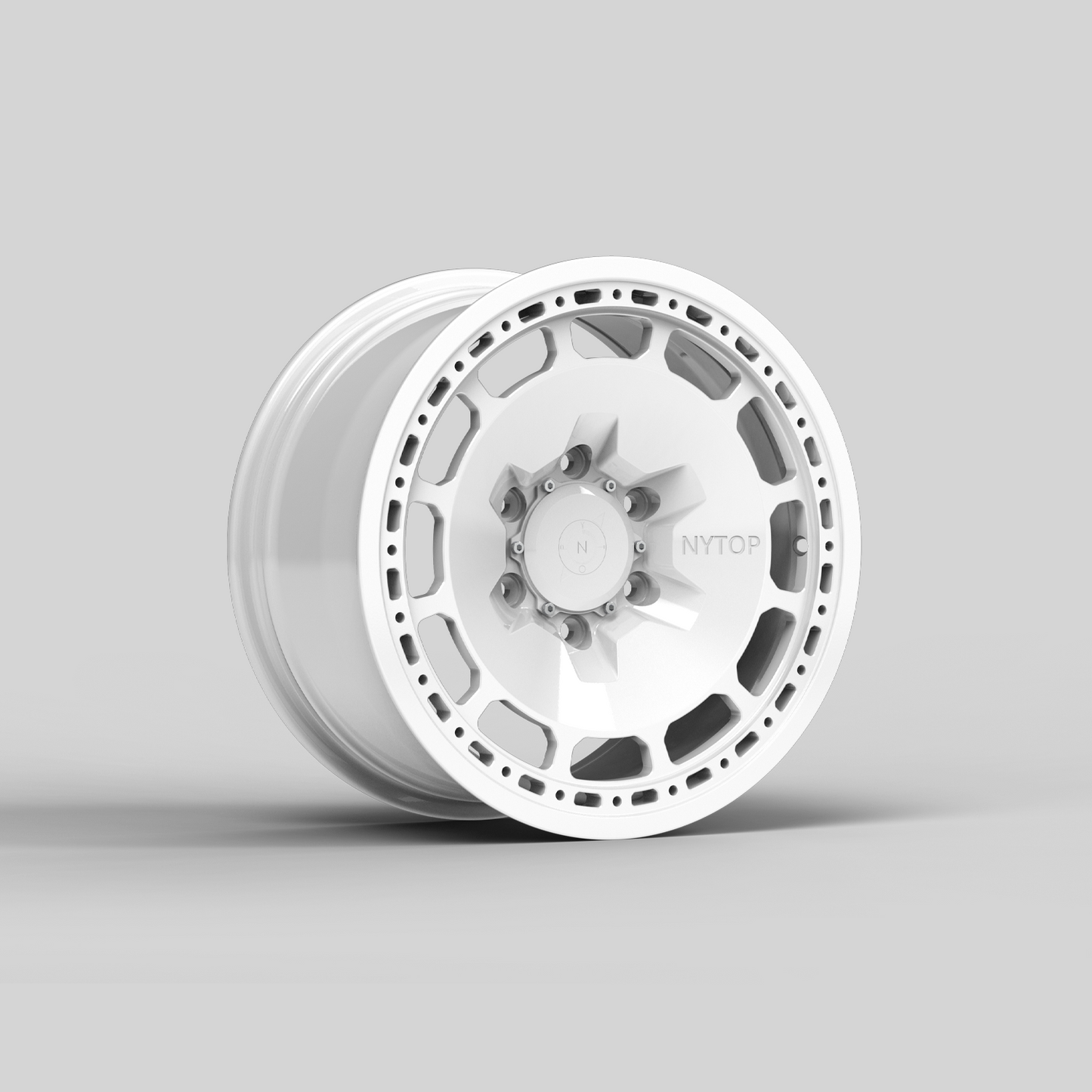

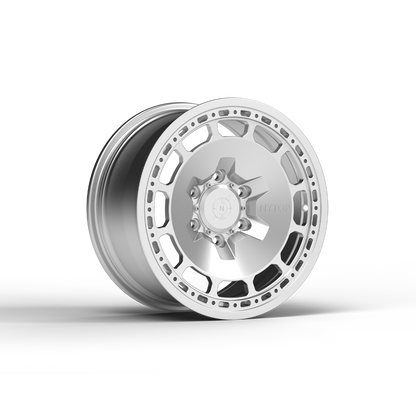

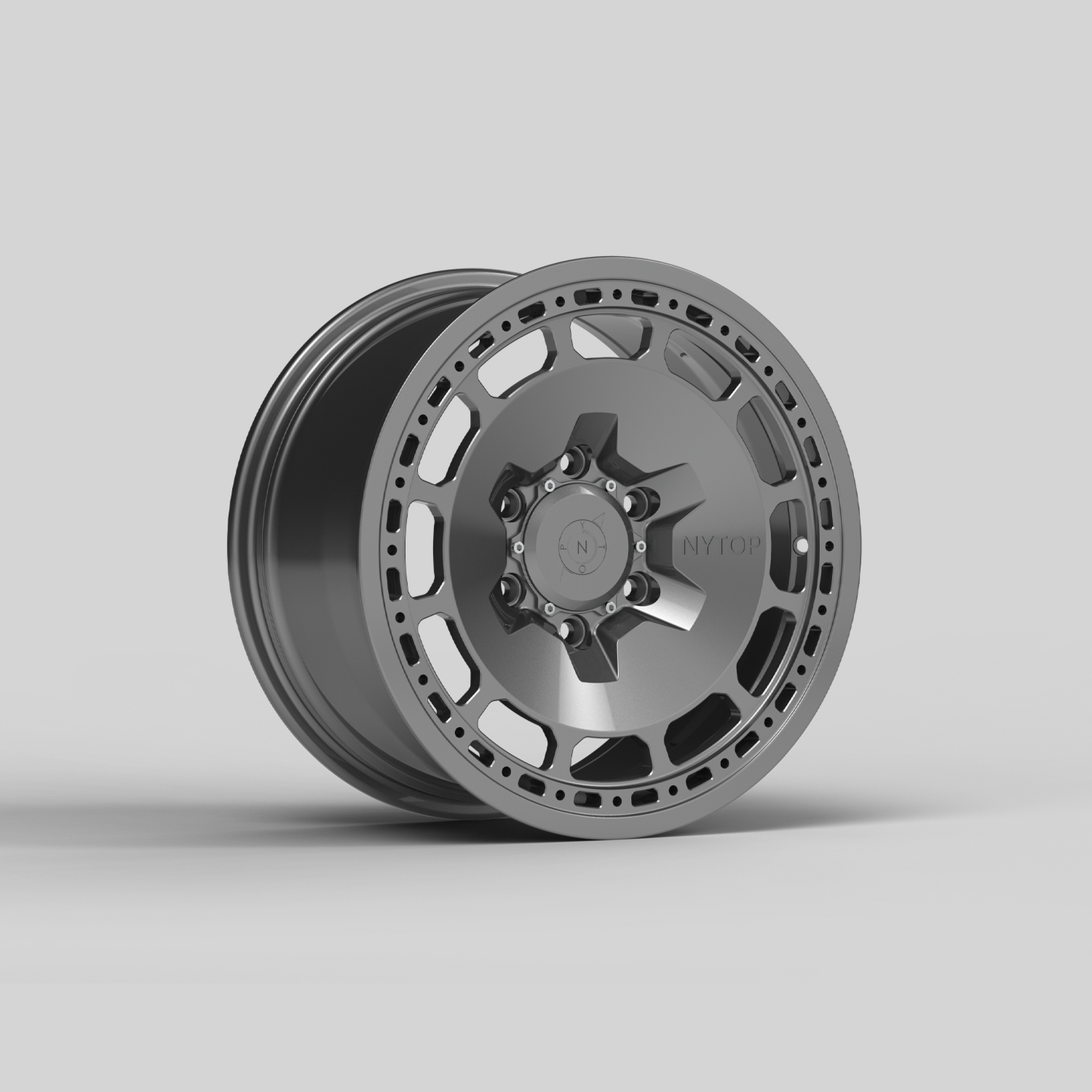

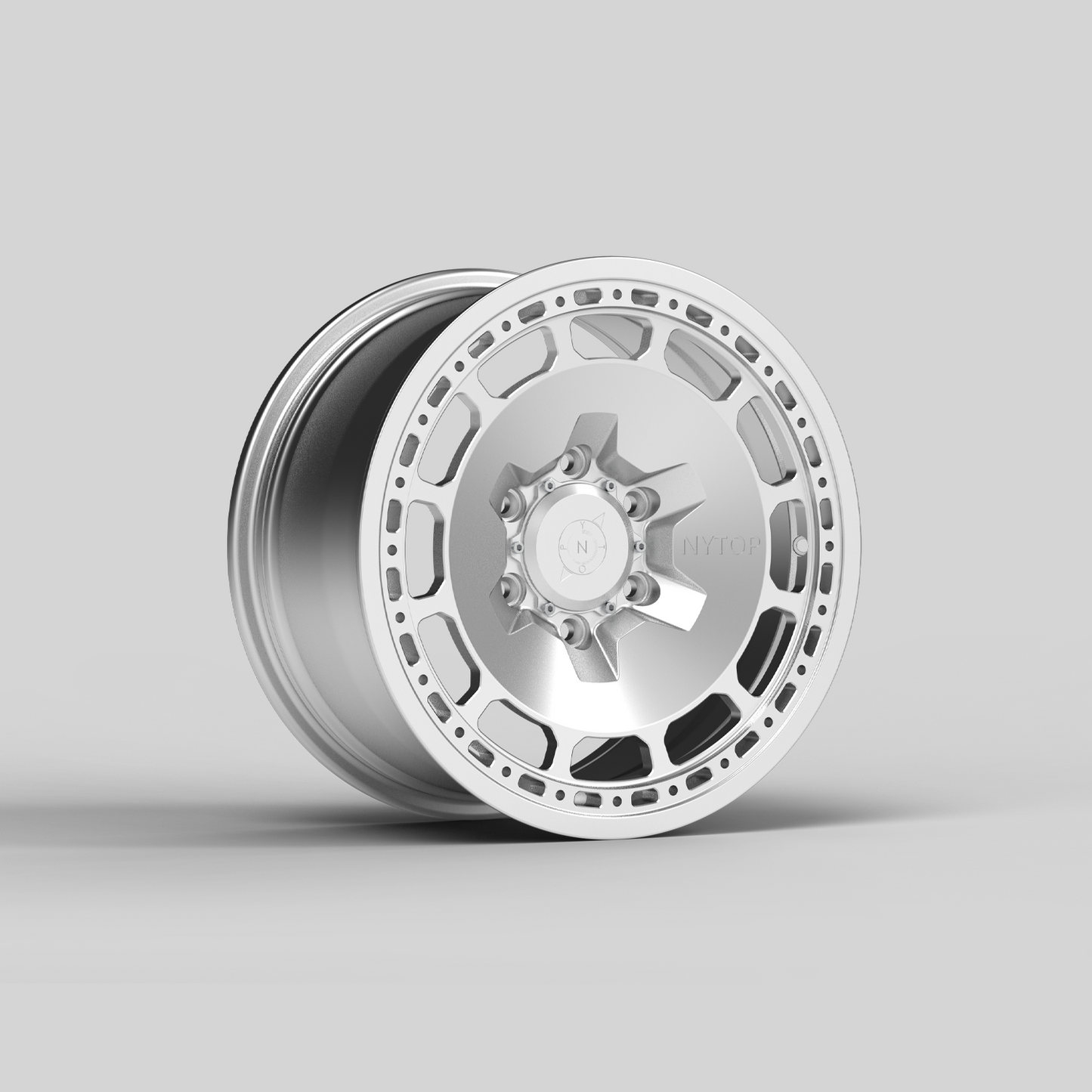

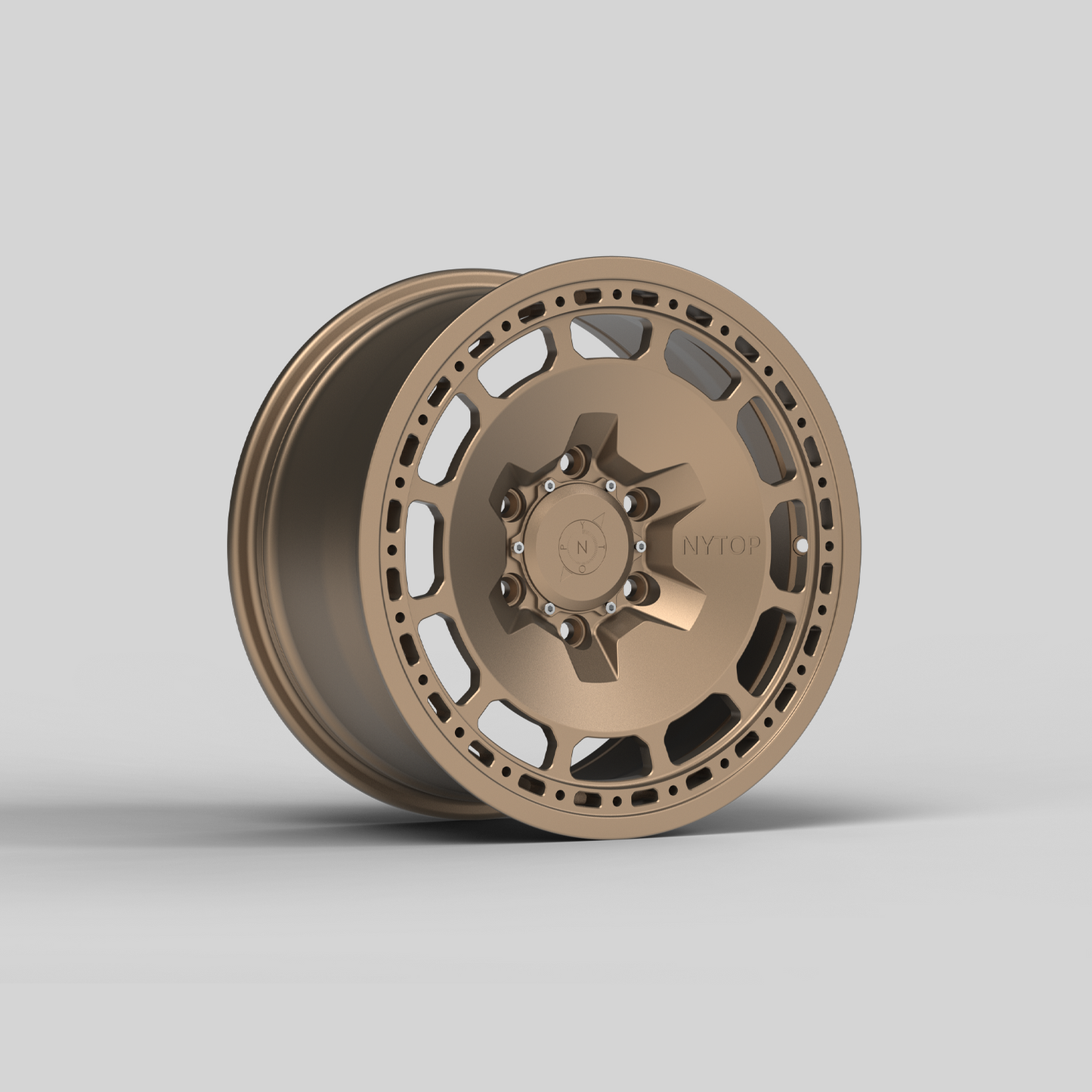

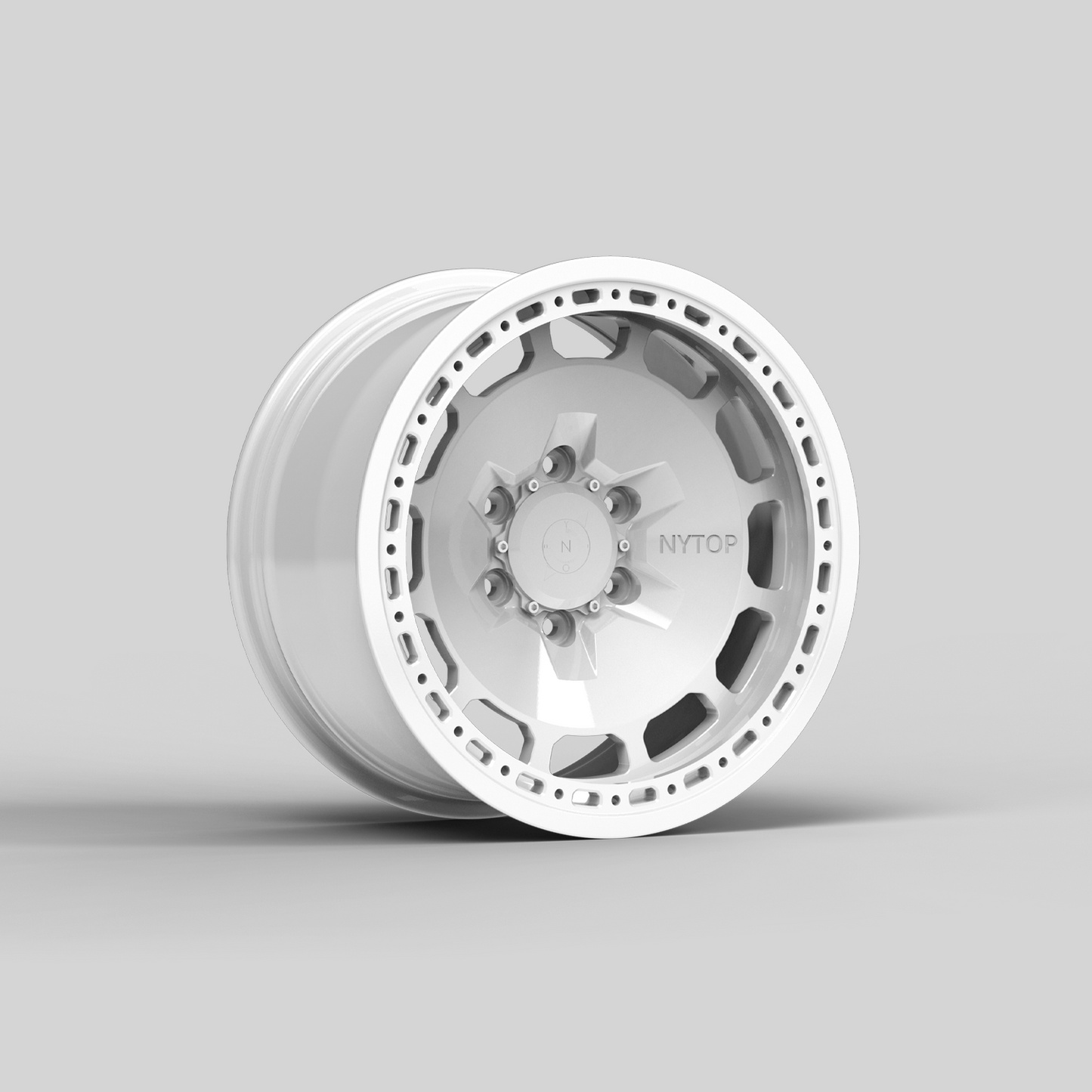

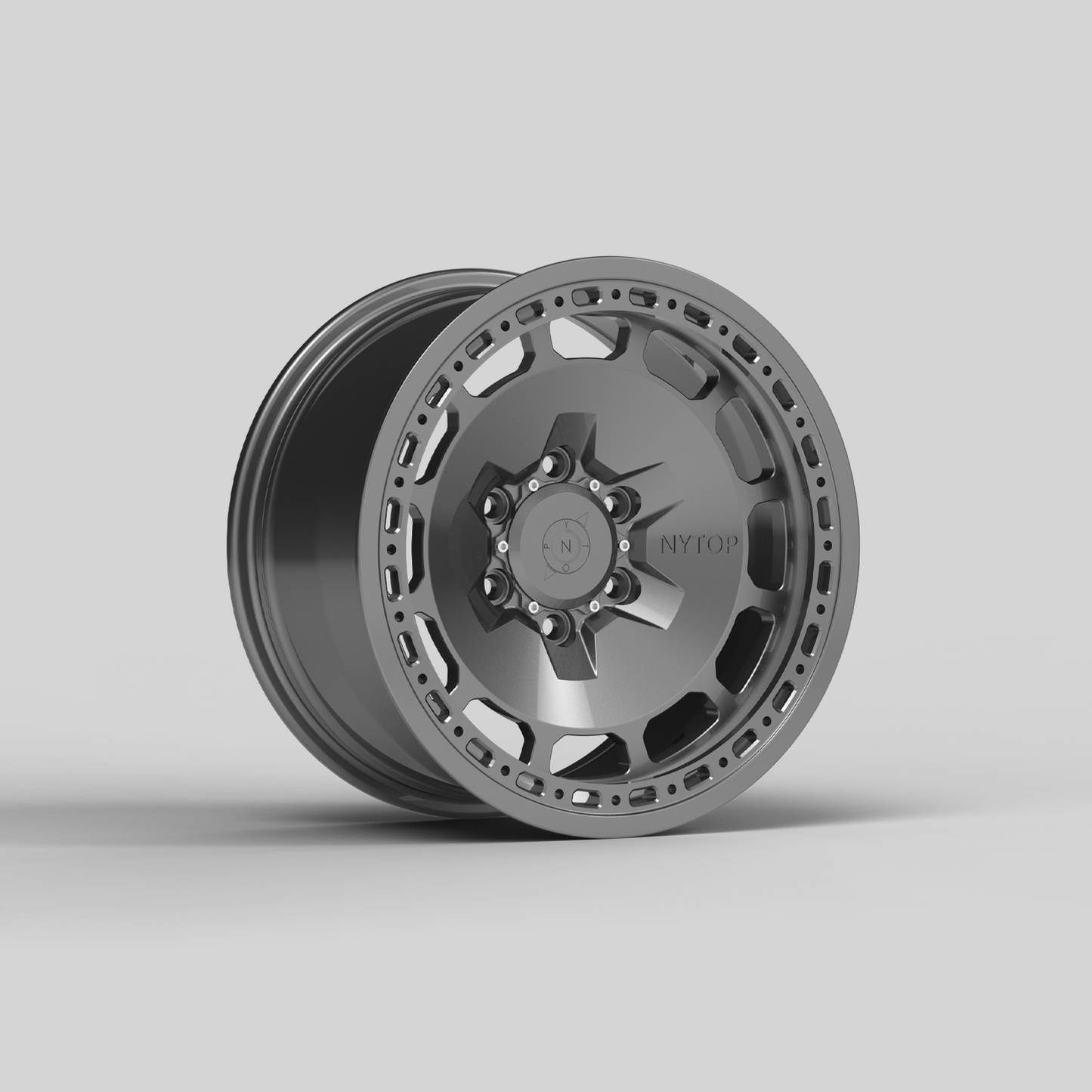

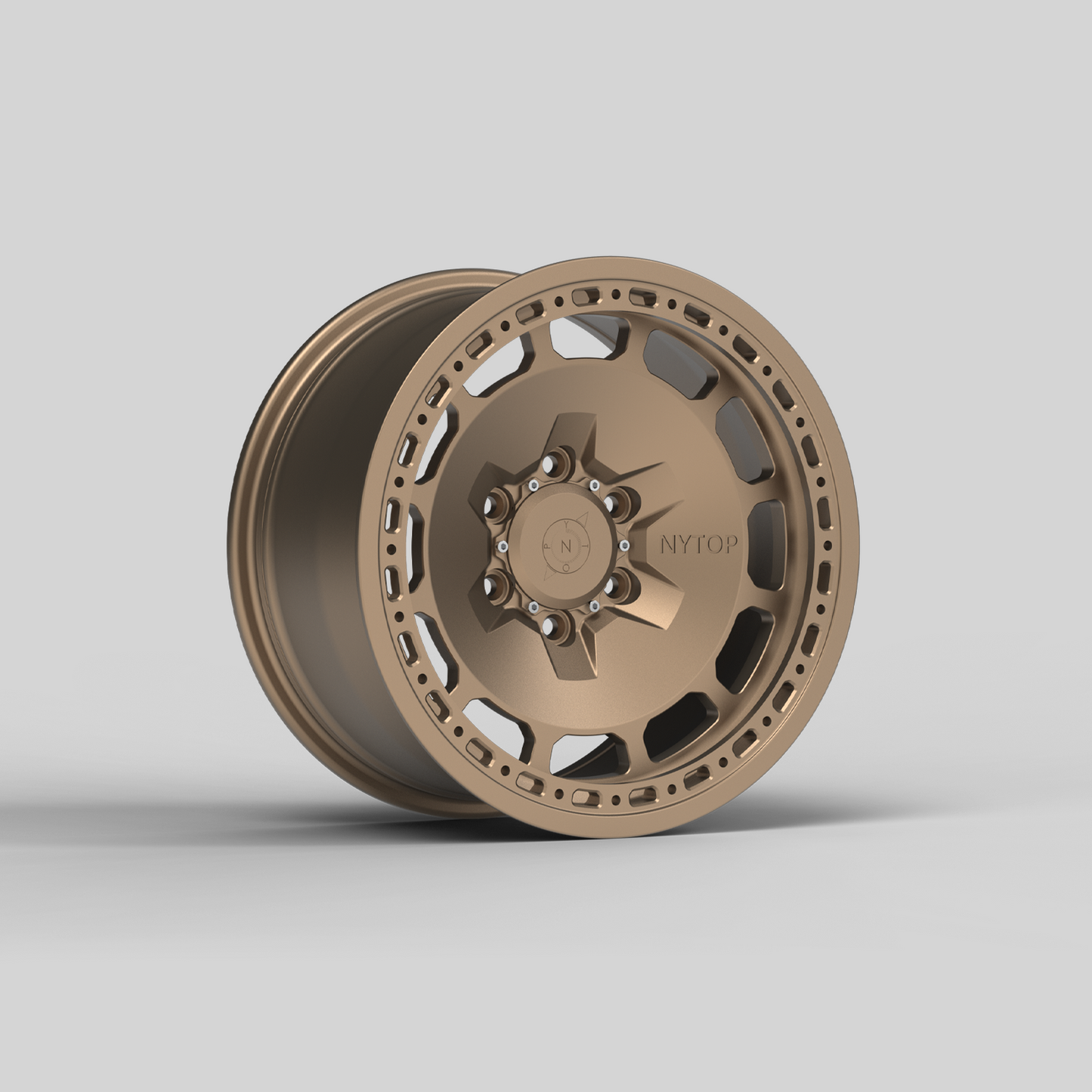

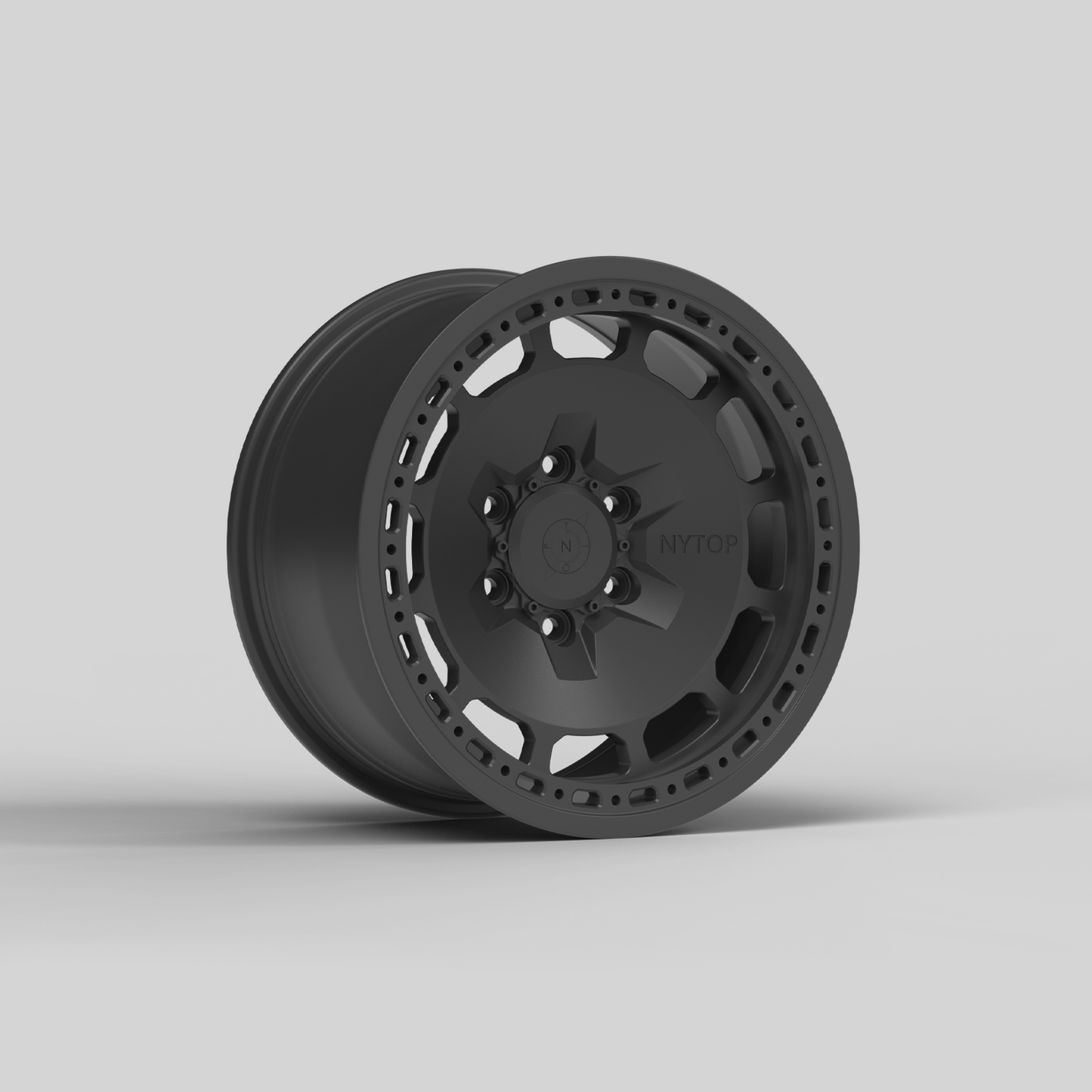

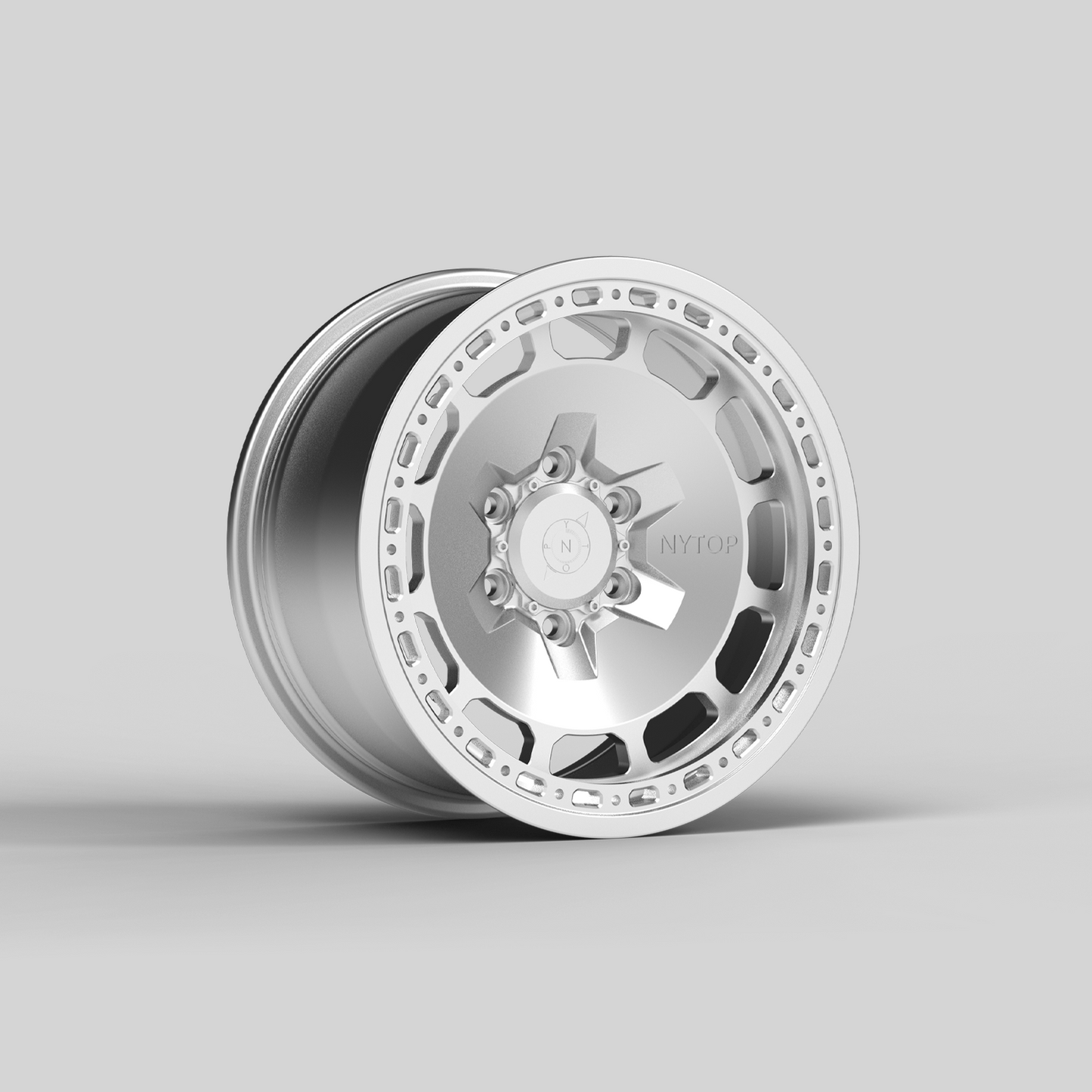

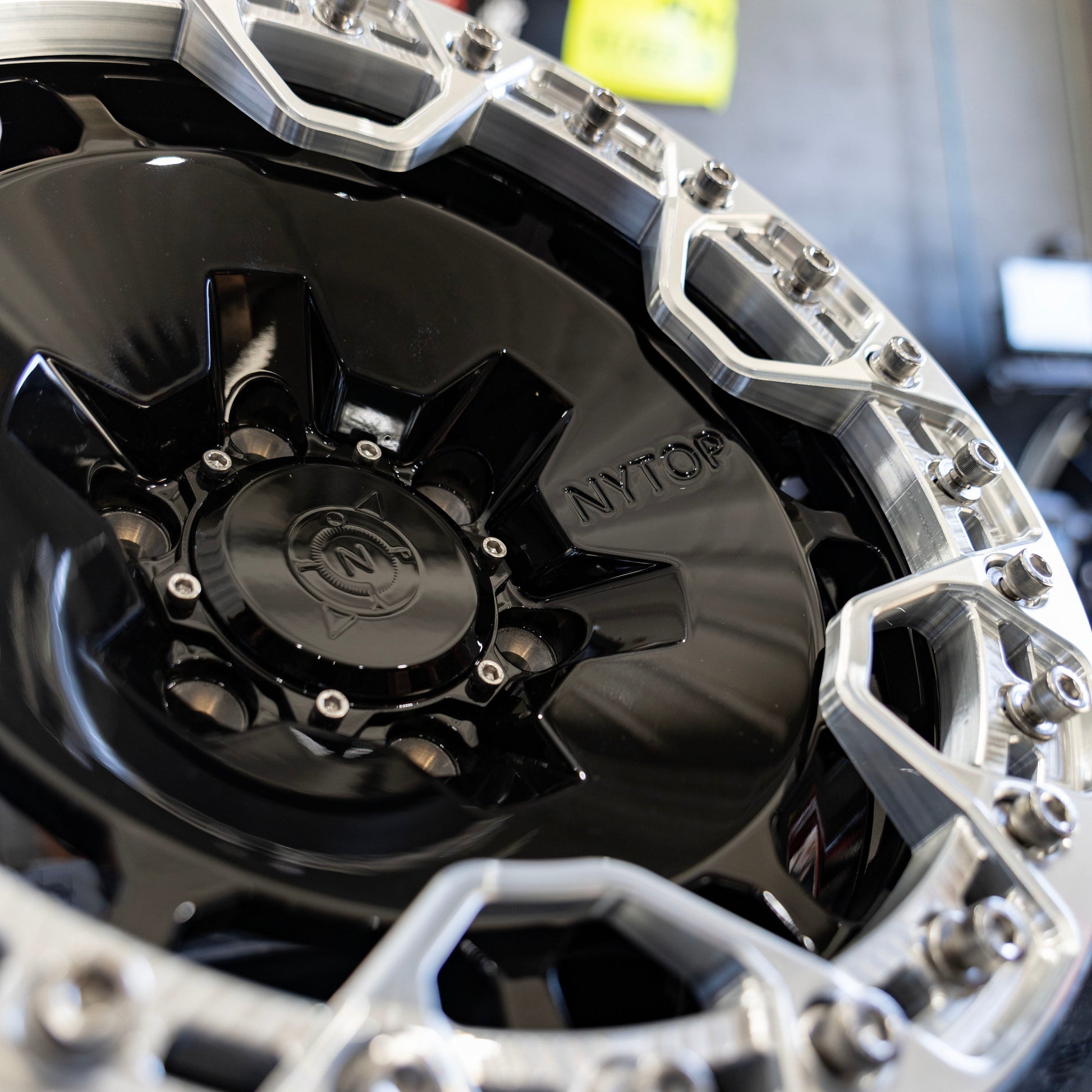

Our Adventure Series Beadlock Wheels are CNC machined forged 6061-T6 aerospace-grade aluminum with screw-on type CNC machined billet aluminum center caps.
These wheels allow you to mount tires with or without a beadlock ring.

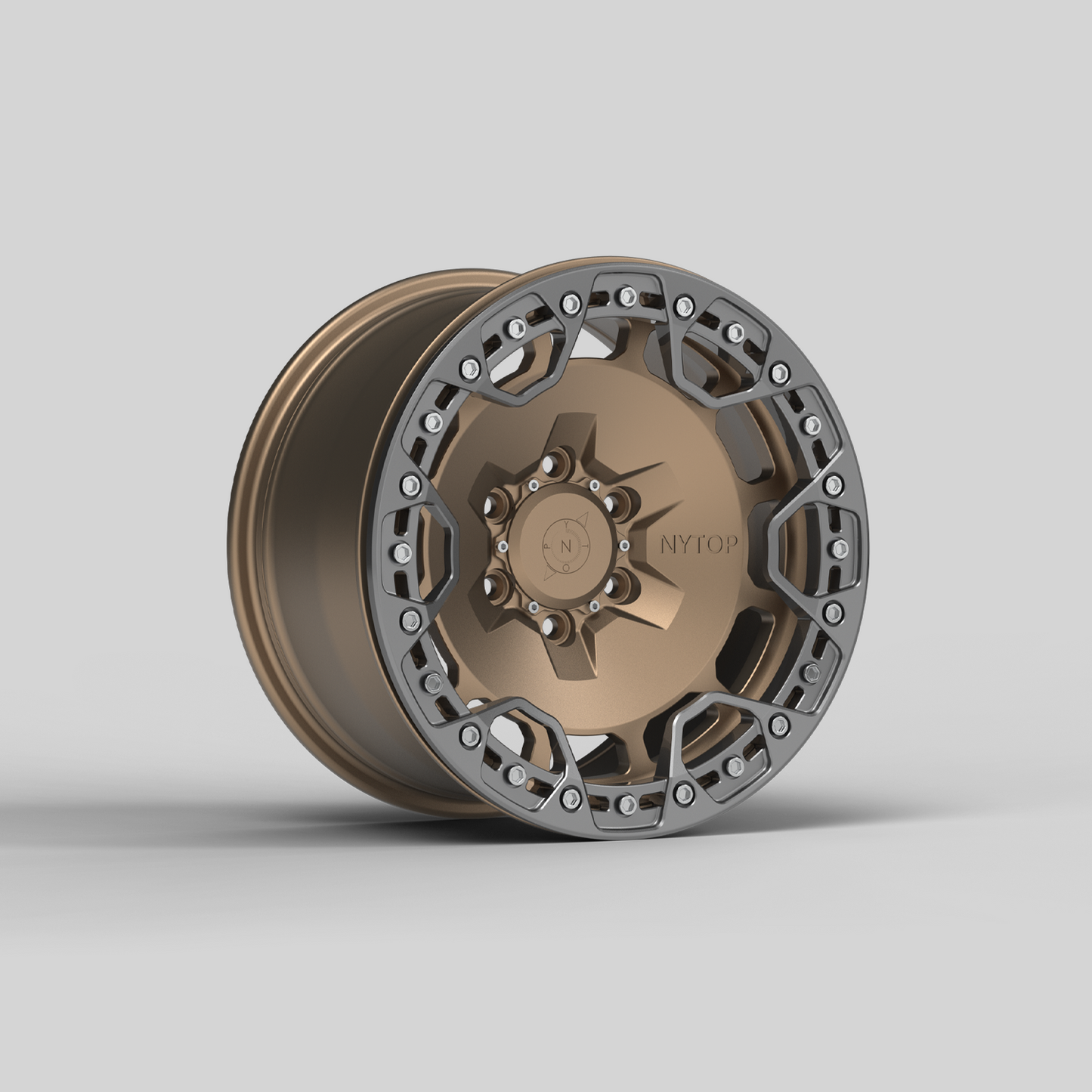

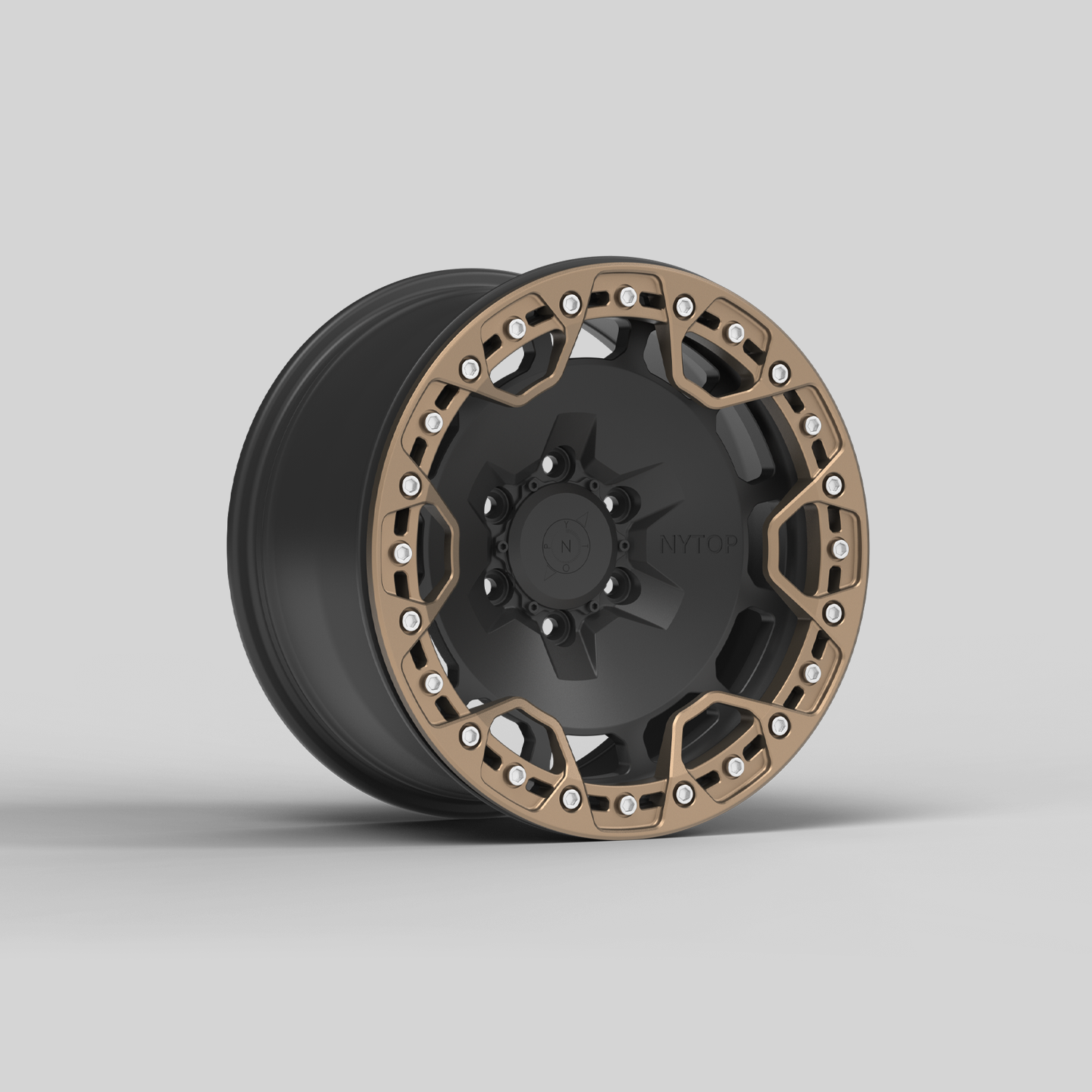

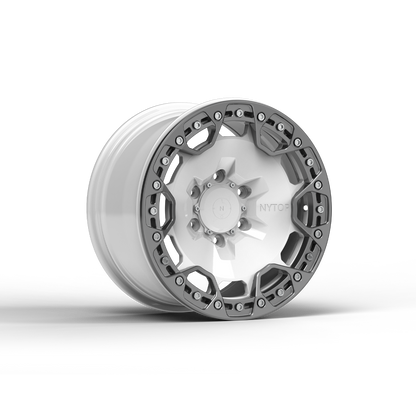

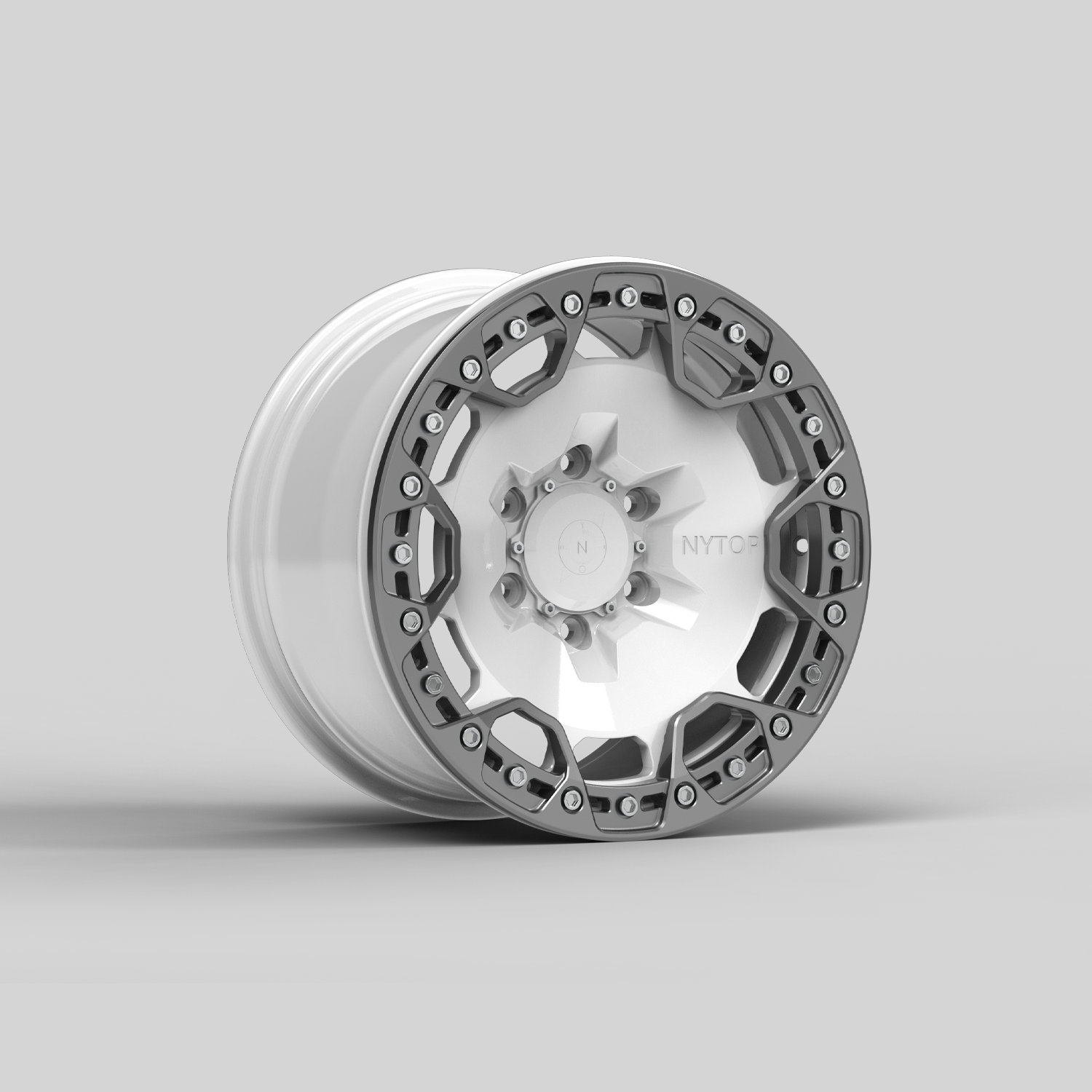

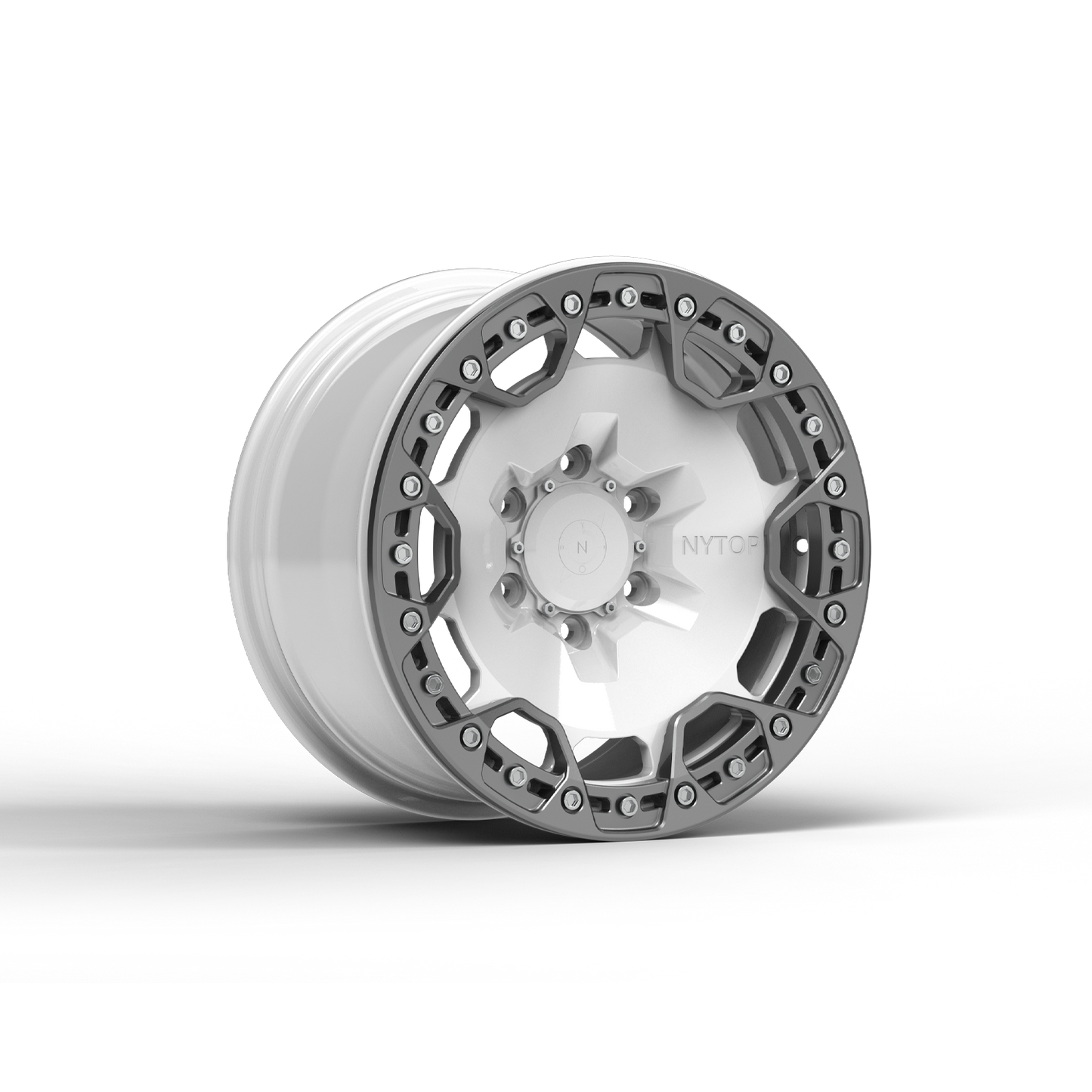

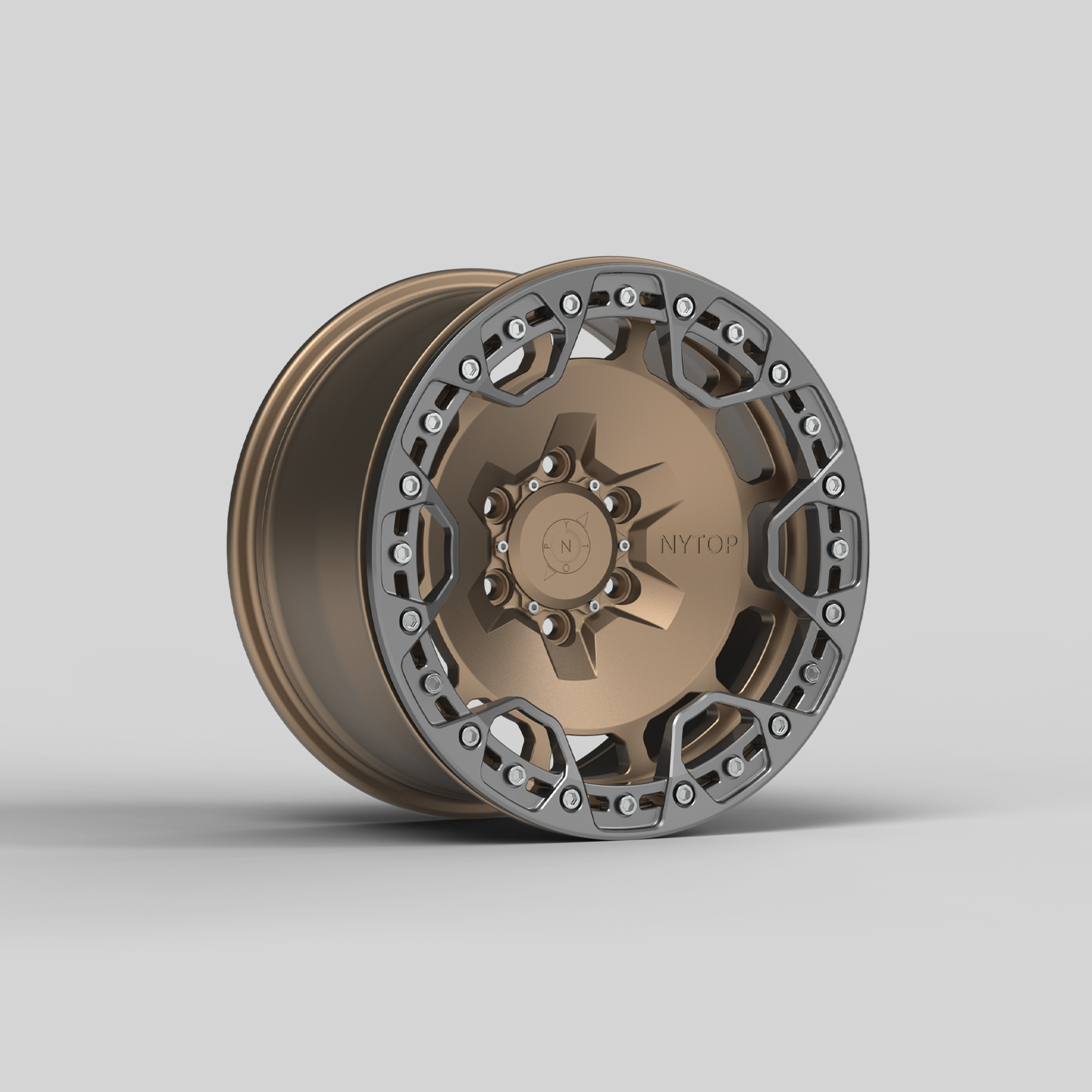

Our proprietary beadlock ring design is engineered for a smoother, more efficient mounting process. Unlike traditional setups that require pry bars to seat the tire bead into the wheel face, our rings feature a self-guiding profile that gradually draws the bead into place as you tighten the bolts.
The ADV-Beadlock is available in a 17x8.5 in size with 0 mm and +25 mm offset. The lug pattern is 6x139.7/6x5.5. The hub bore size is 106.1 mm (fits previous gen Tacoma, GX460, 4Runner, etc.), with an optional 95.1 mm hub centric adapter ring (sold separately) to fit the new TOYOTA TNGA-F truck platform (new Tundra, Sequoia, Tacoma, LC, 4Runner and GX550).
This lug pattern also fits the following vehicles (may require different hub centric rings):
-
2019-current 4th and 5th Gen Ford Ranger (all trims, including Raptor)
-
2021-current 6th Gen Ford Bronco (all non-Raptor trims)
-
All GM 1500 platform trucks (all generations)
-
2019-current 5th Gen Ram 1500
-
Nissan Titan (all generations)
-
Nissan Frontier (first generation)
Our ADV Series Off-road Wheels are both lug centric and hub centric. Do NOT use extended lugs.

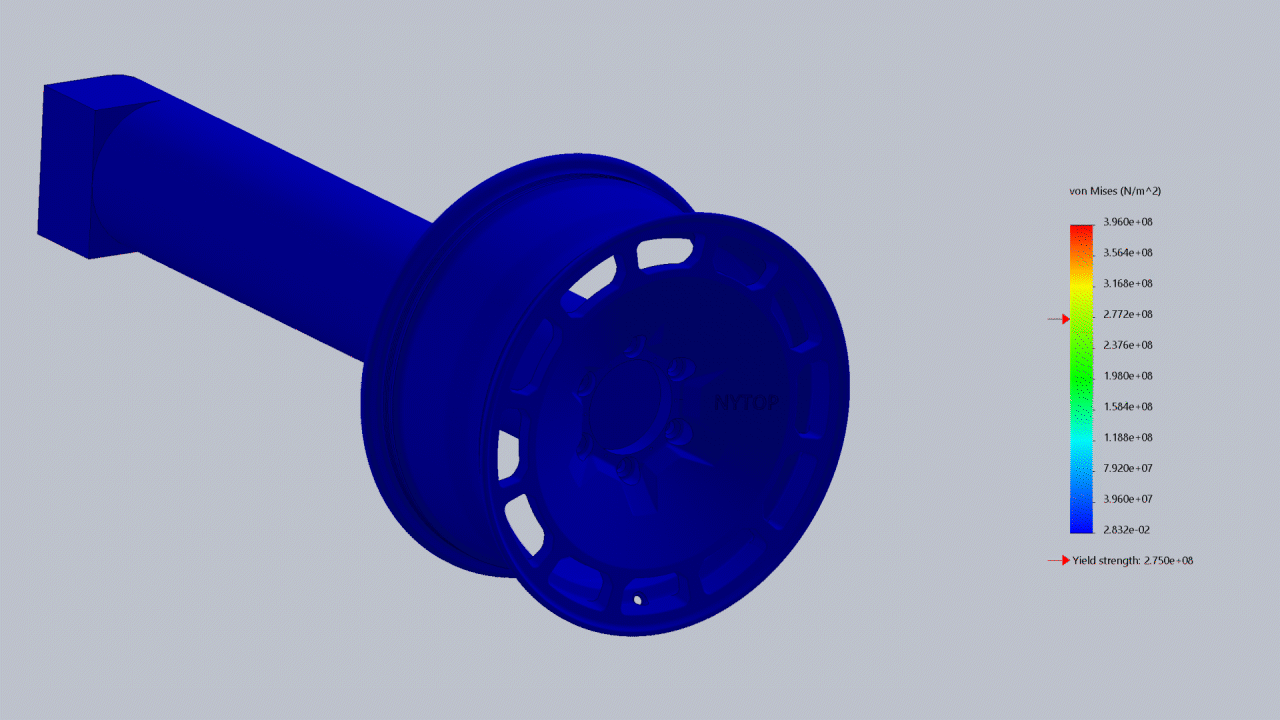

Max load rating 2,850 lbs. per wheel.
Wheel weight is around 23.5 lbs. per wheel.
Please inquire for custom offset, custom decal requests, and lead times.
