Product Weight (Pair): 150 lbs.

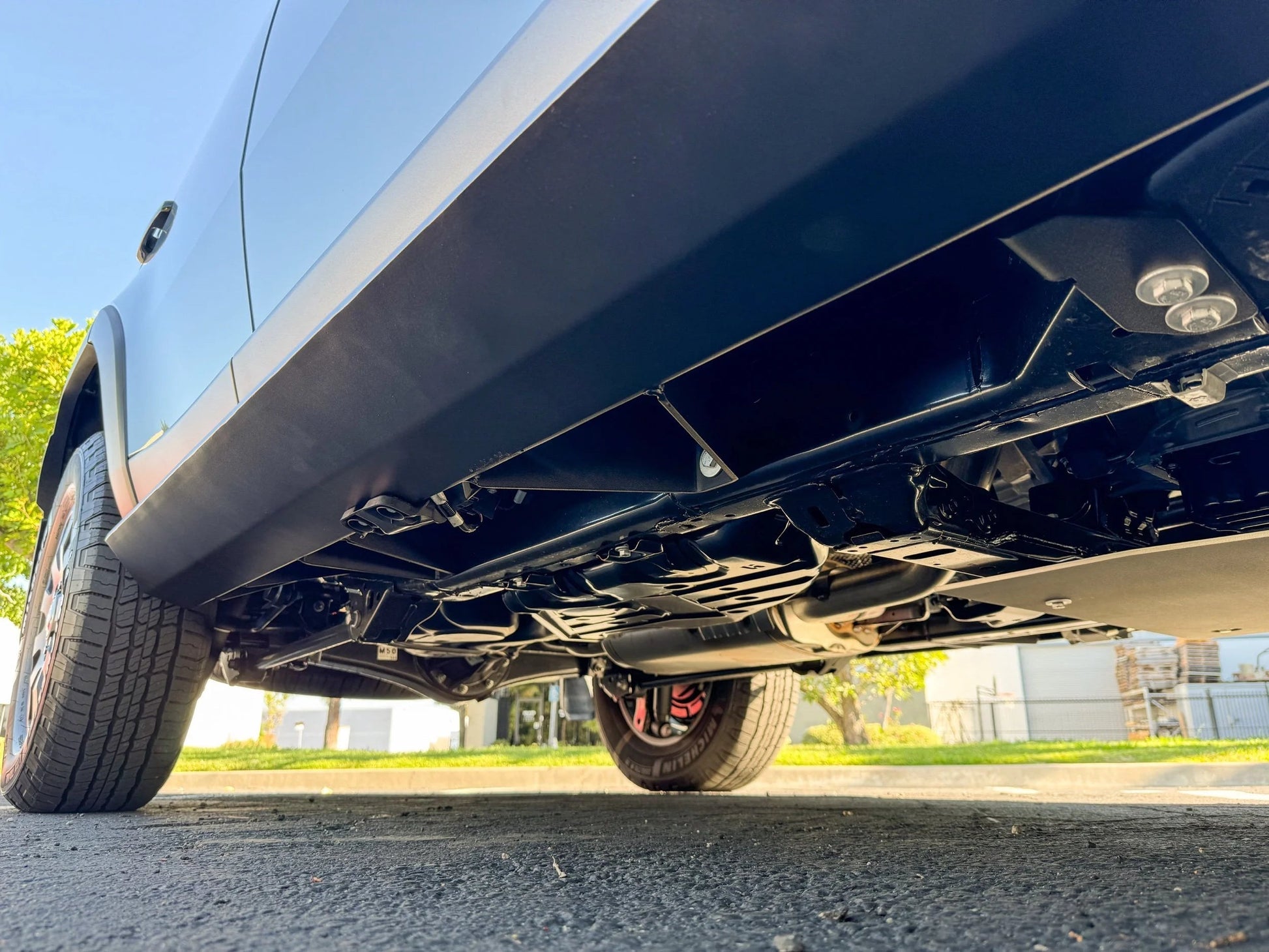

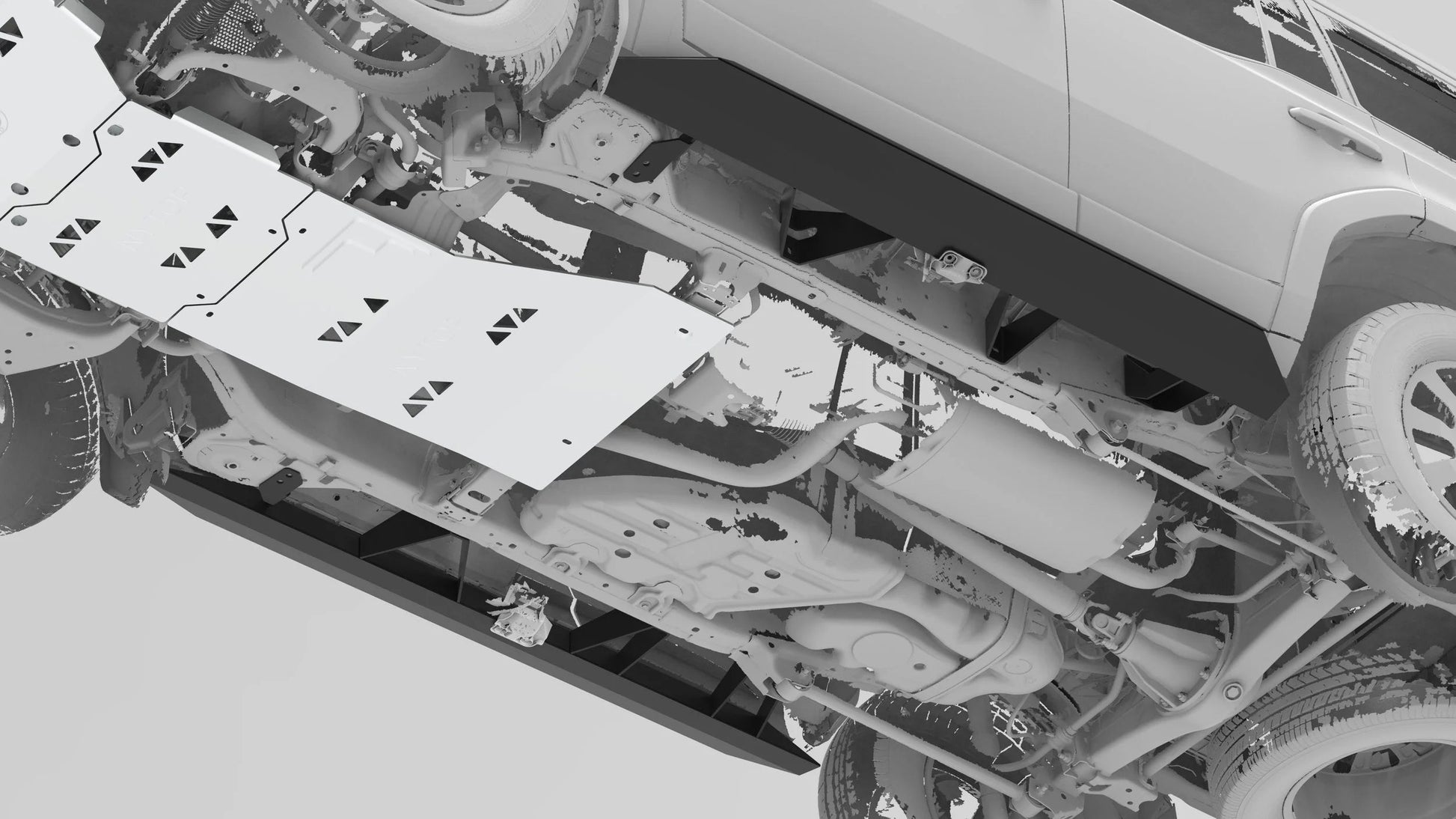

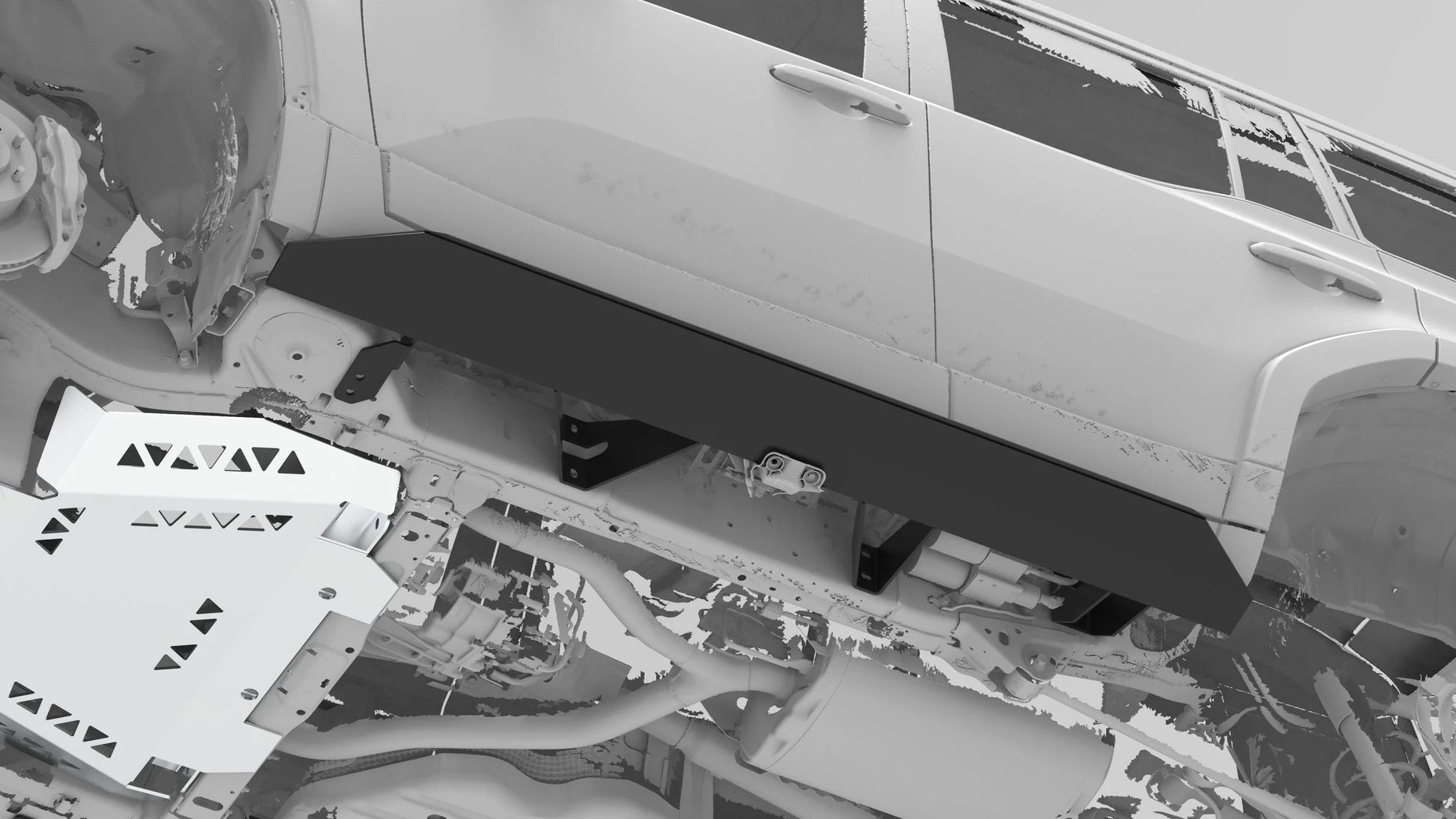

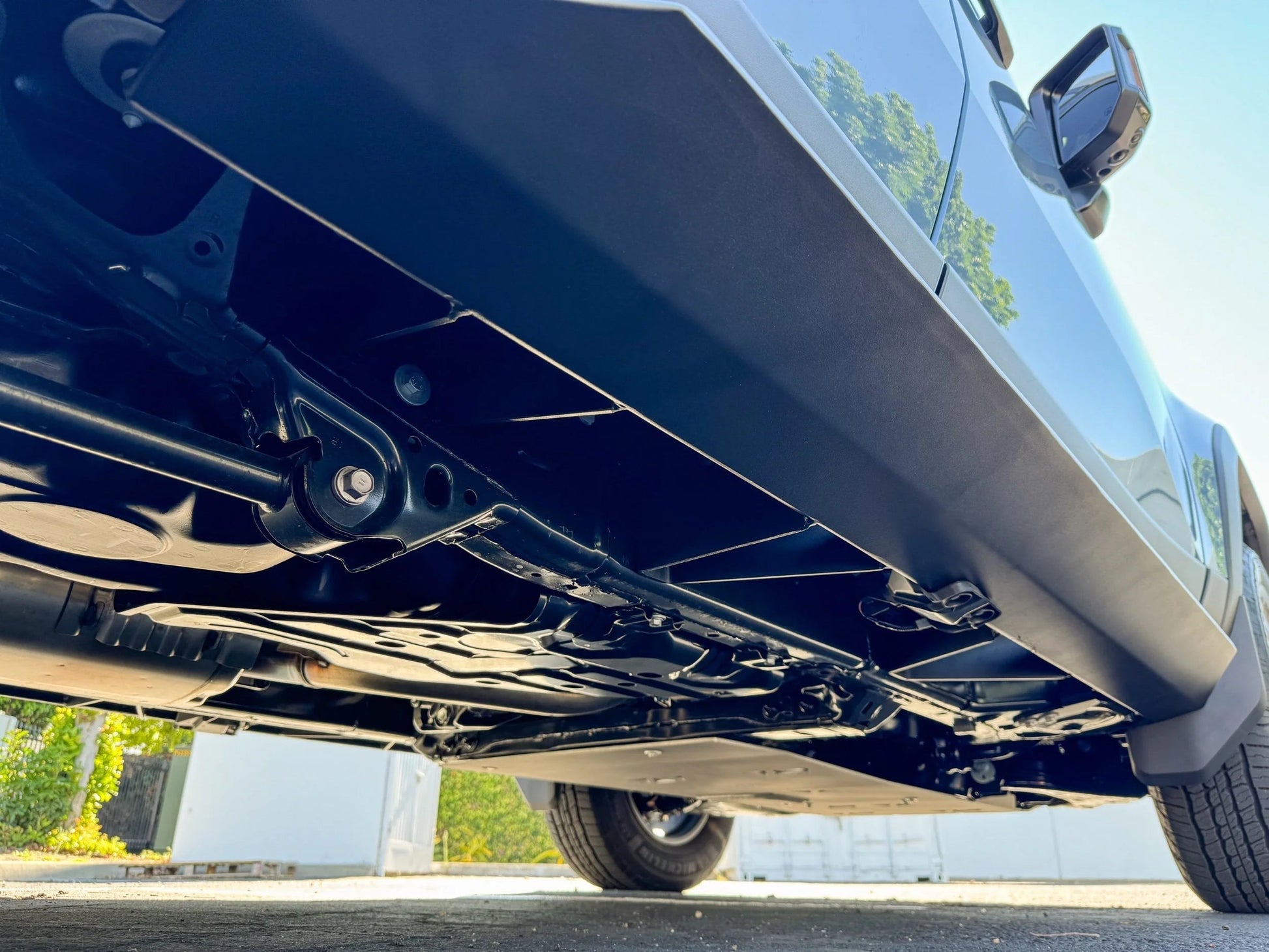

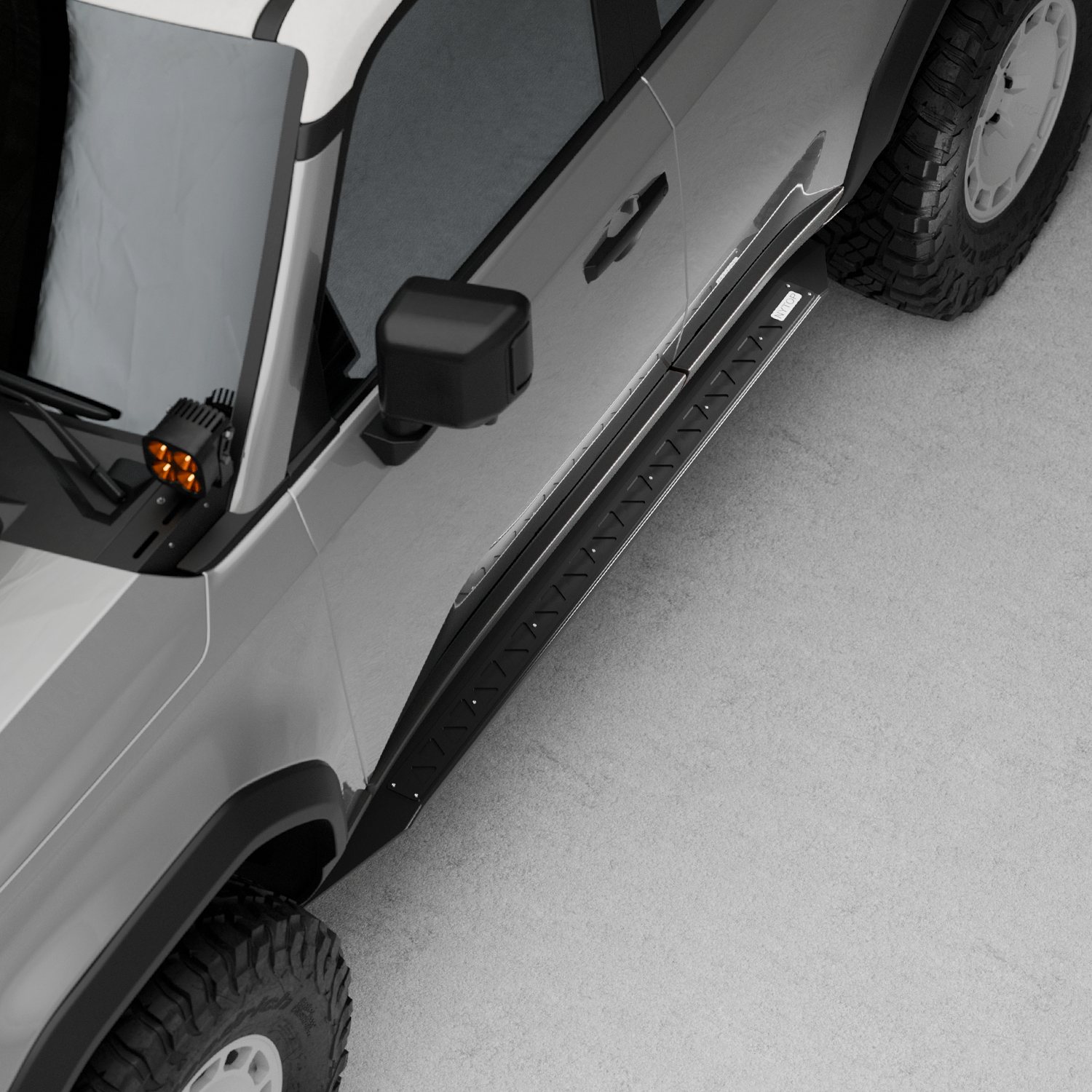

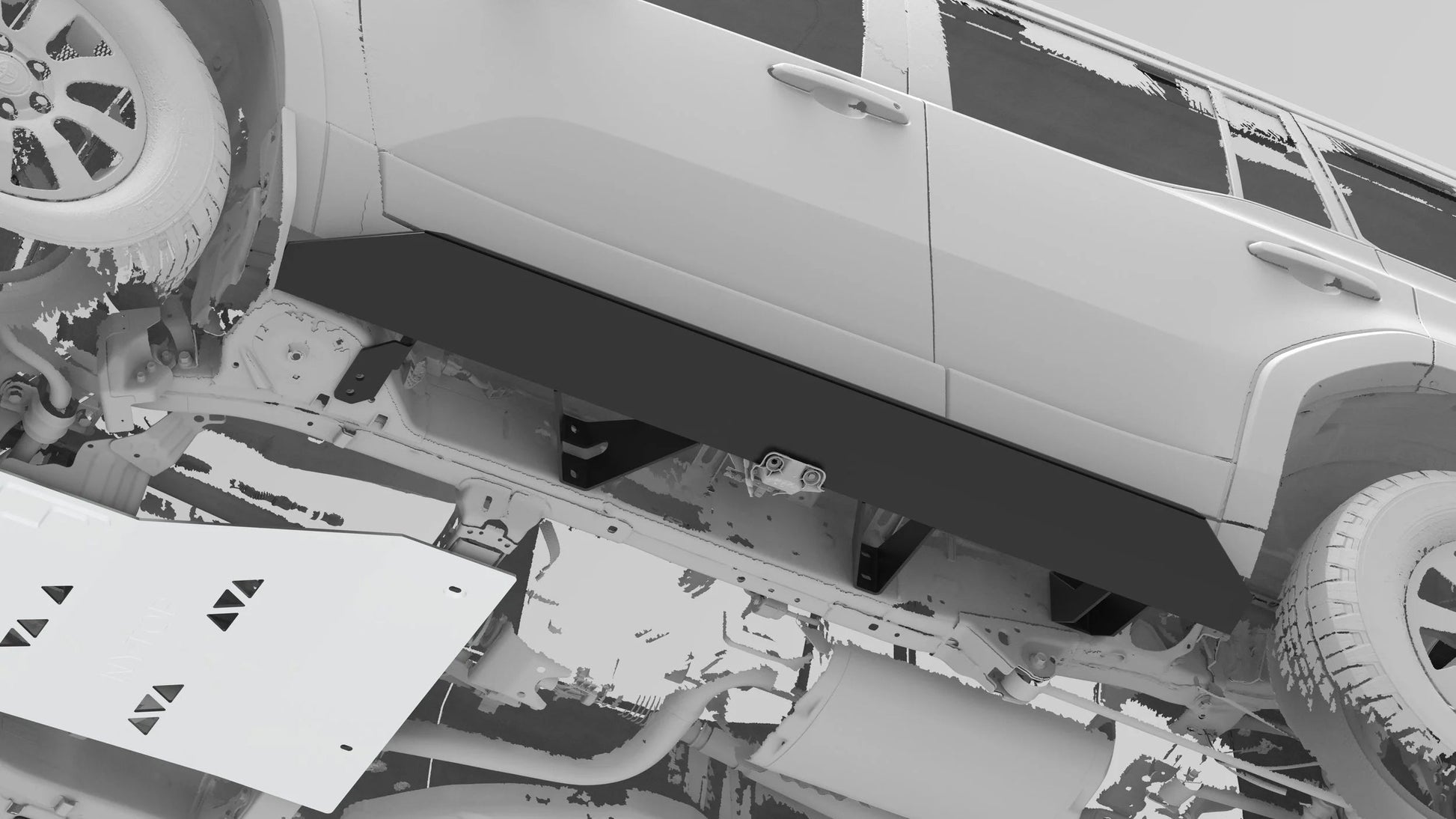

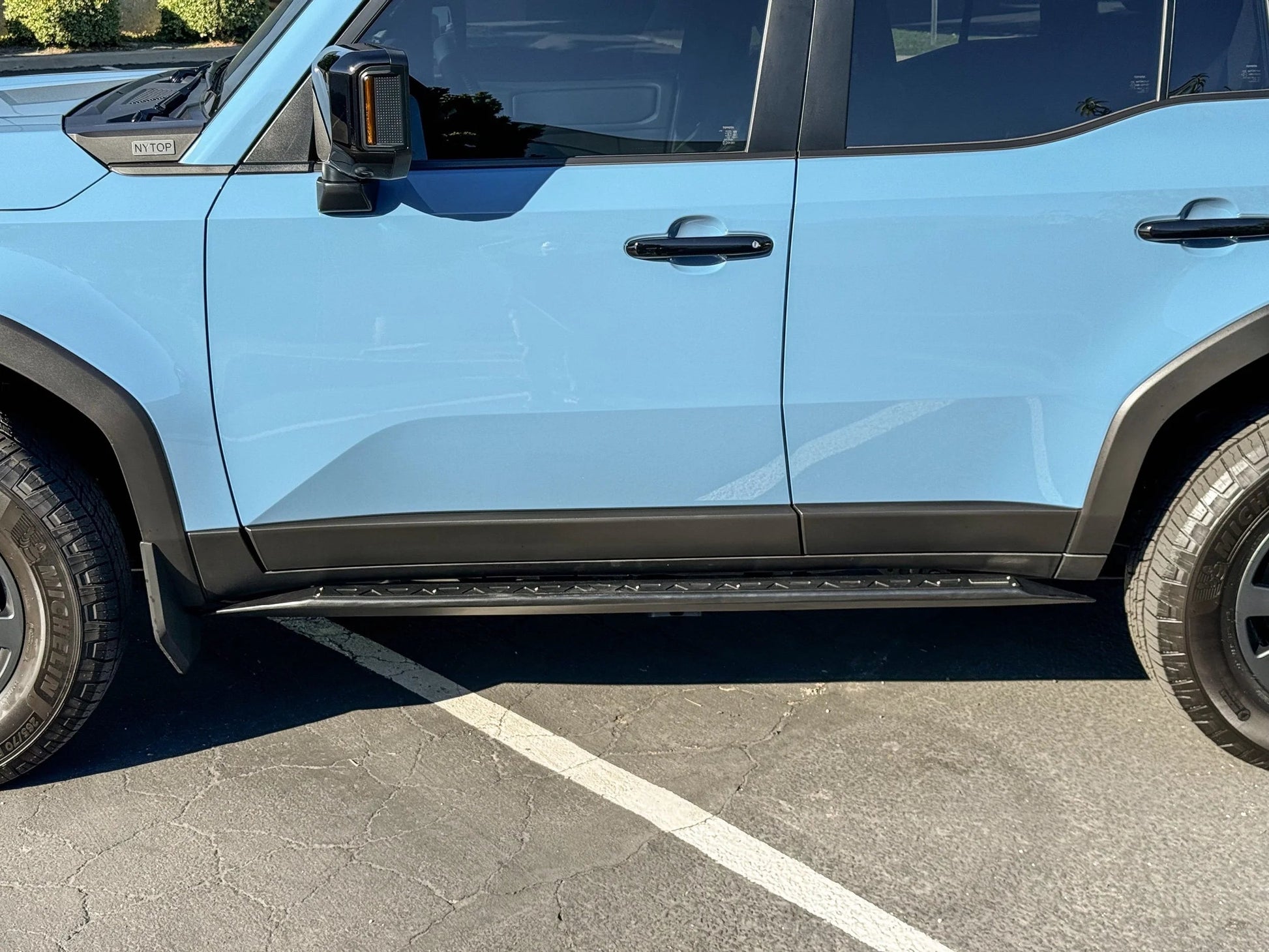

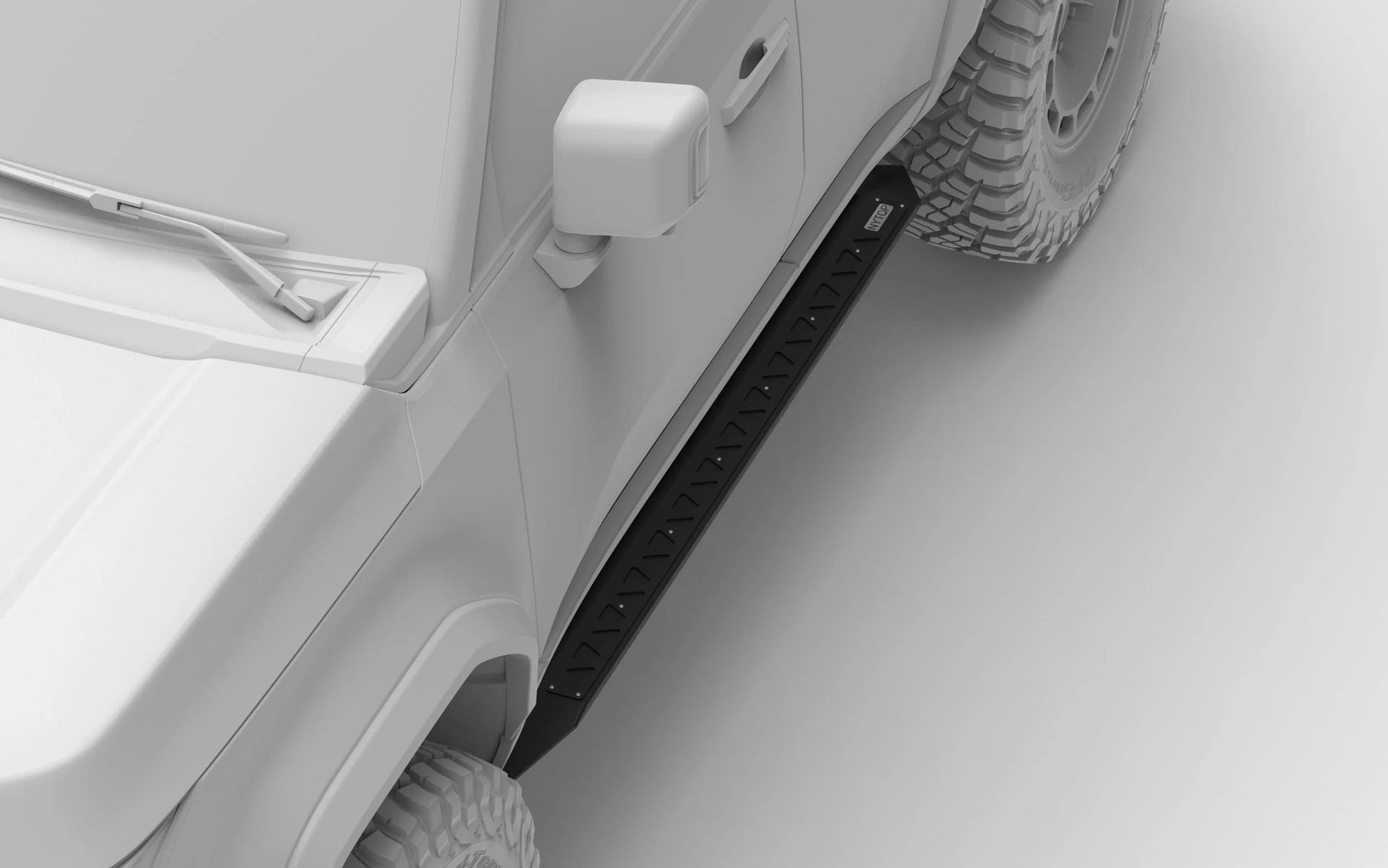

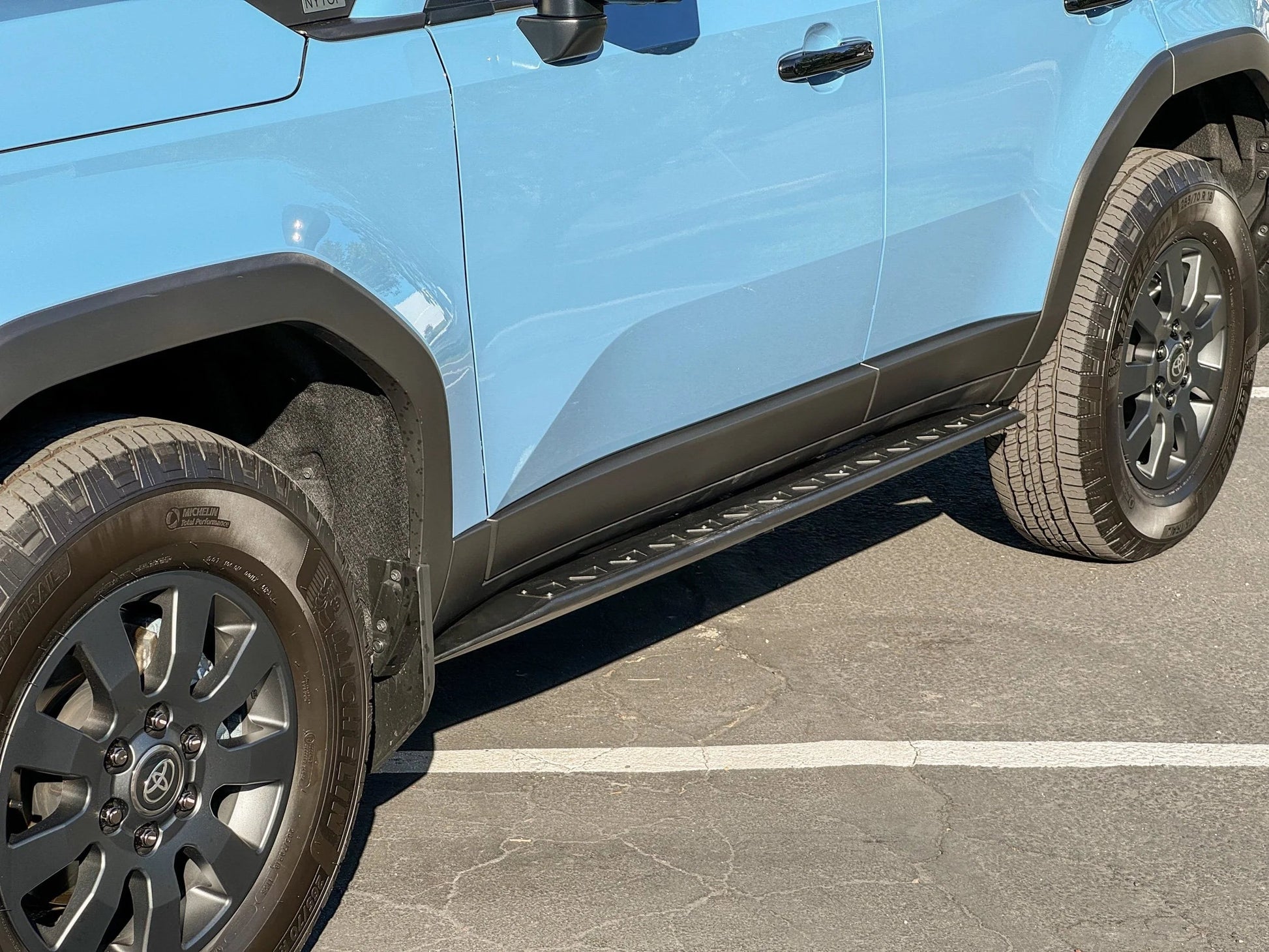

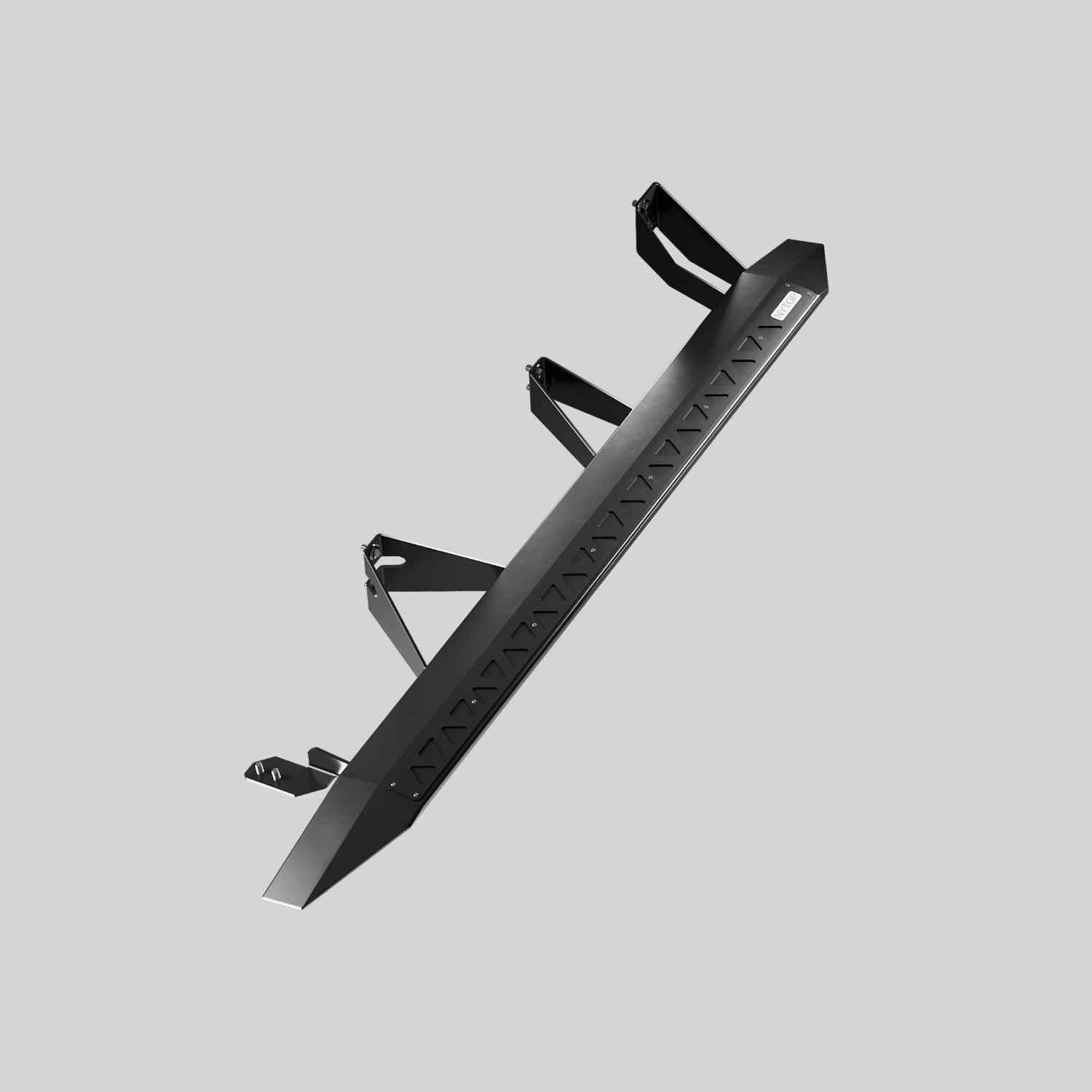

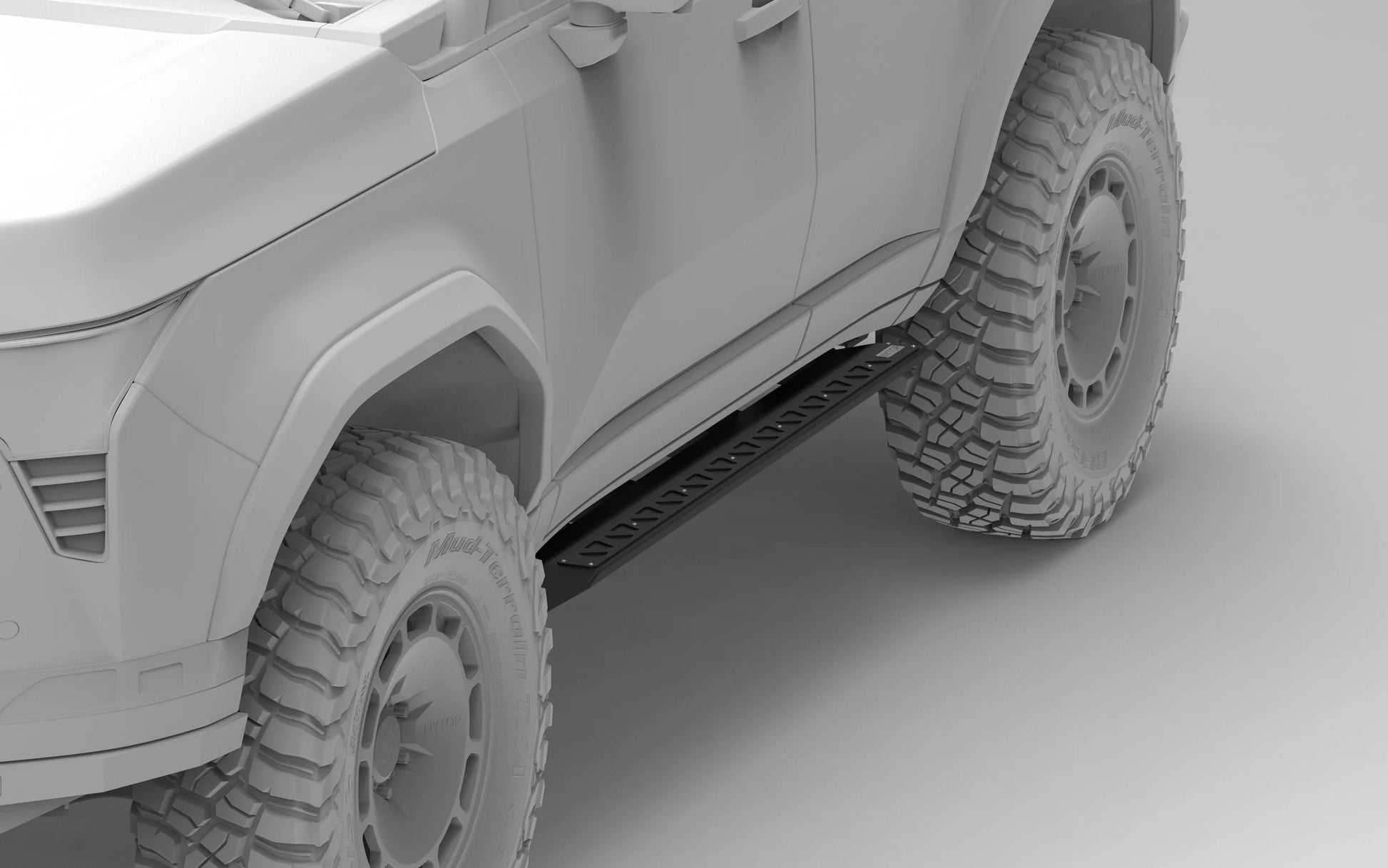

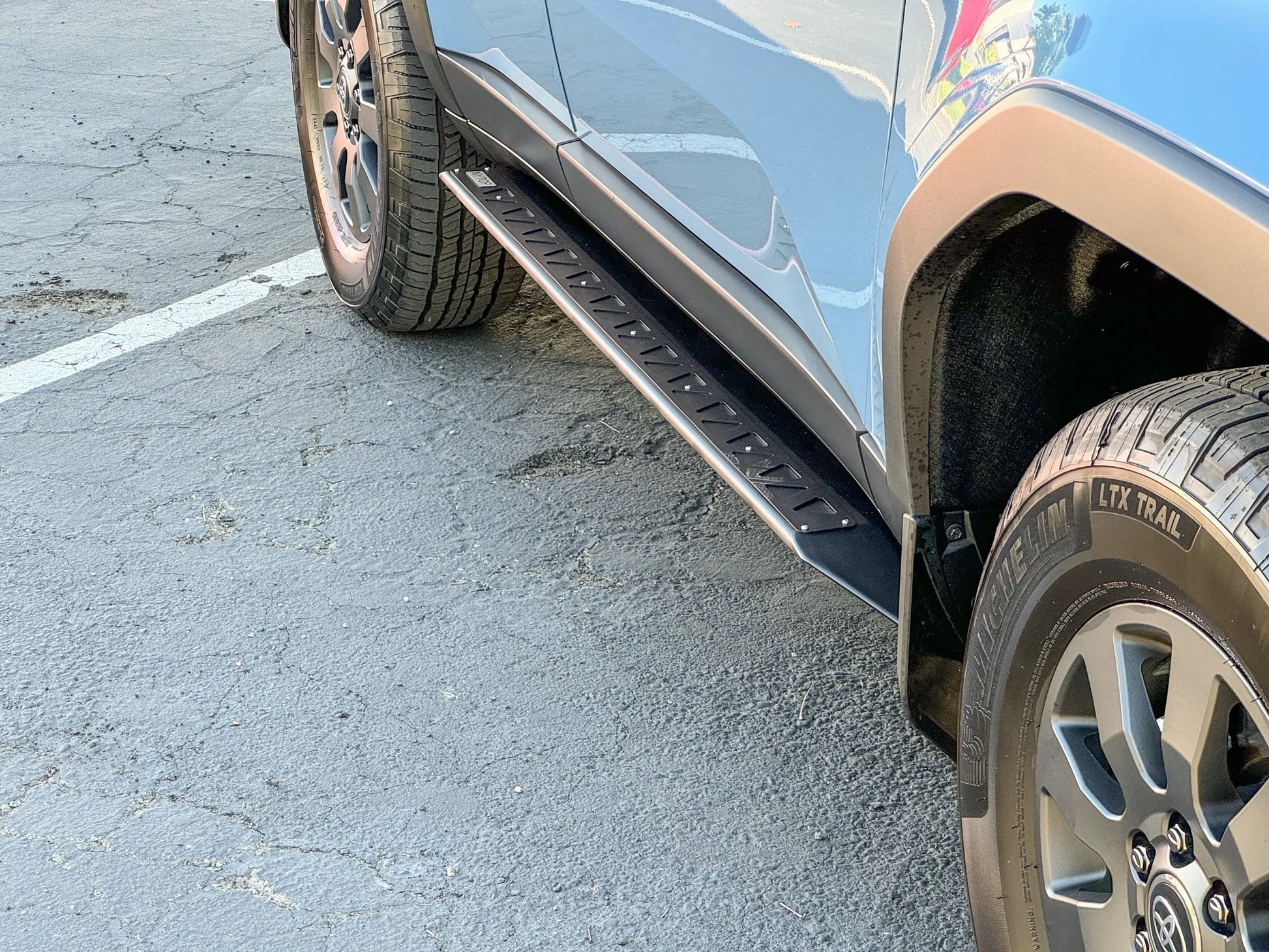

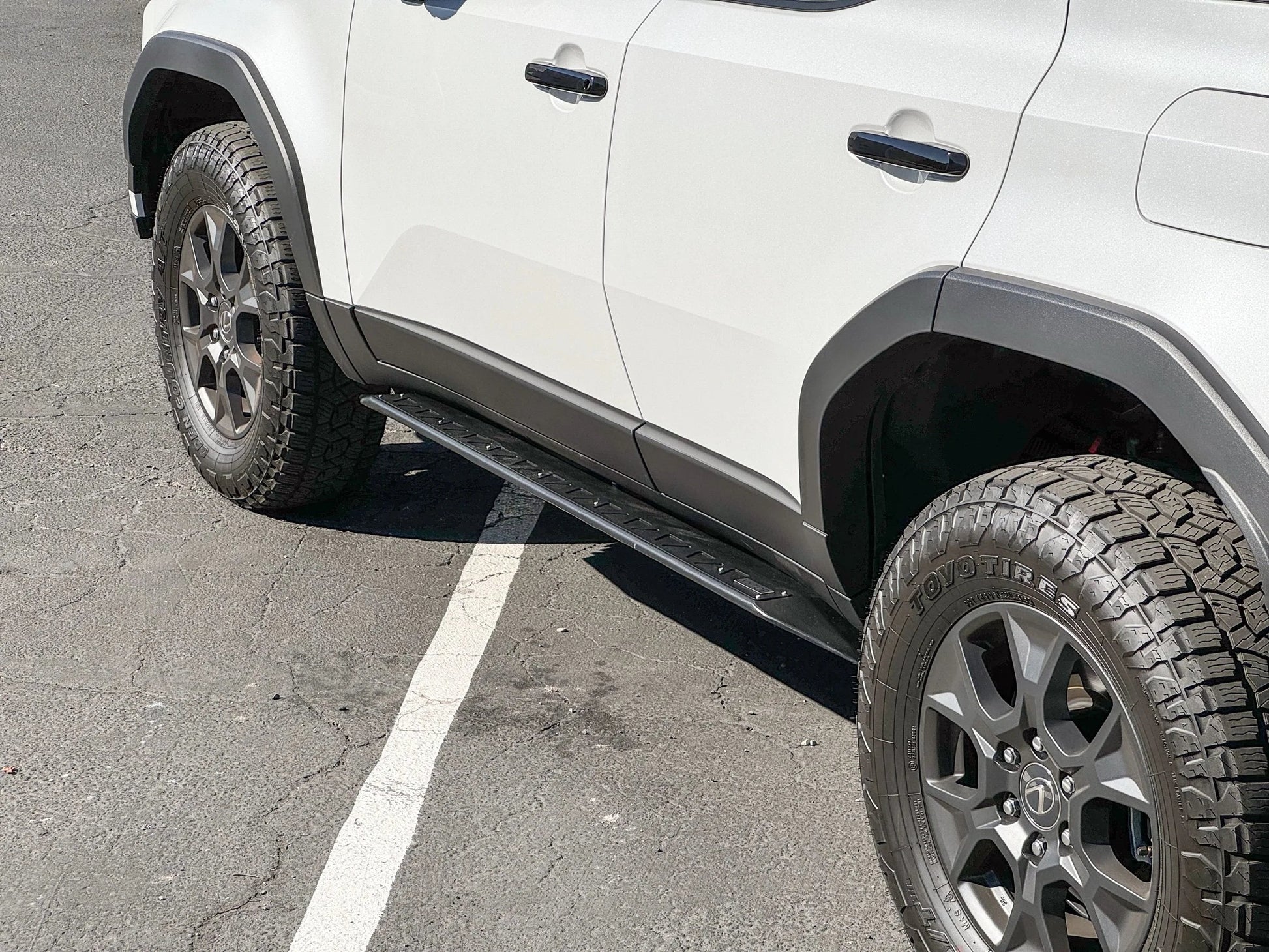

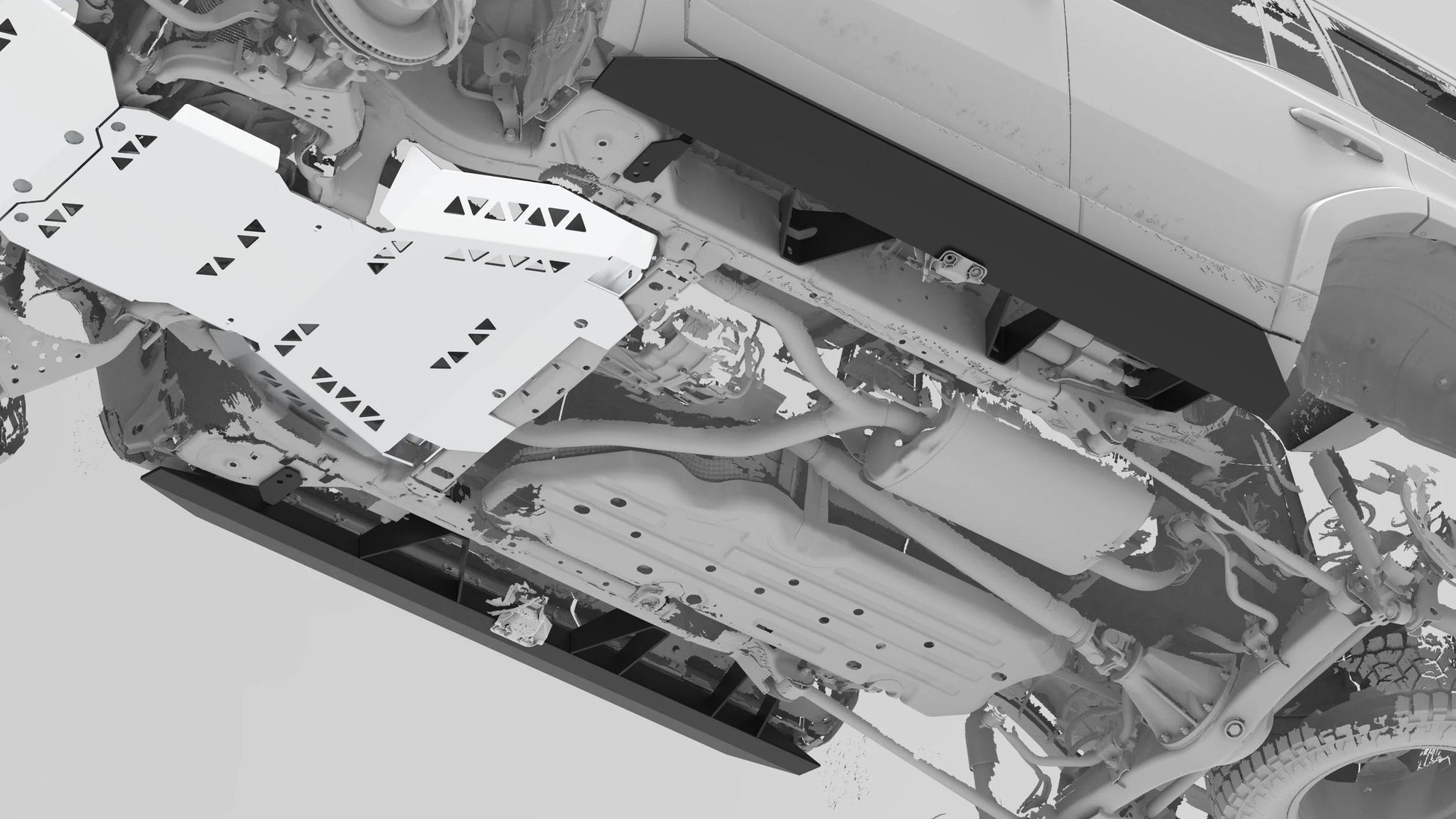

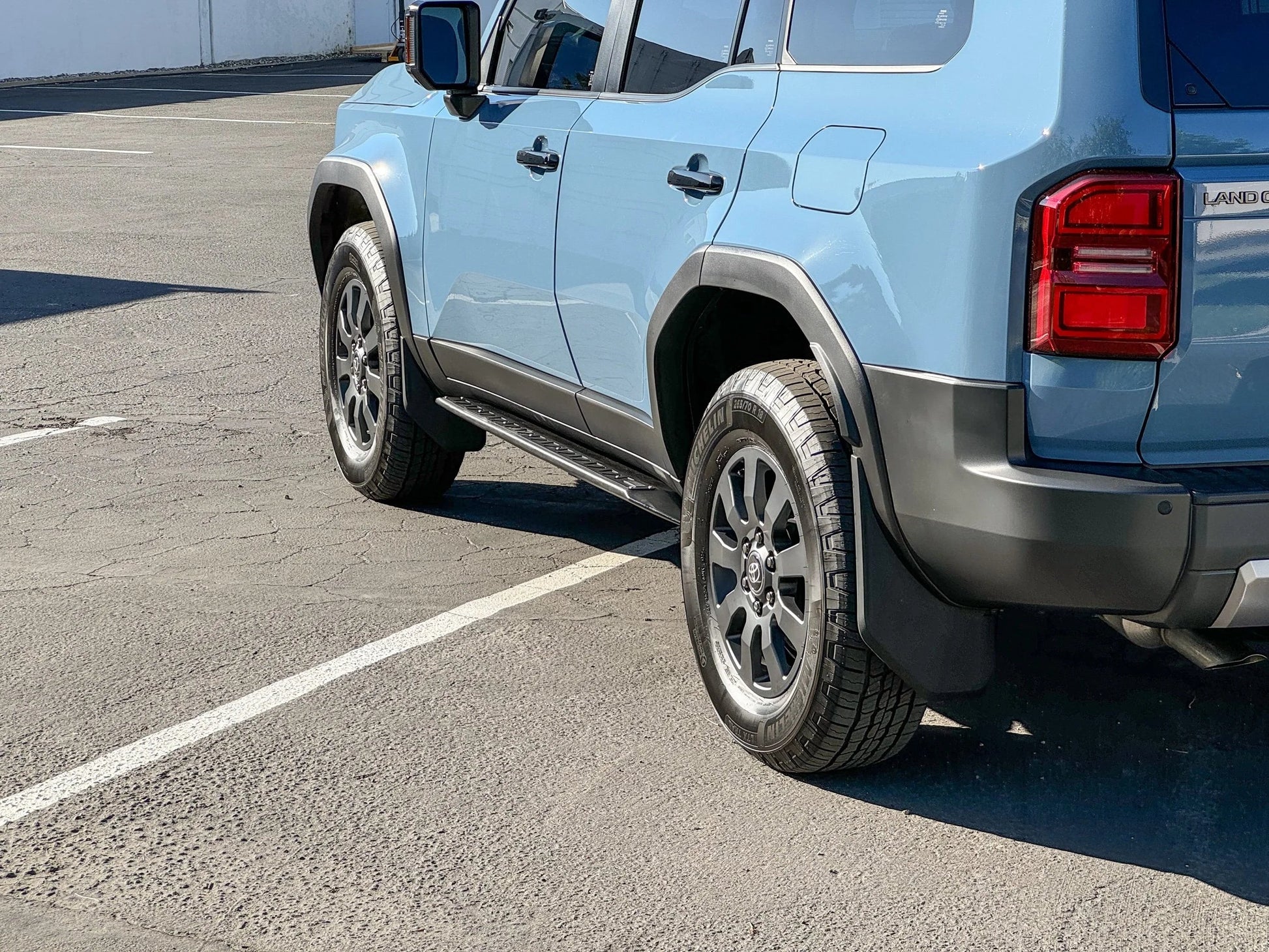

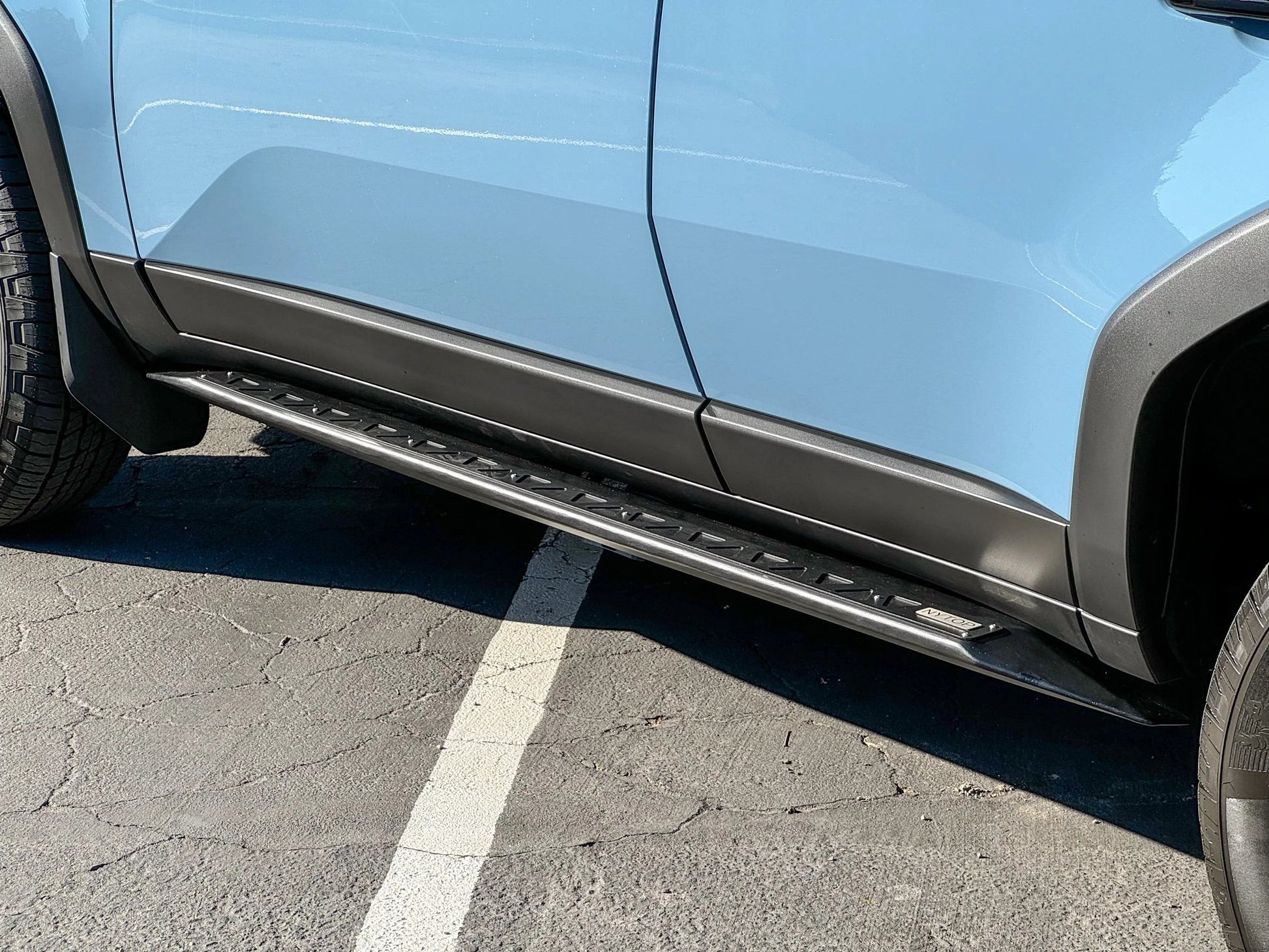

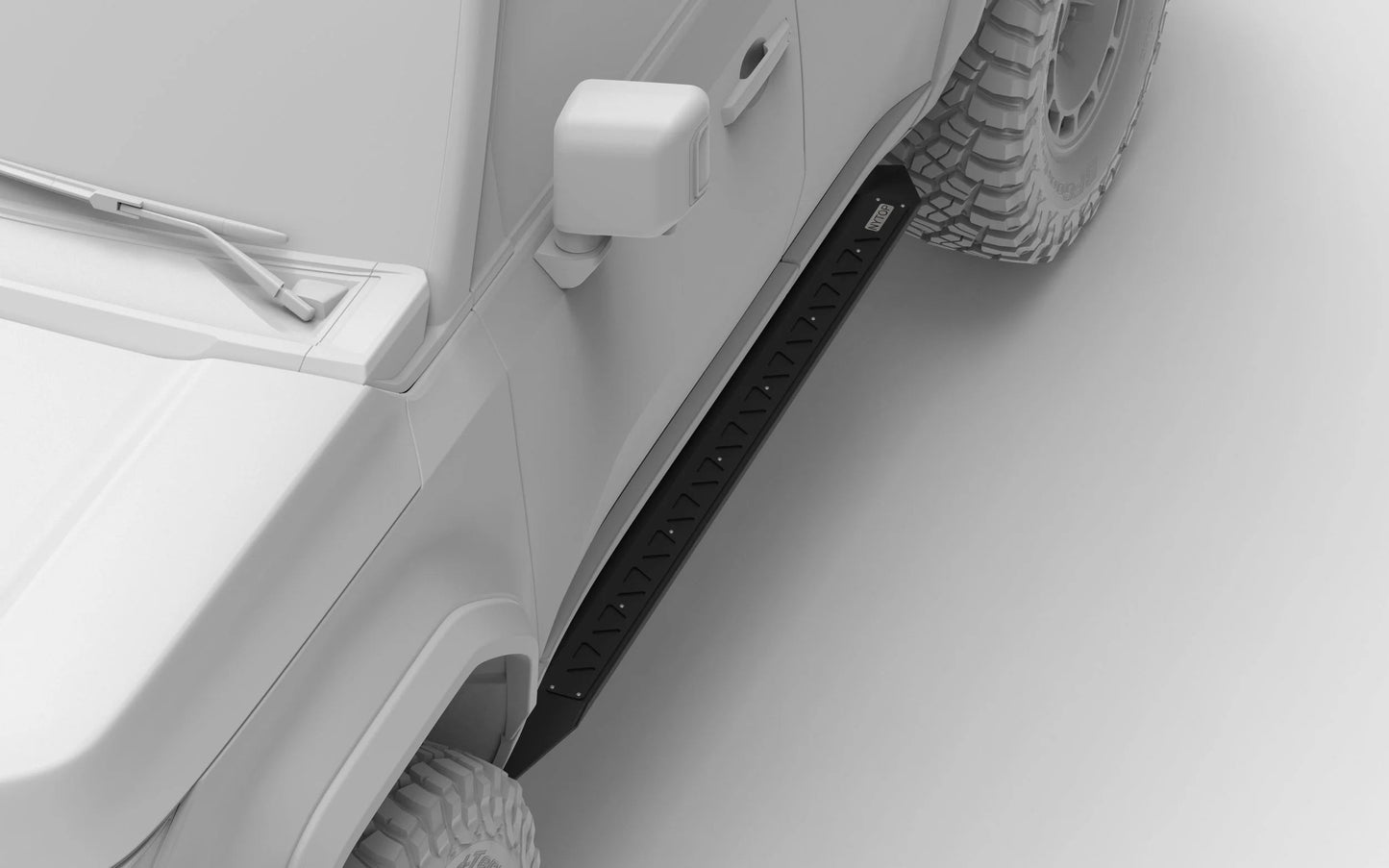

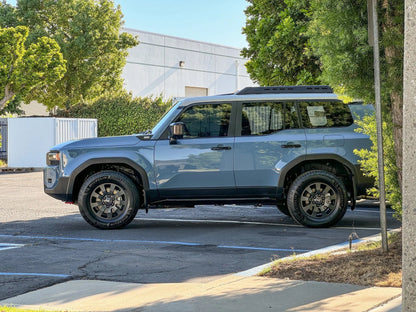

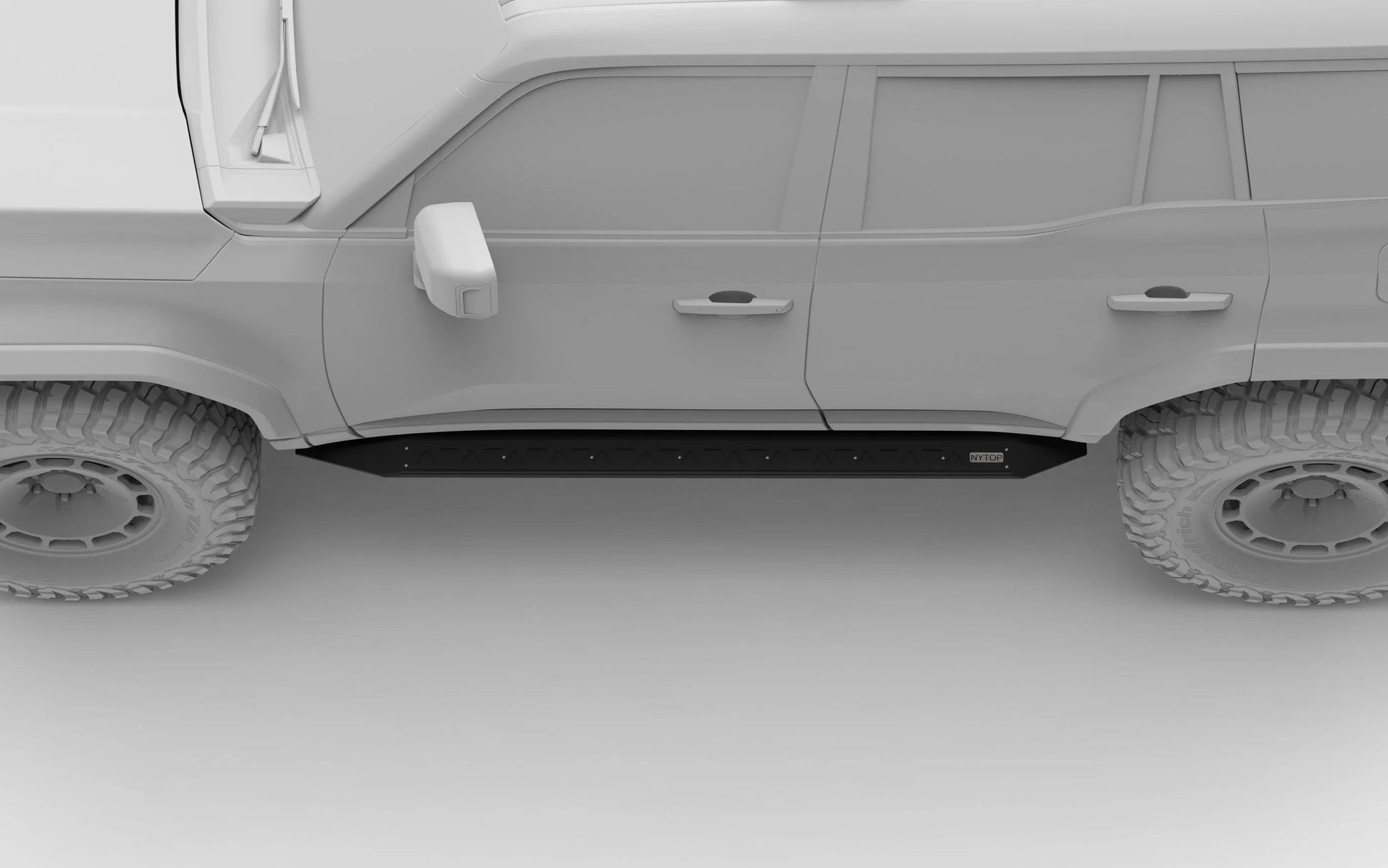

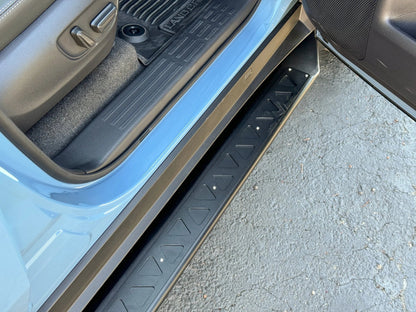

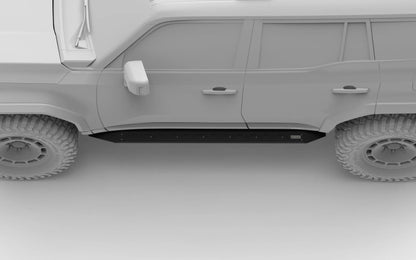

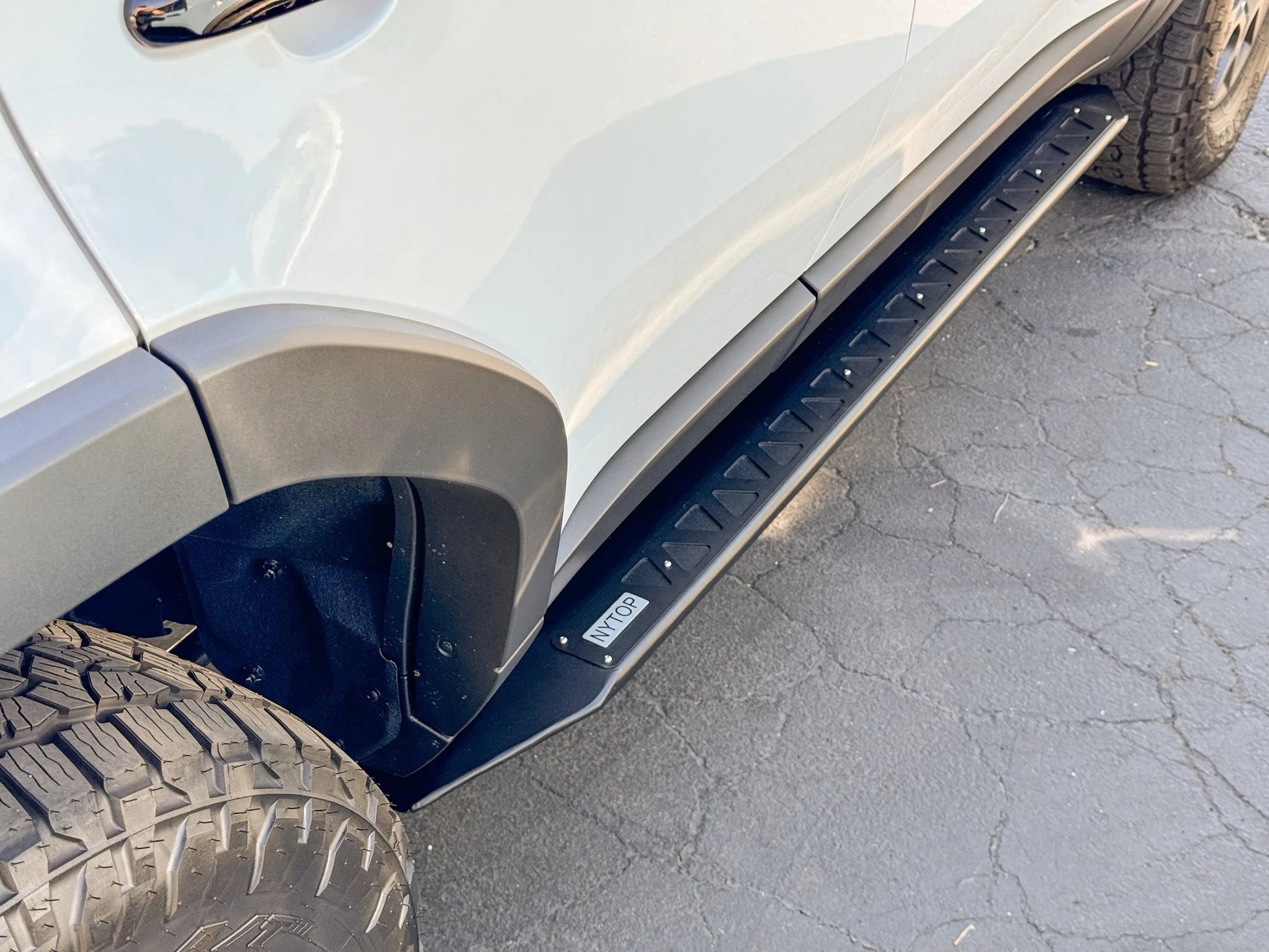

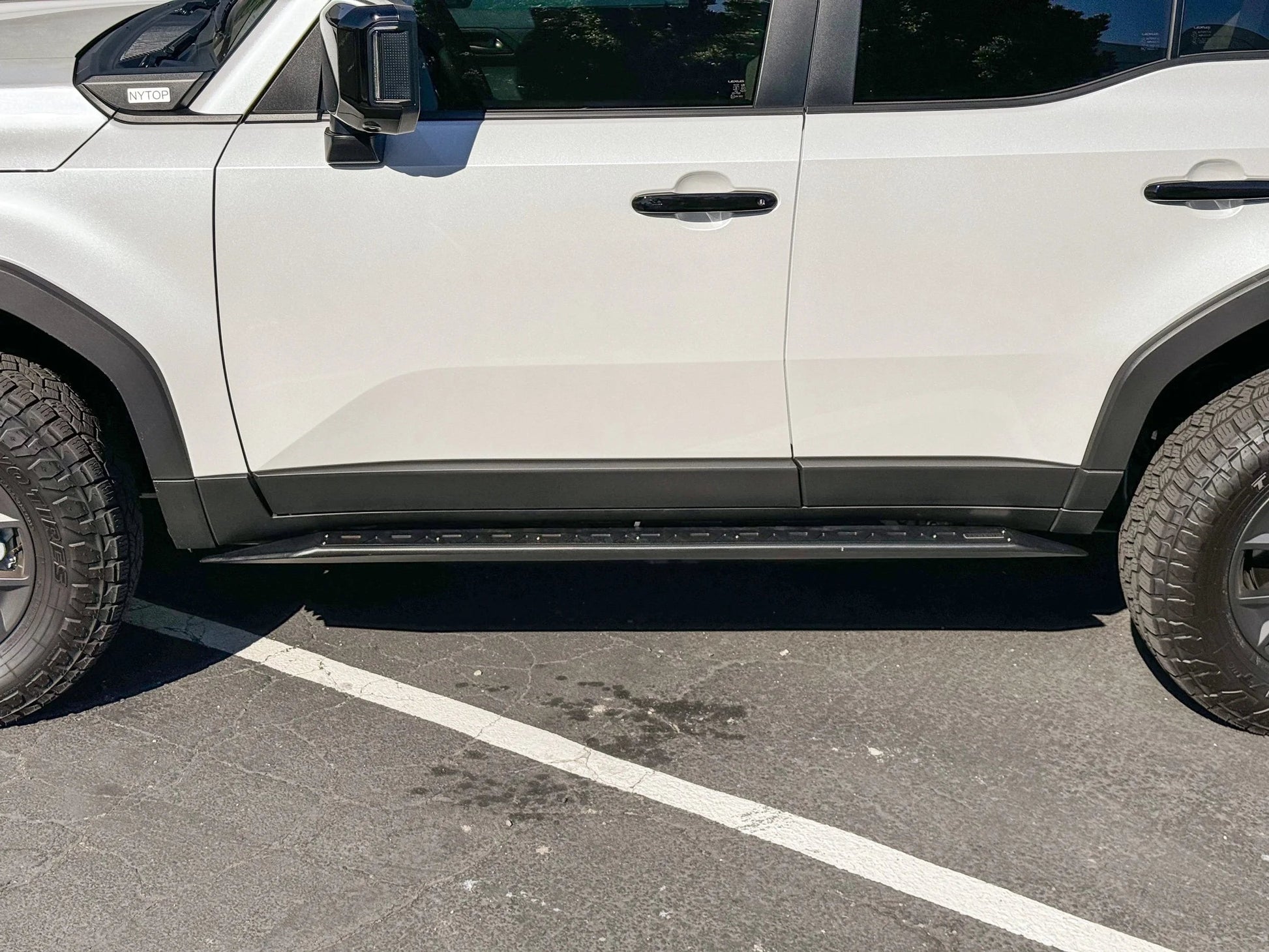

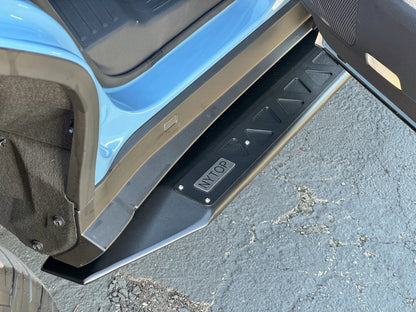

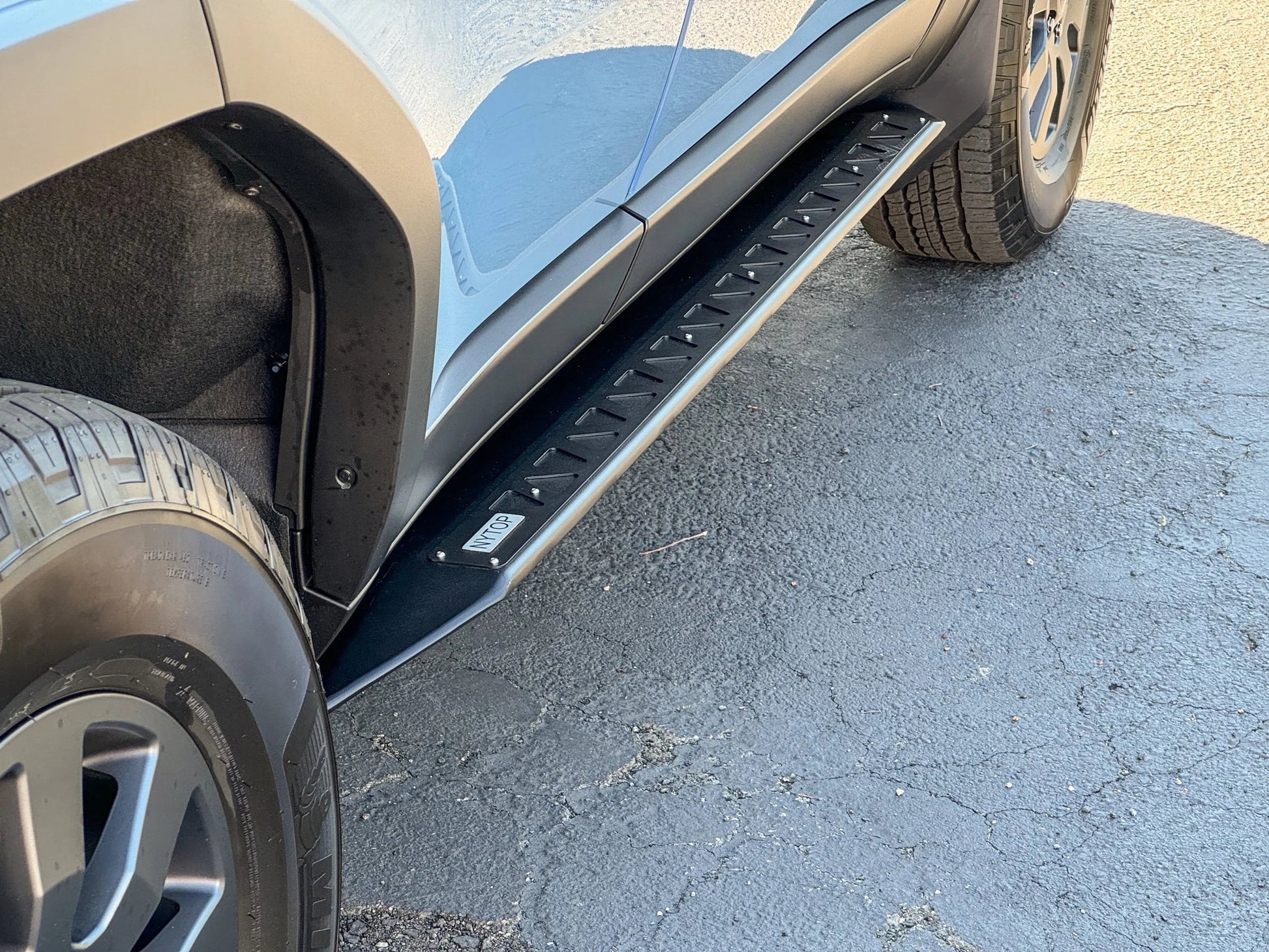

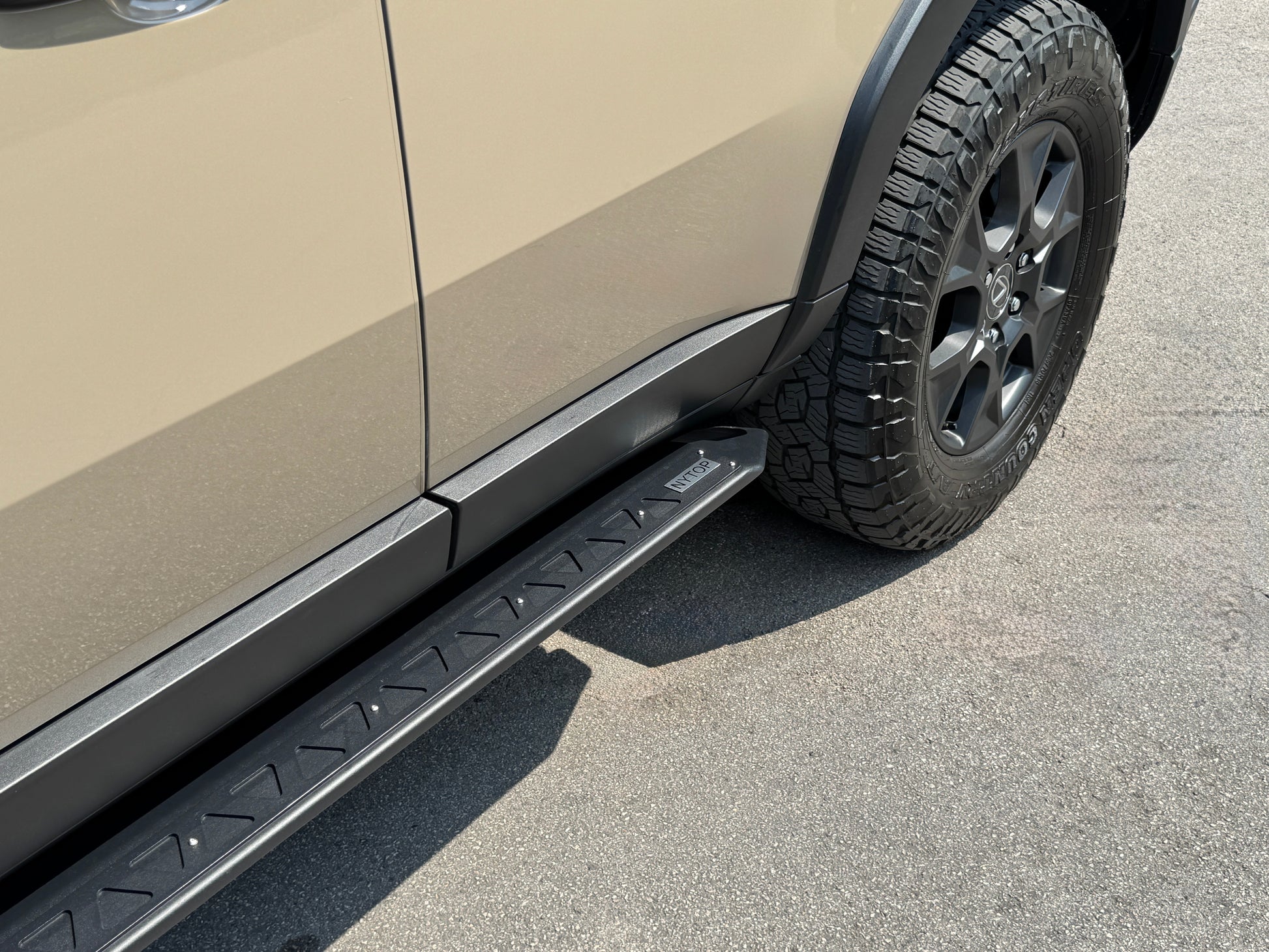

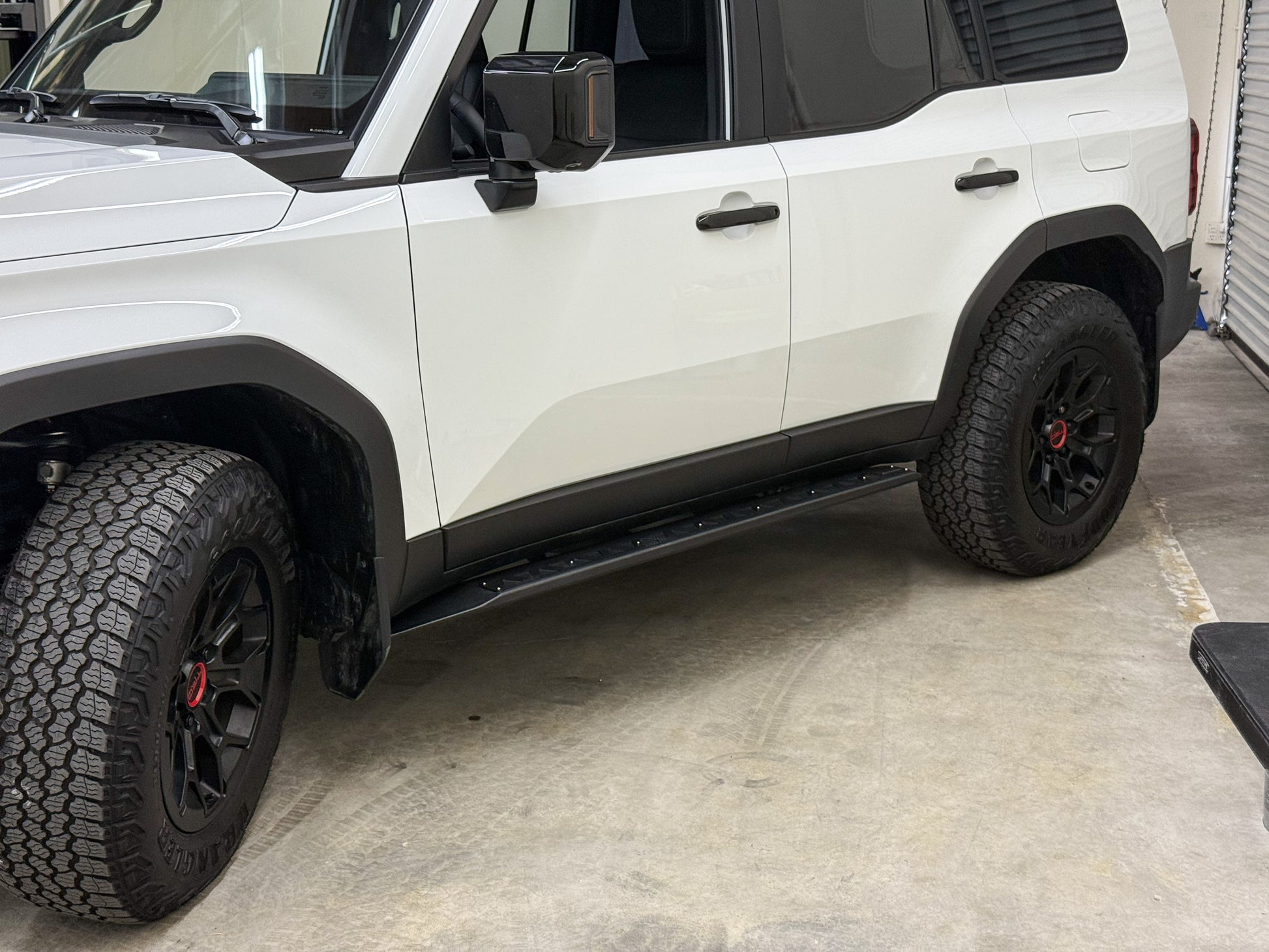

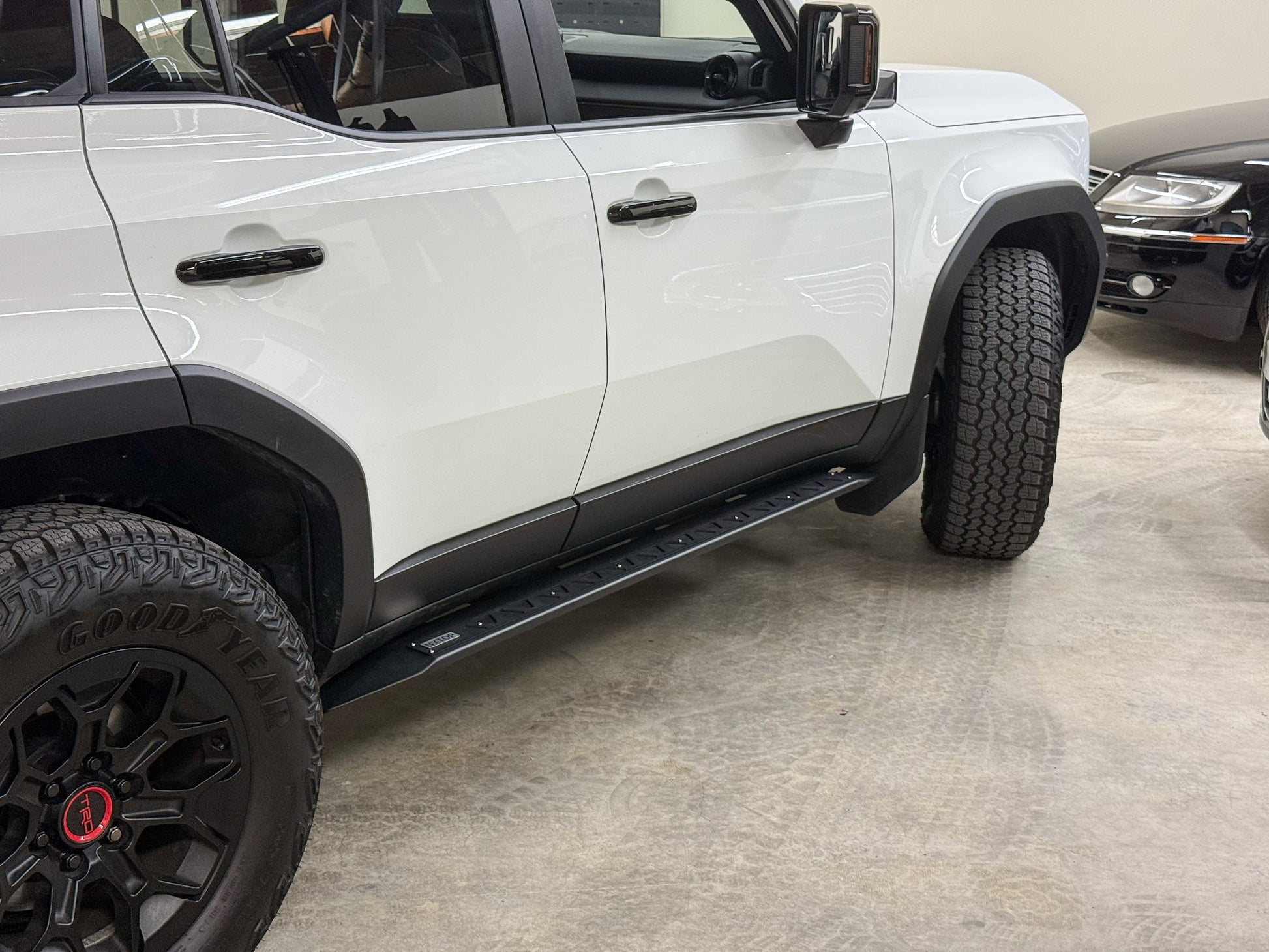

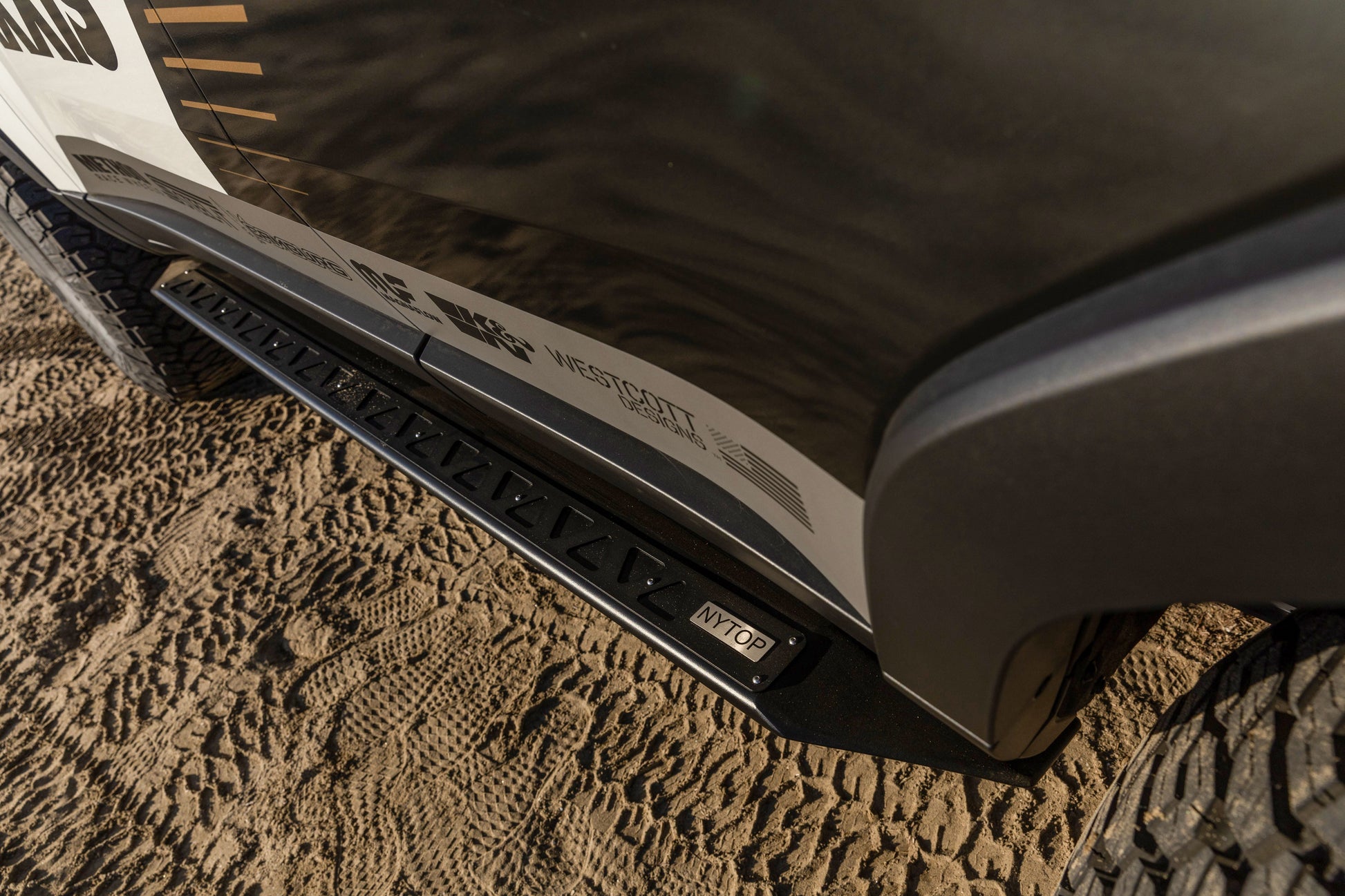

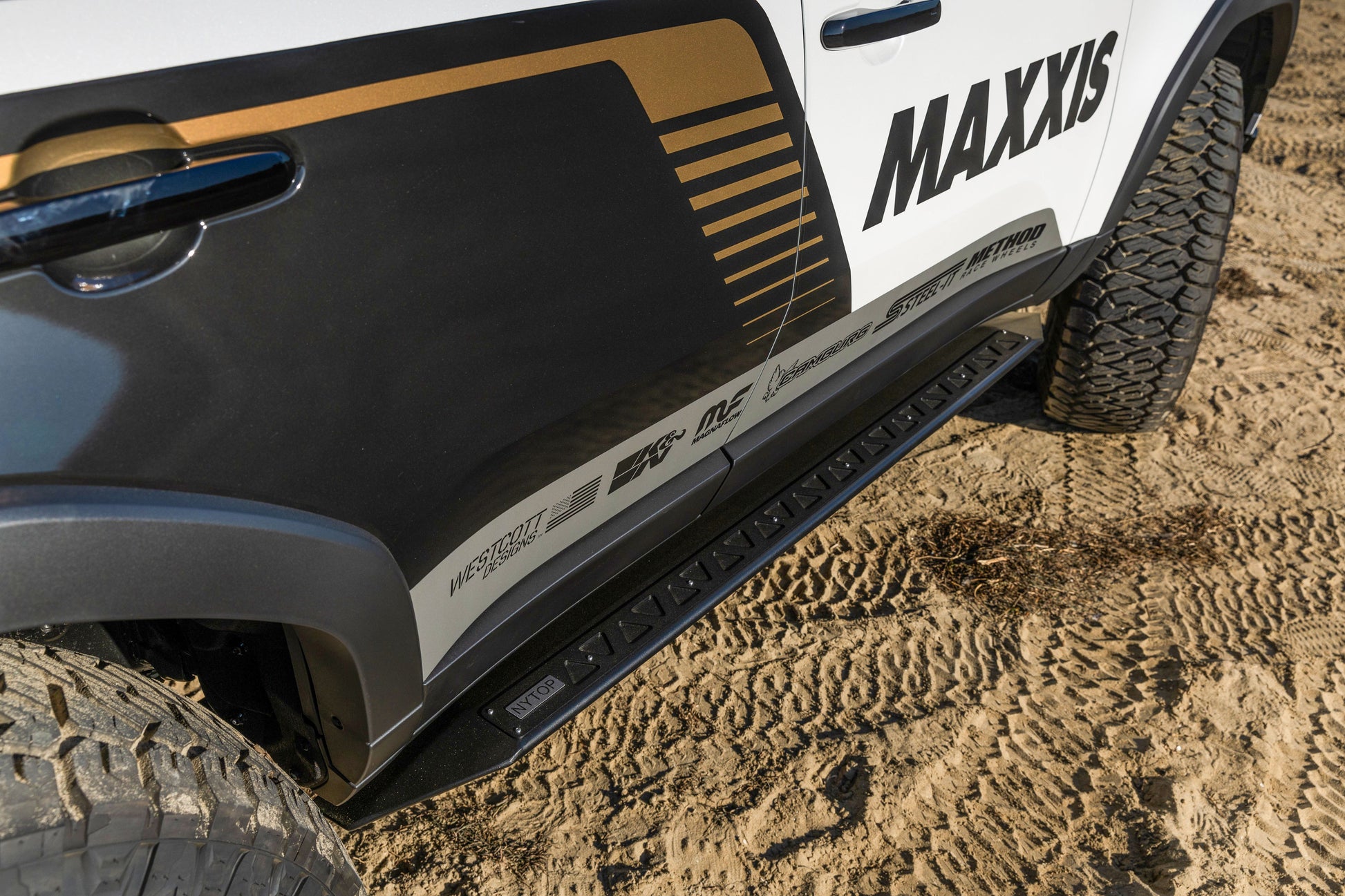

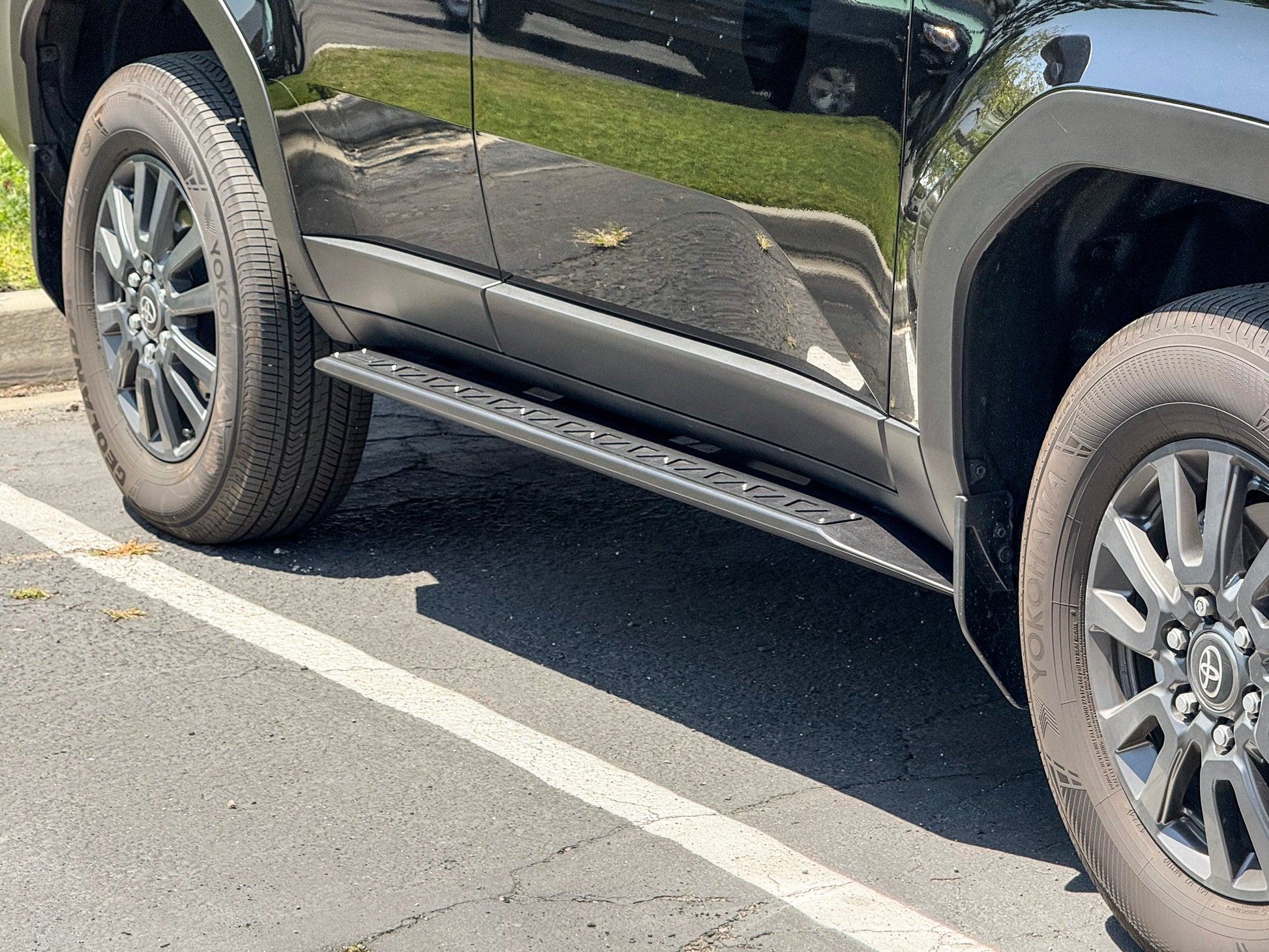

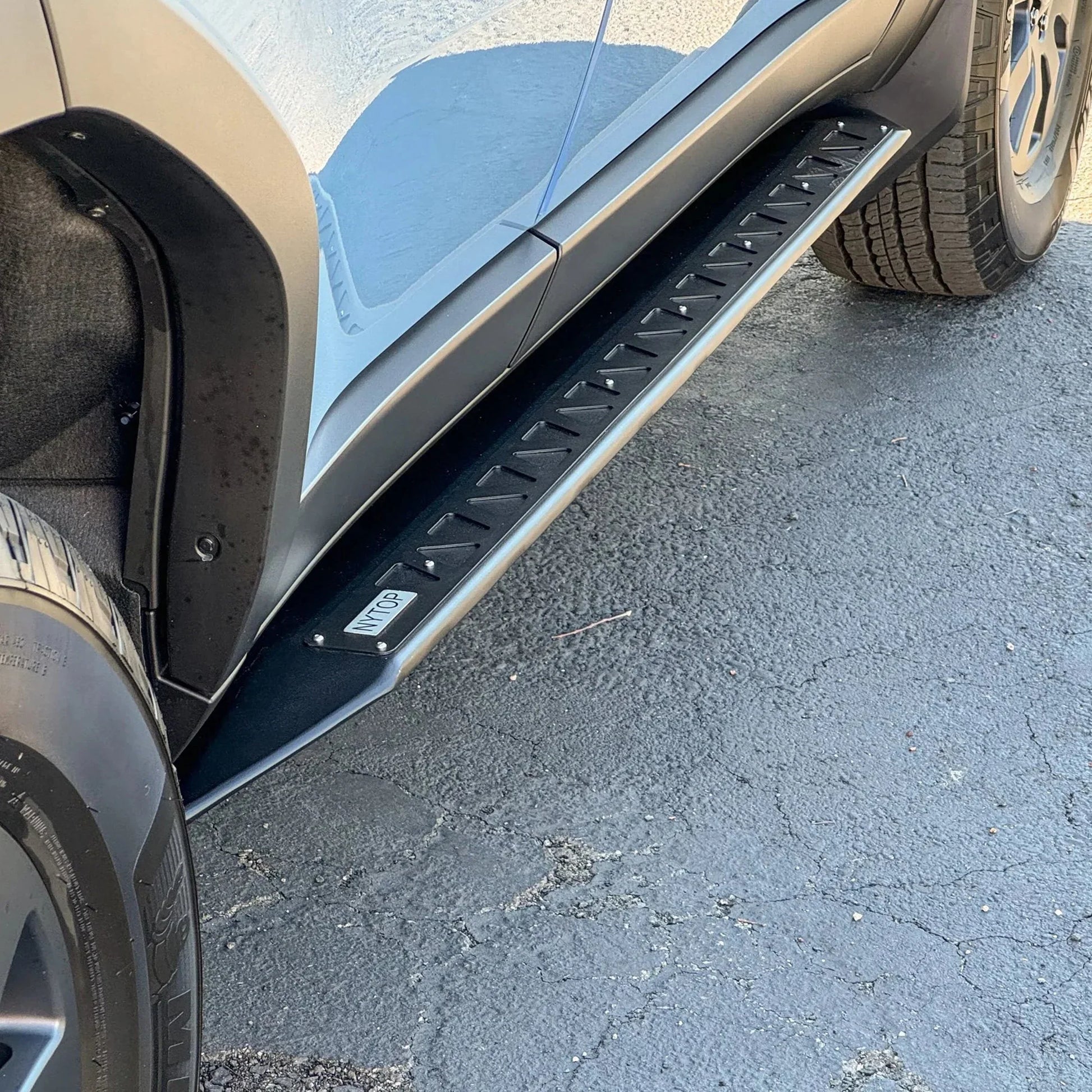

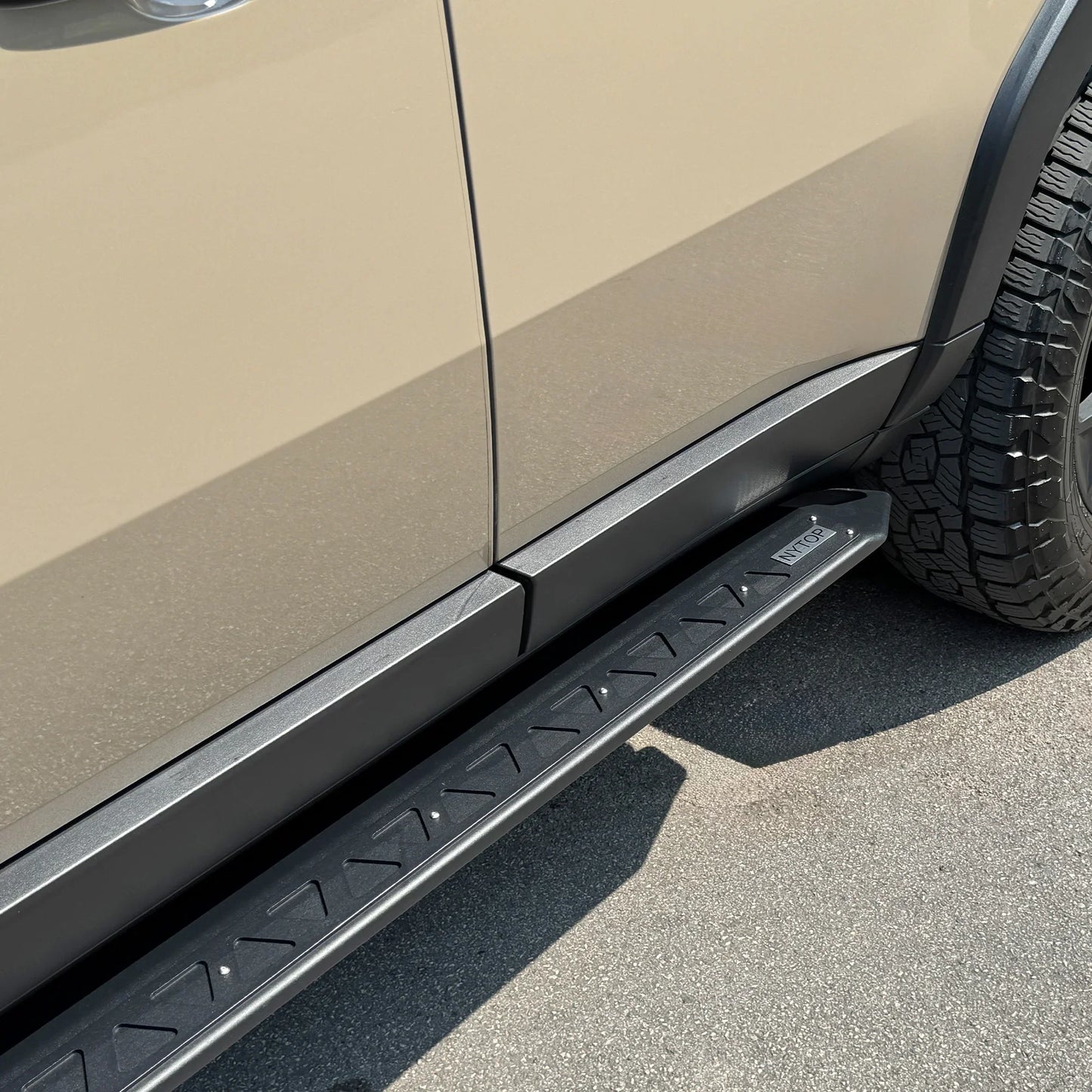

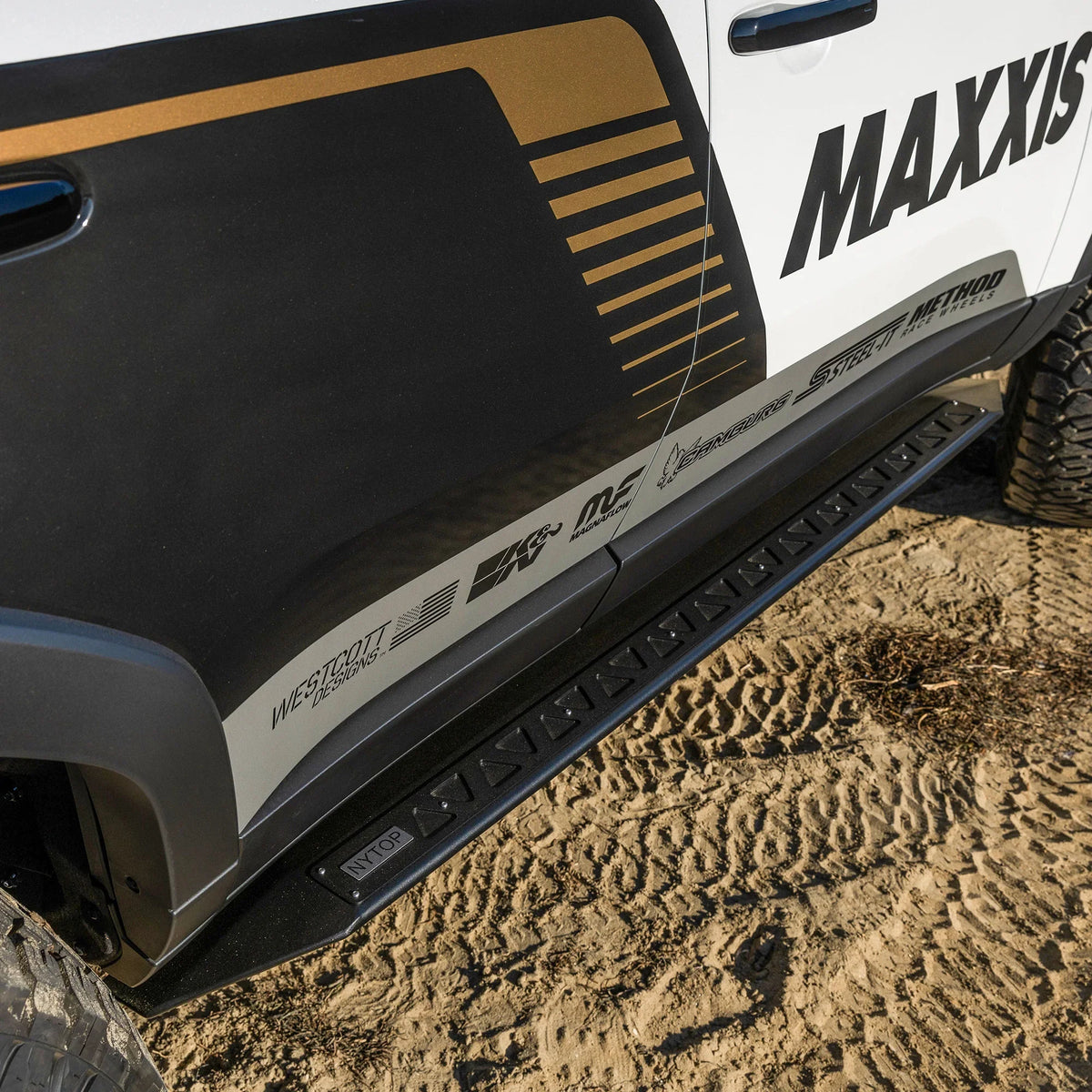

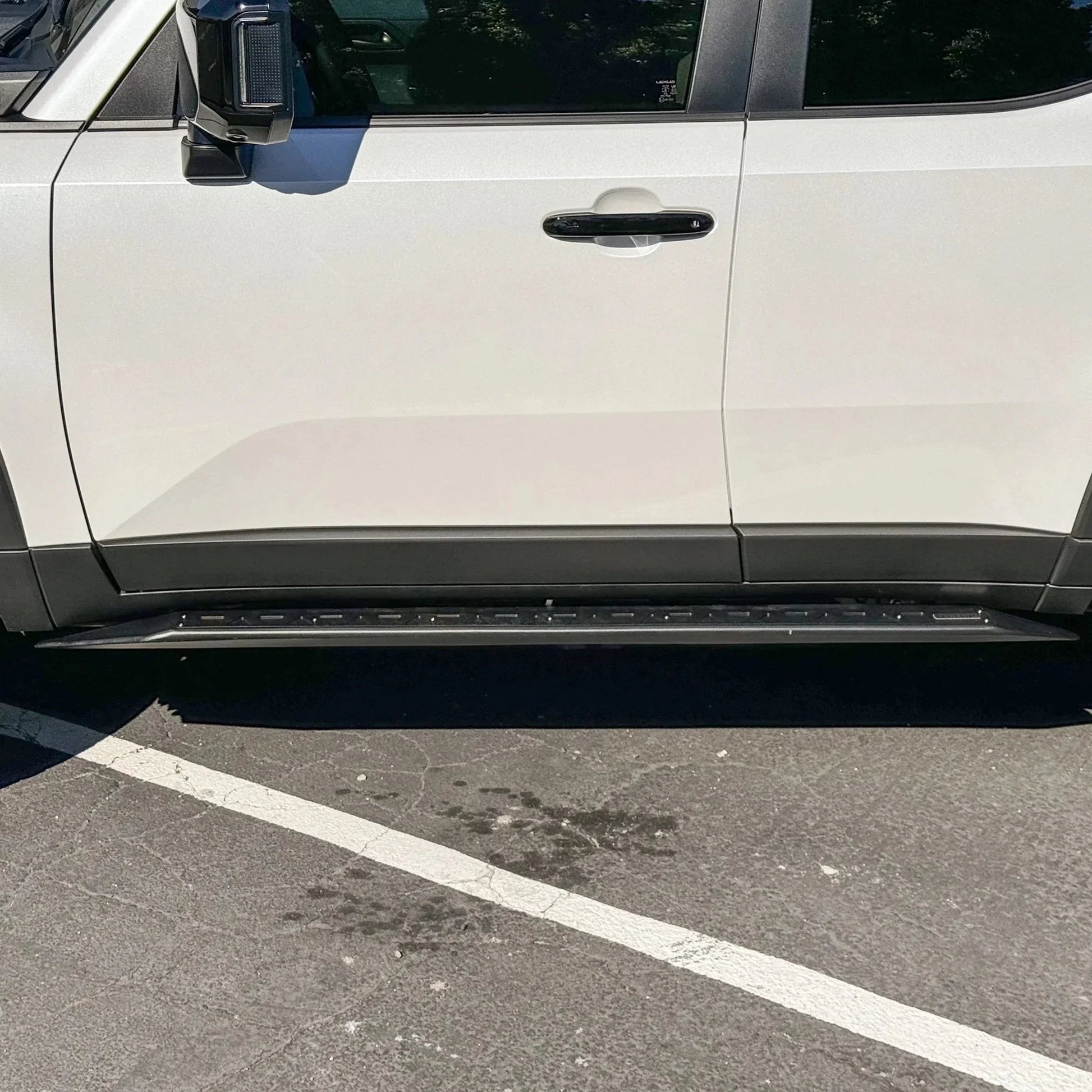

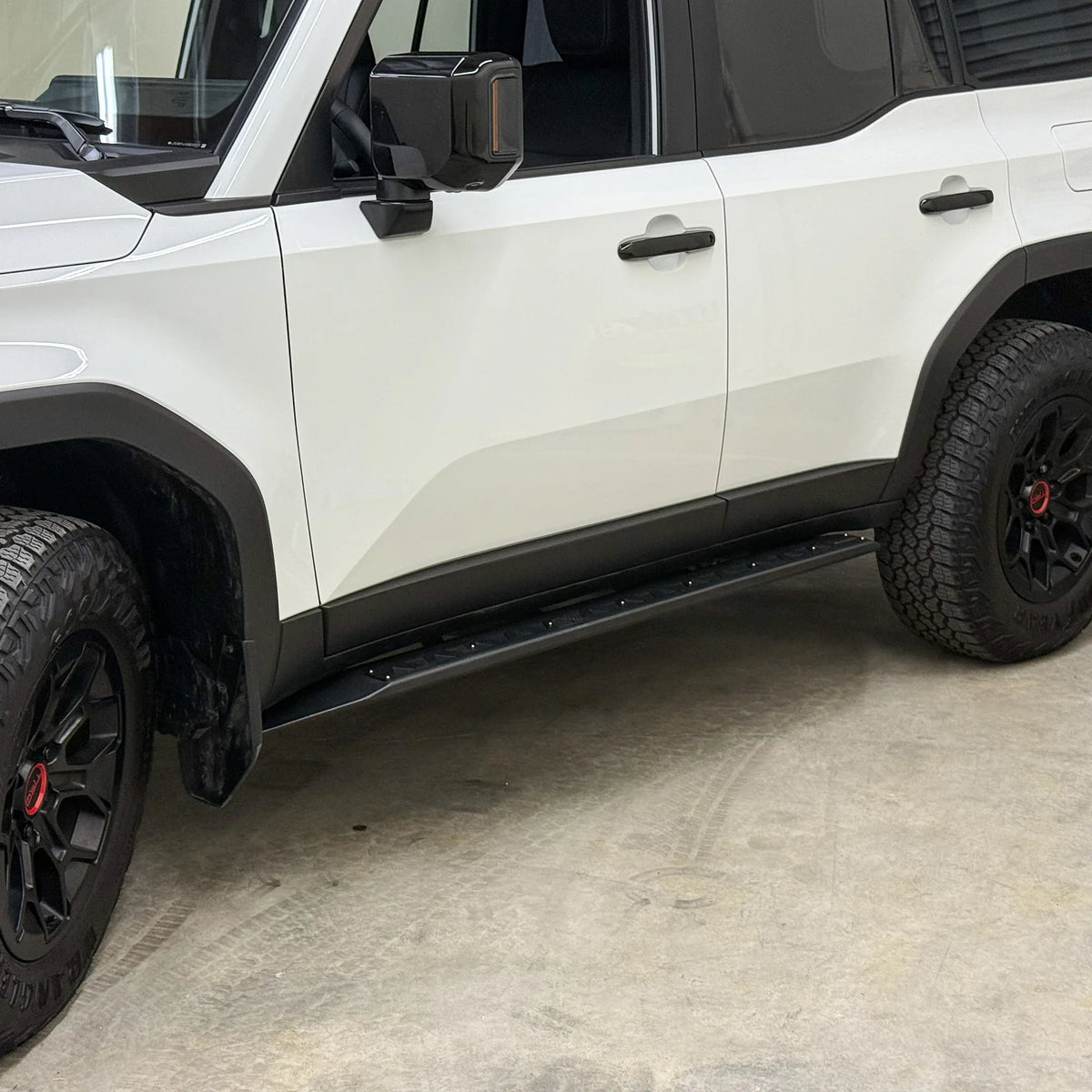

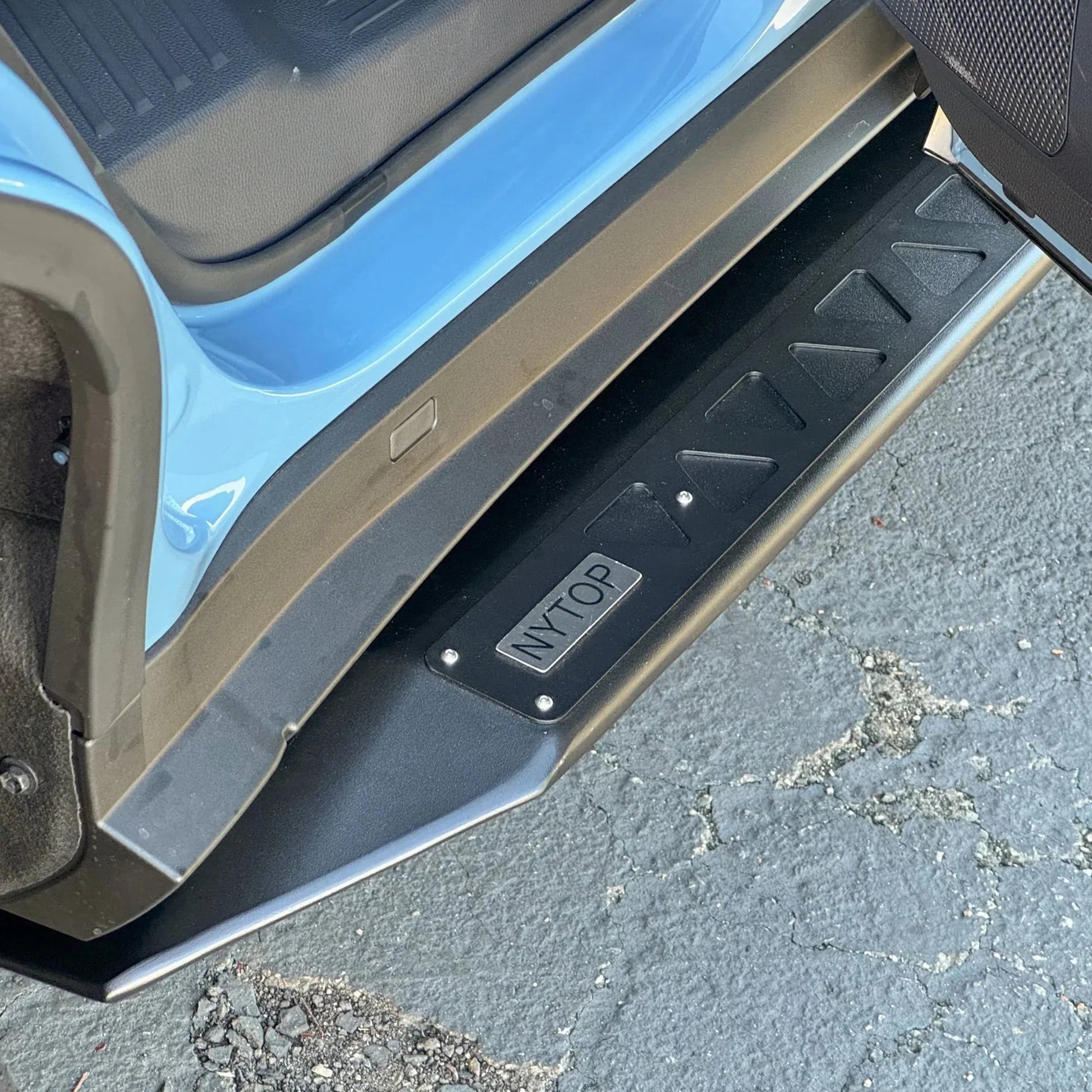

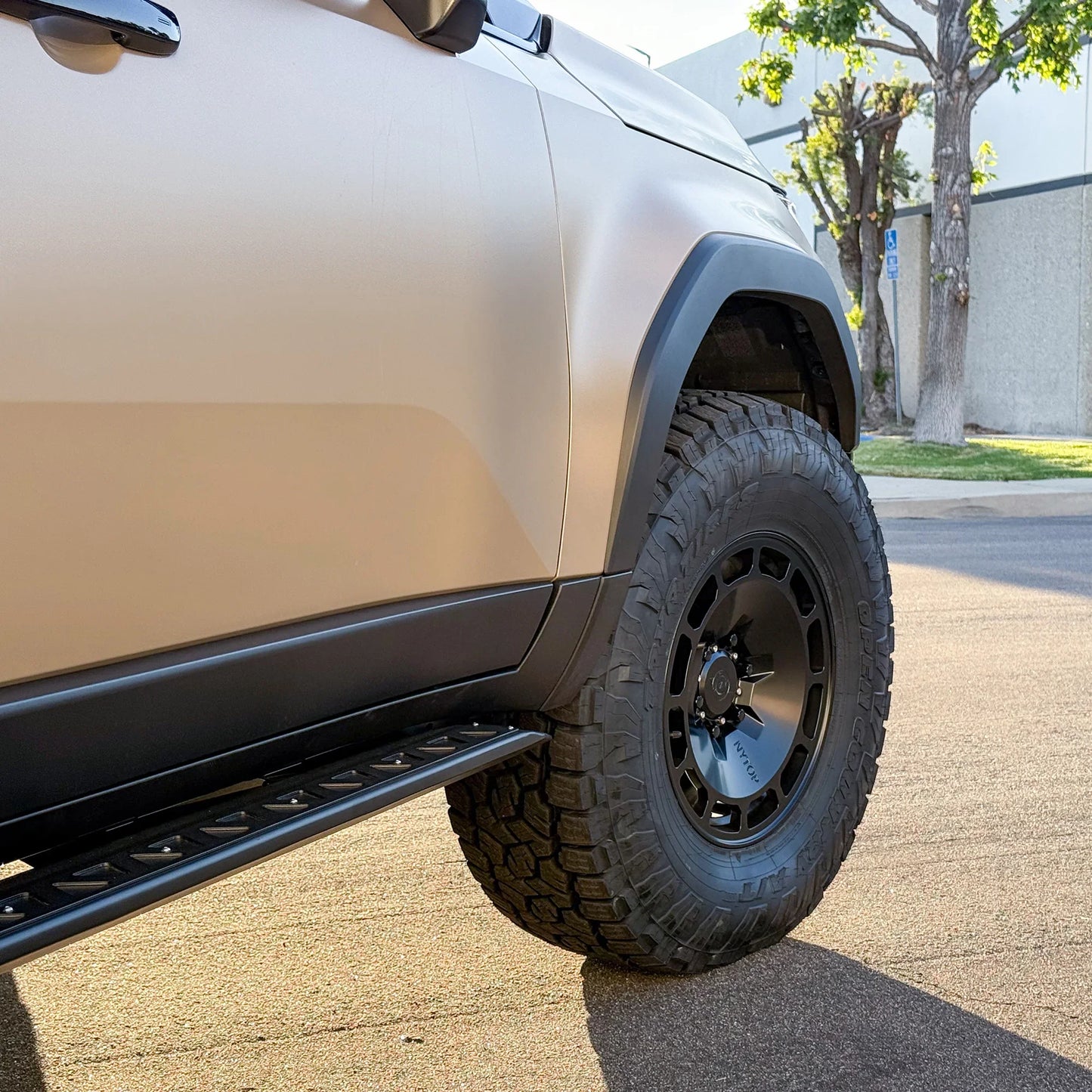

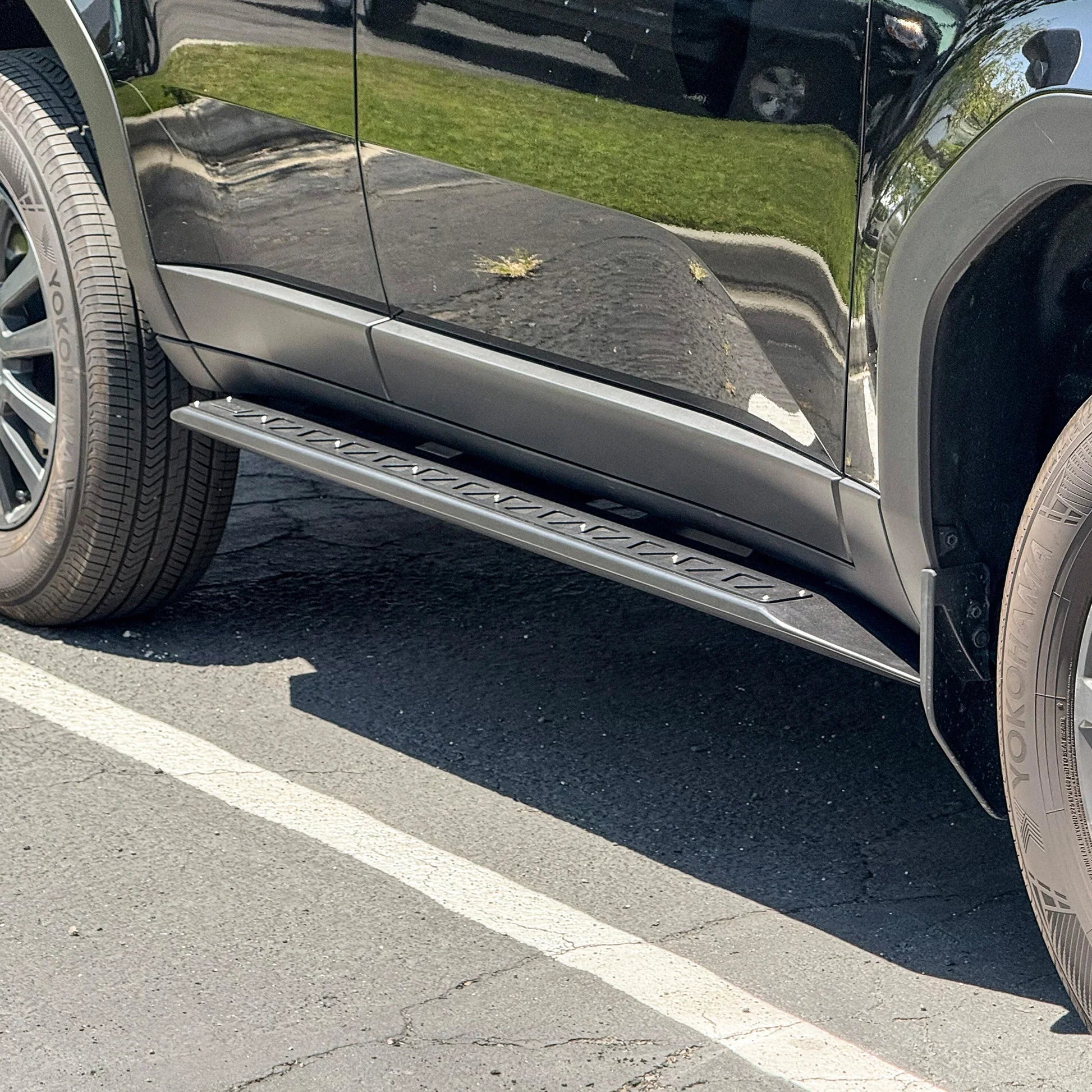

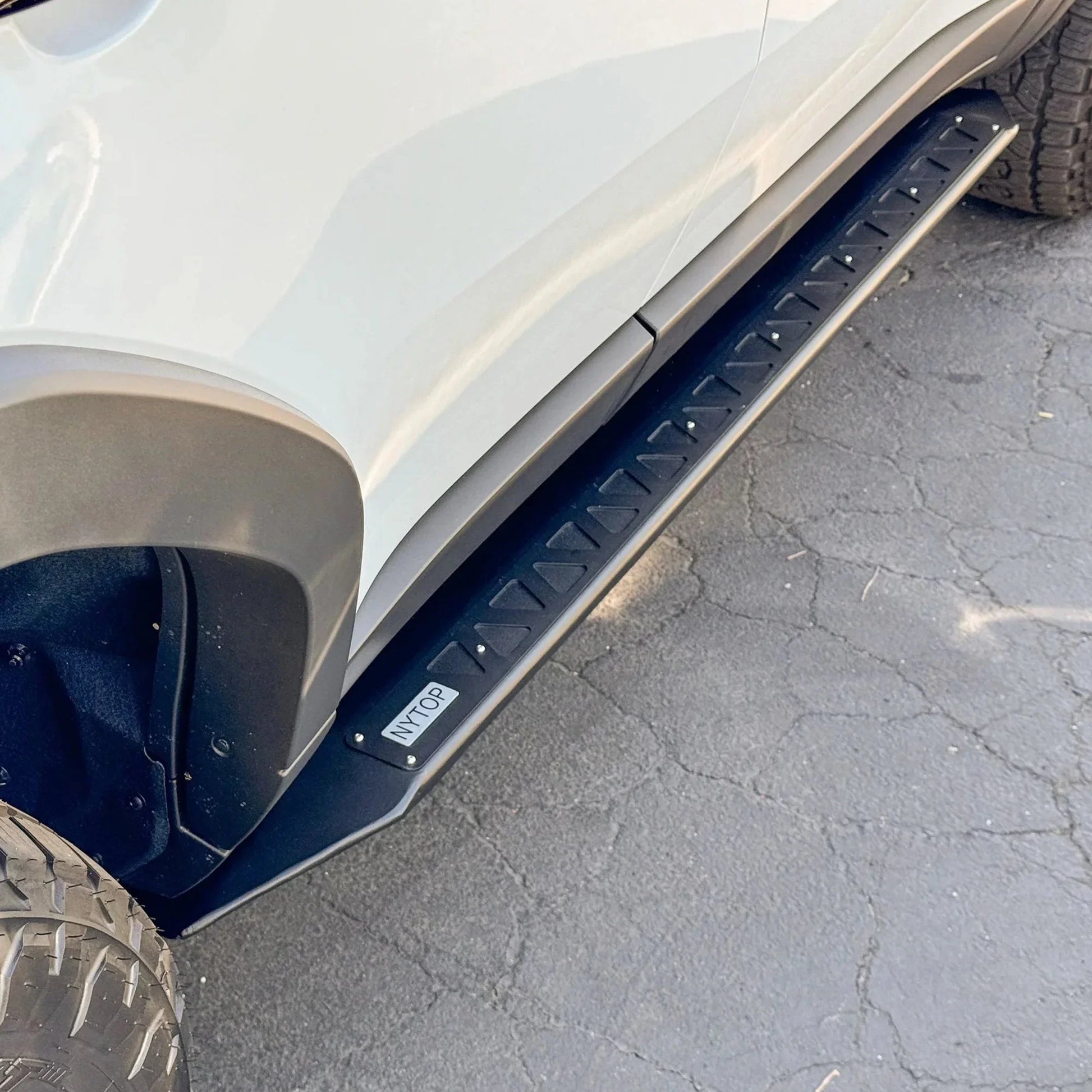

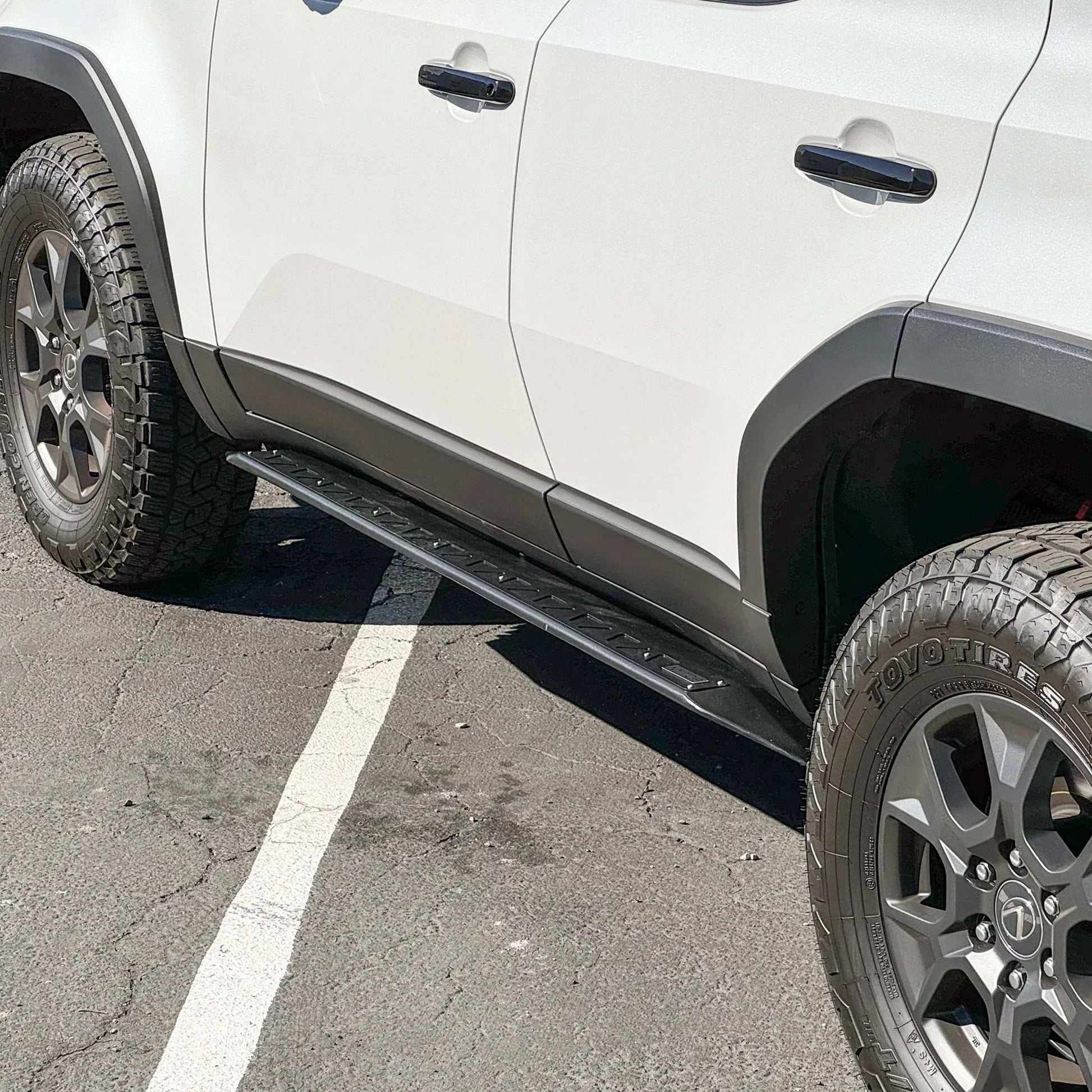

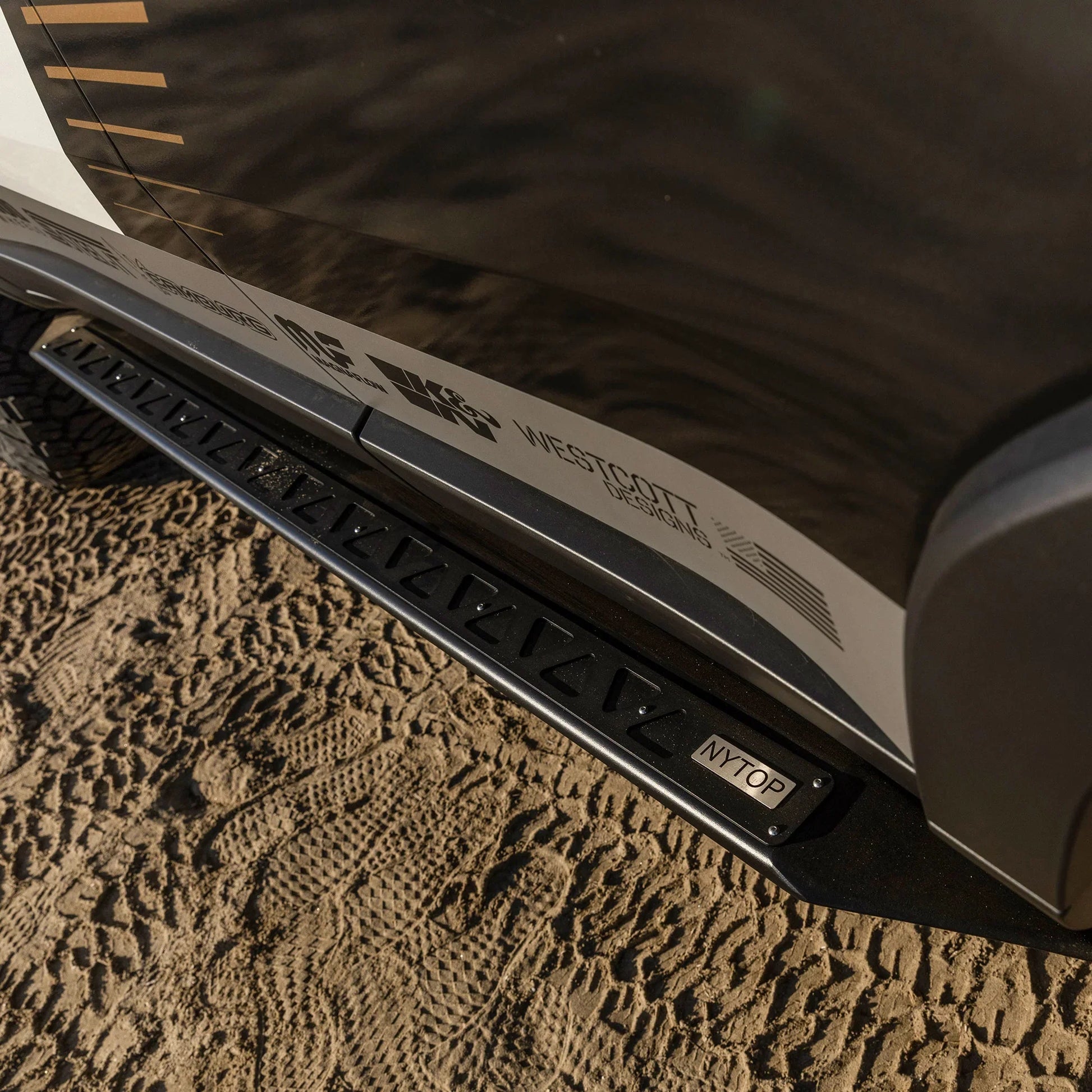

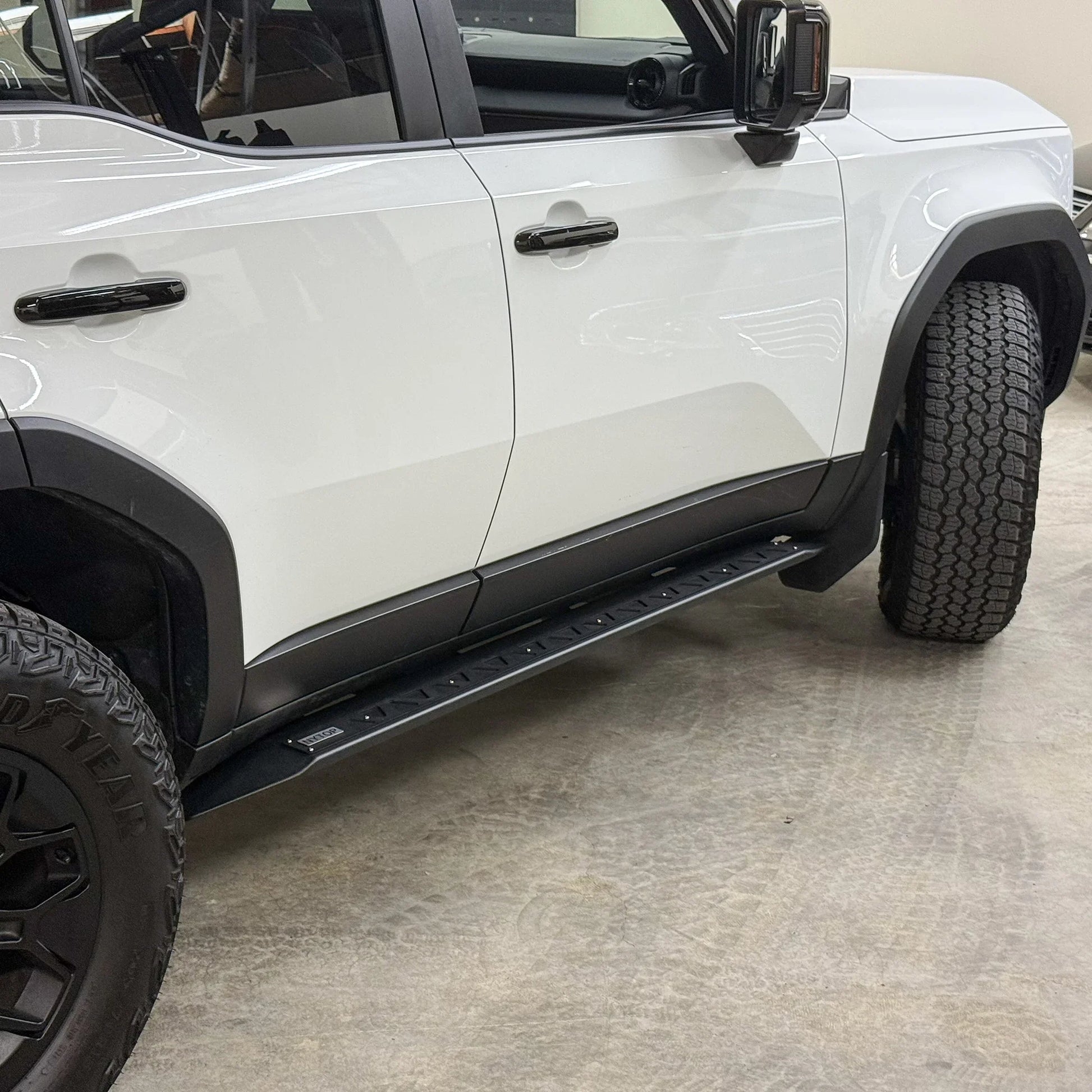

These Not Your Typical Rock Sliders for the Lexus GX550/Land Cruiser mount directly to the frame, providing protection to the vehicle's body, while also acting as side steps. They are finished in wrinkled black powder coat, and TIG welded with 3/16-inch and ¼-inch high-strength steel to ensure durability.

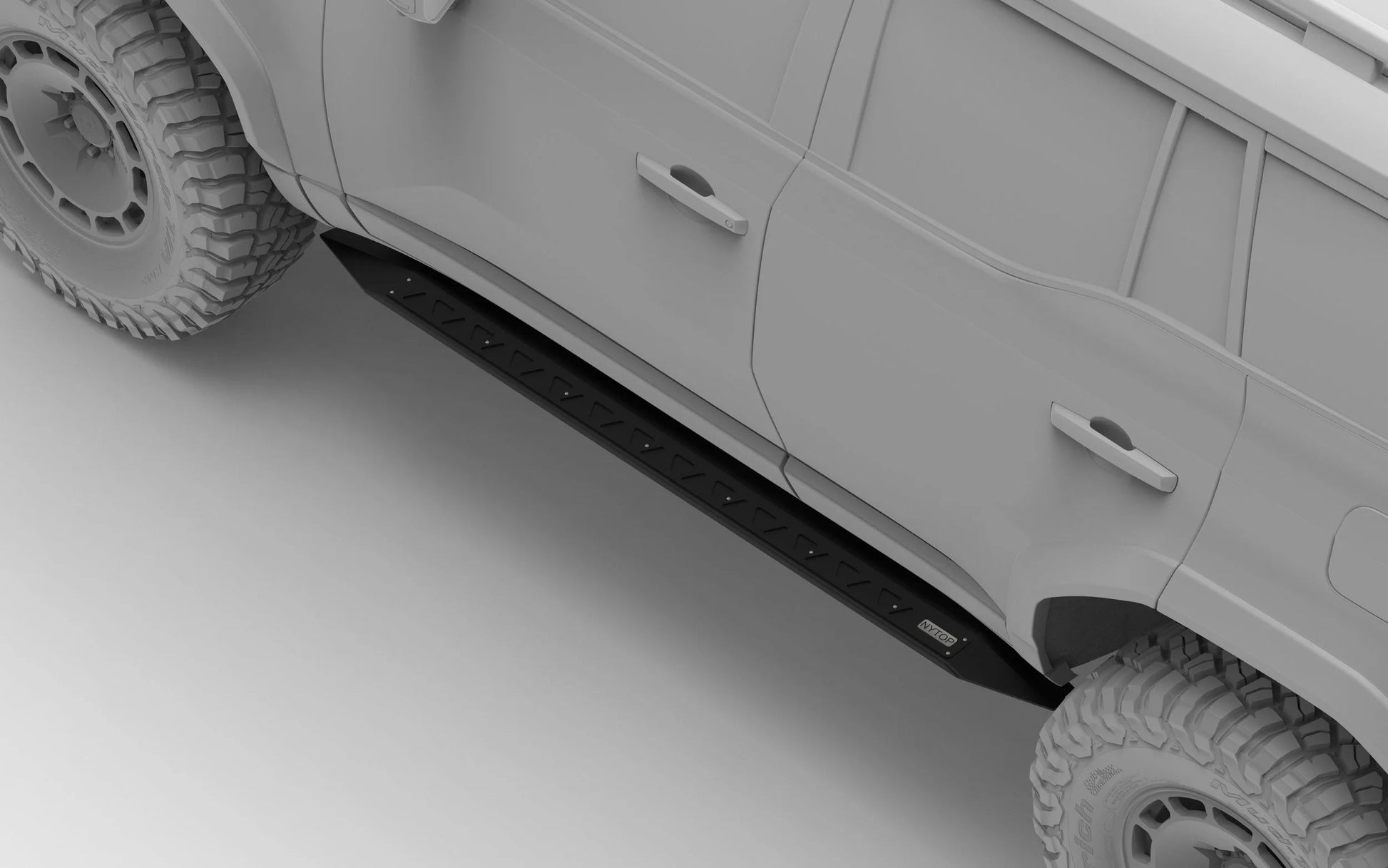

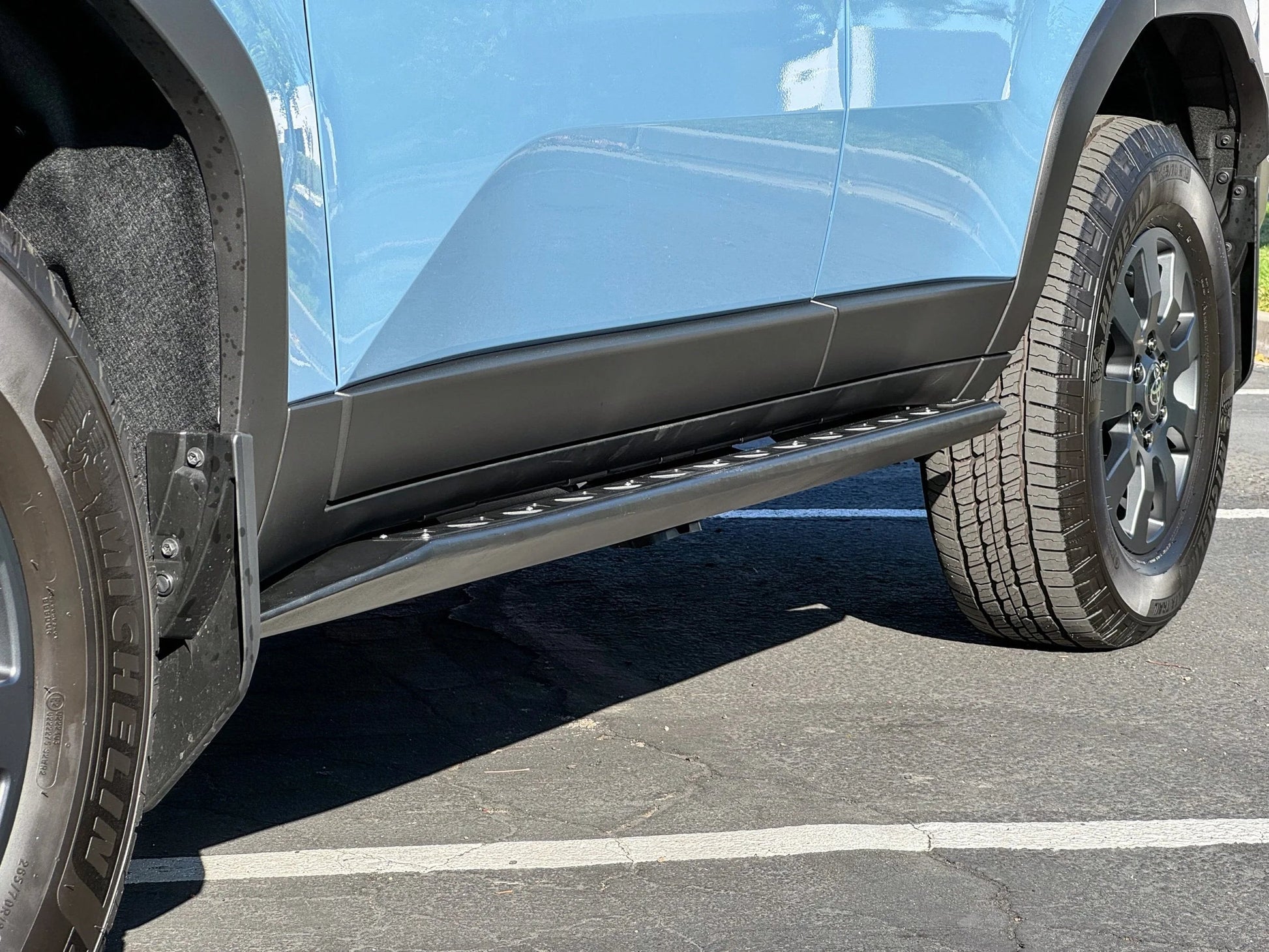

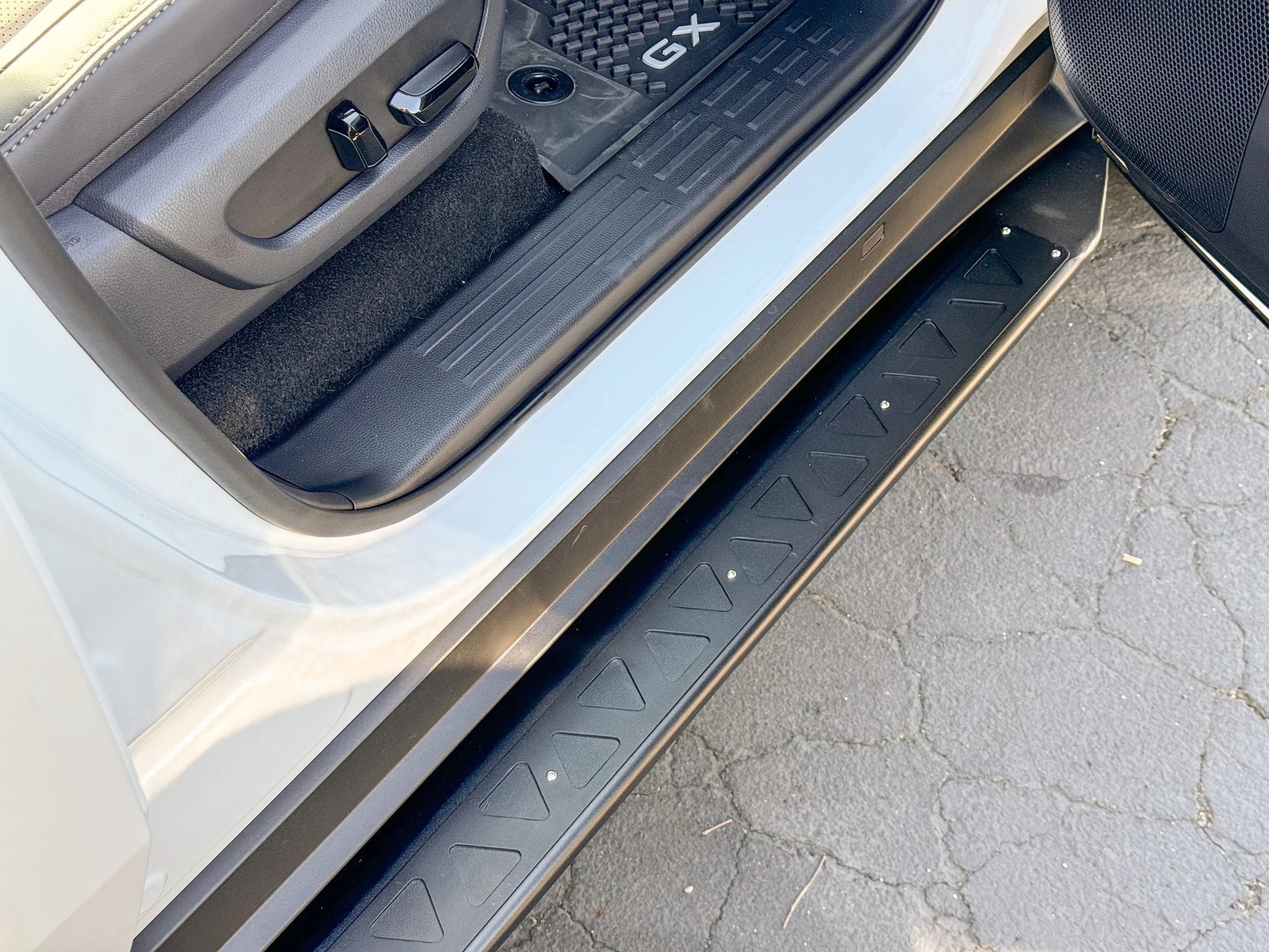

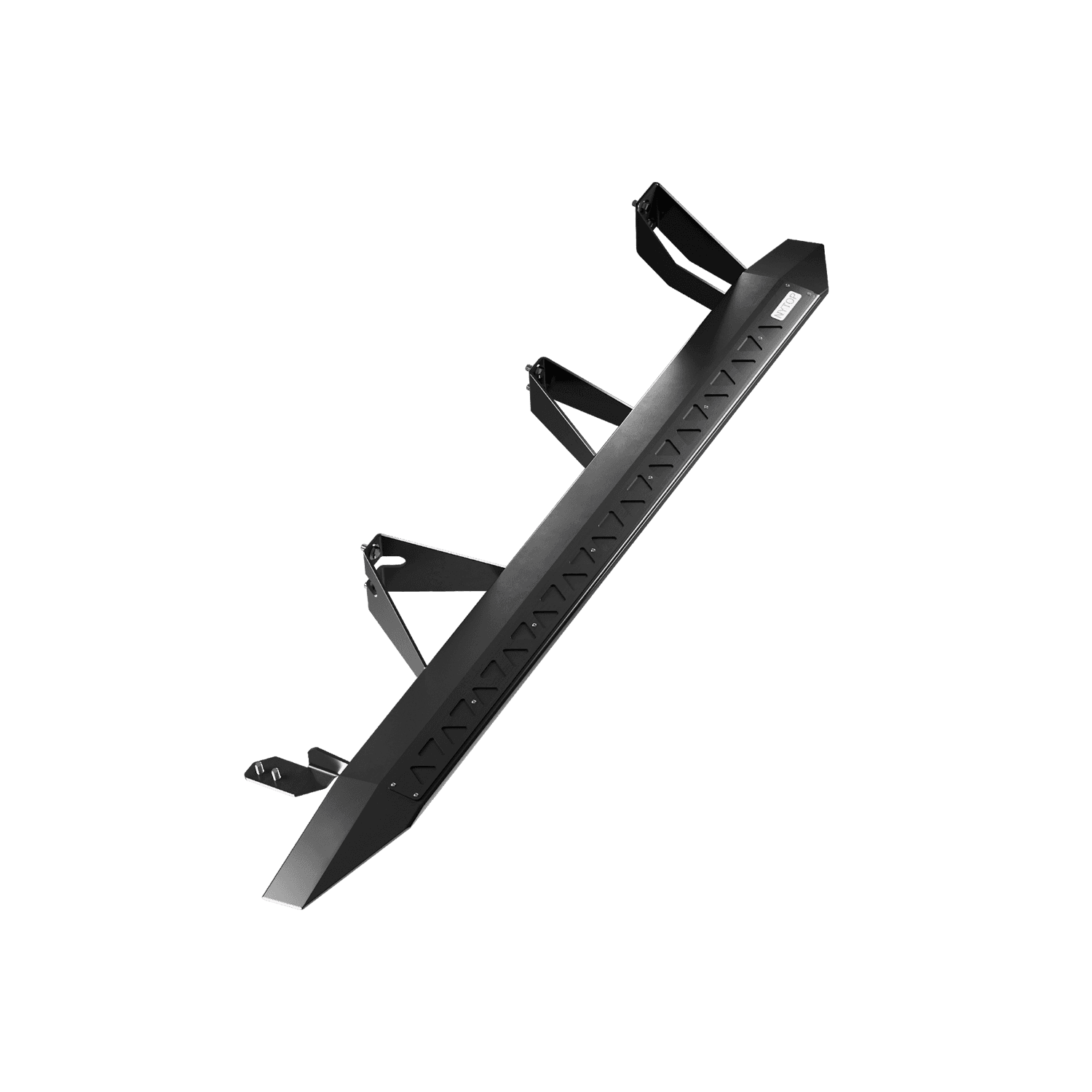

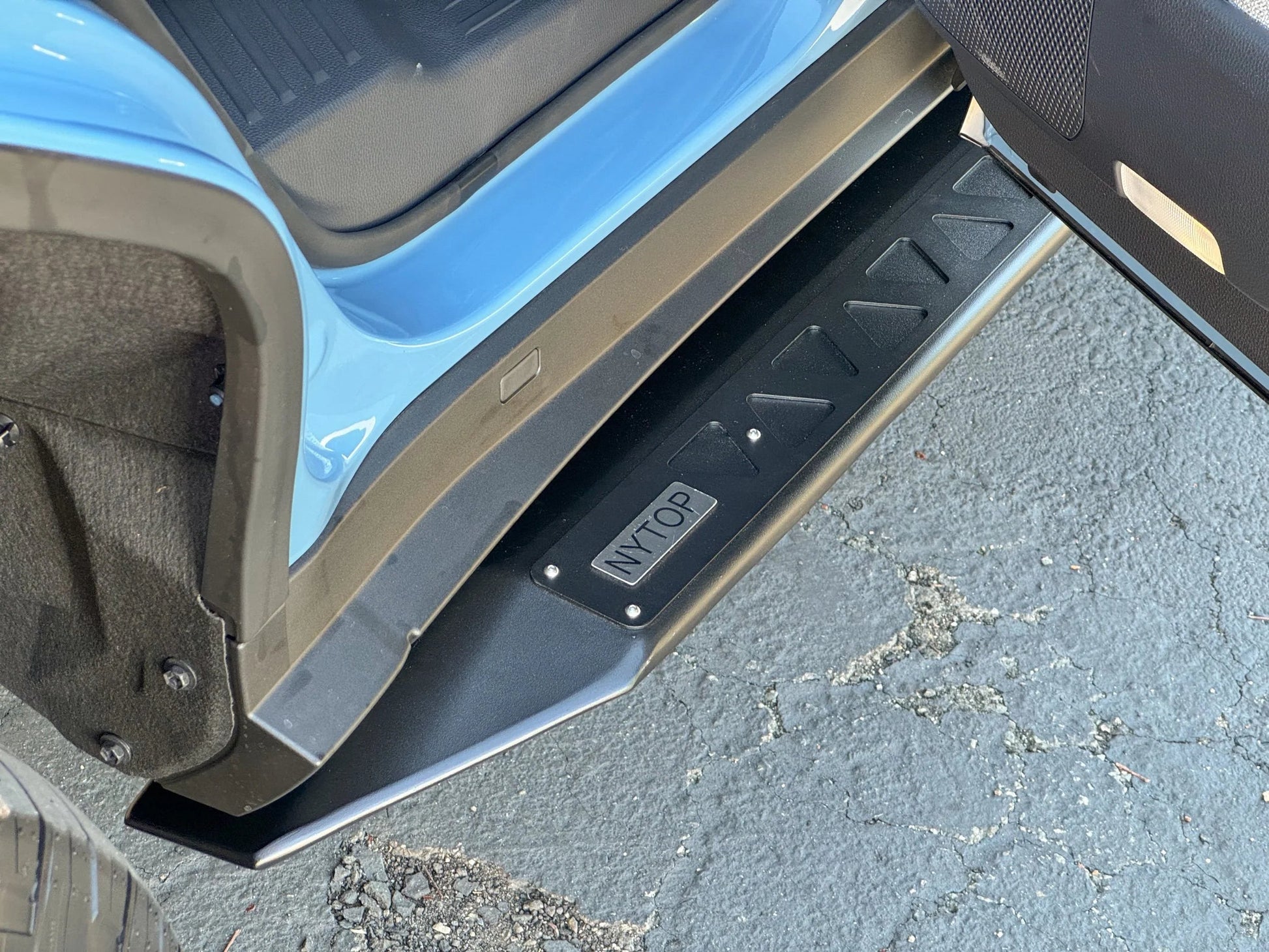

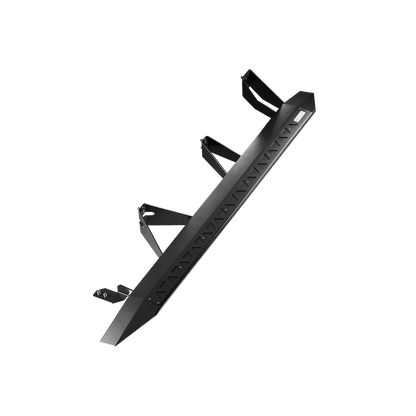

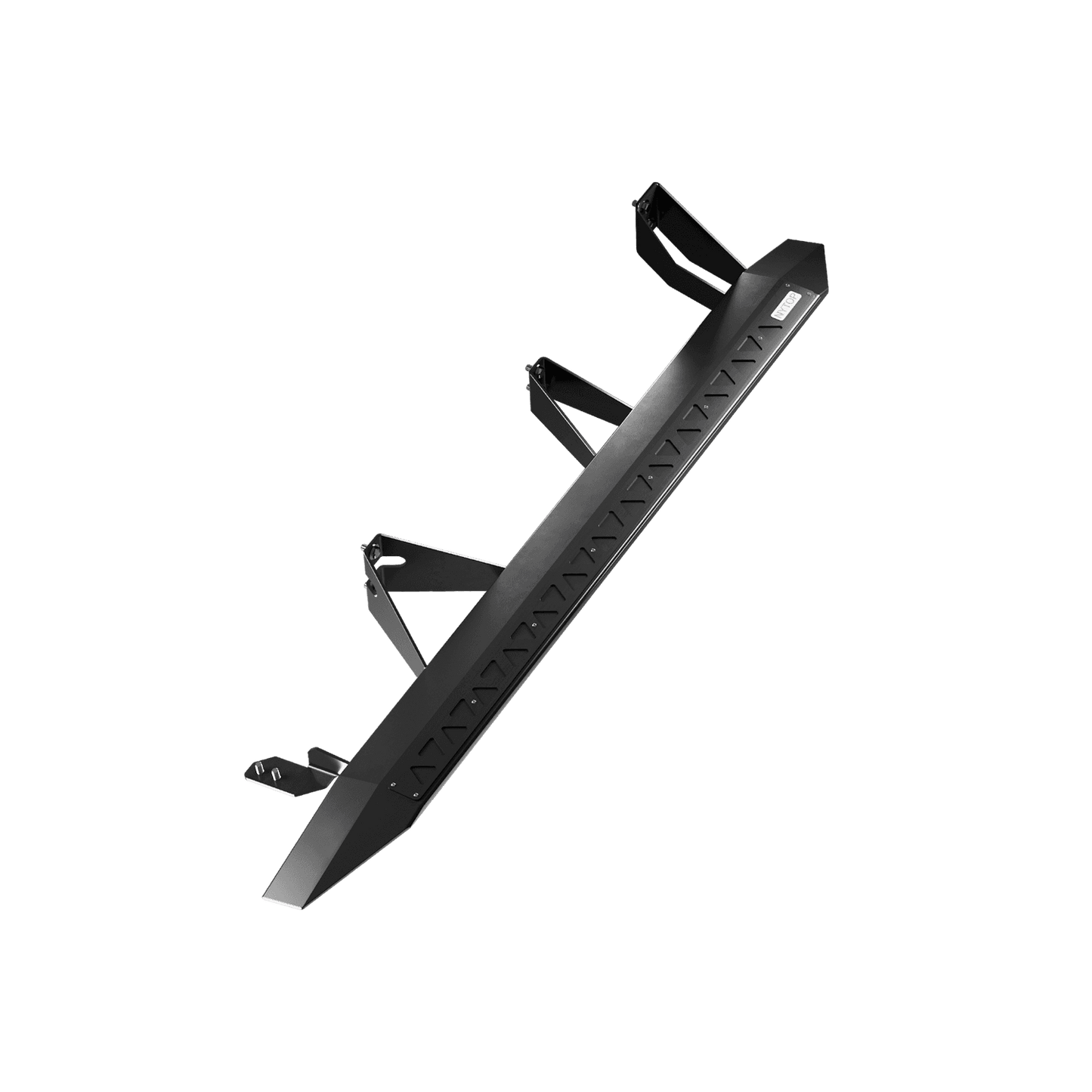

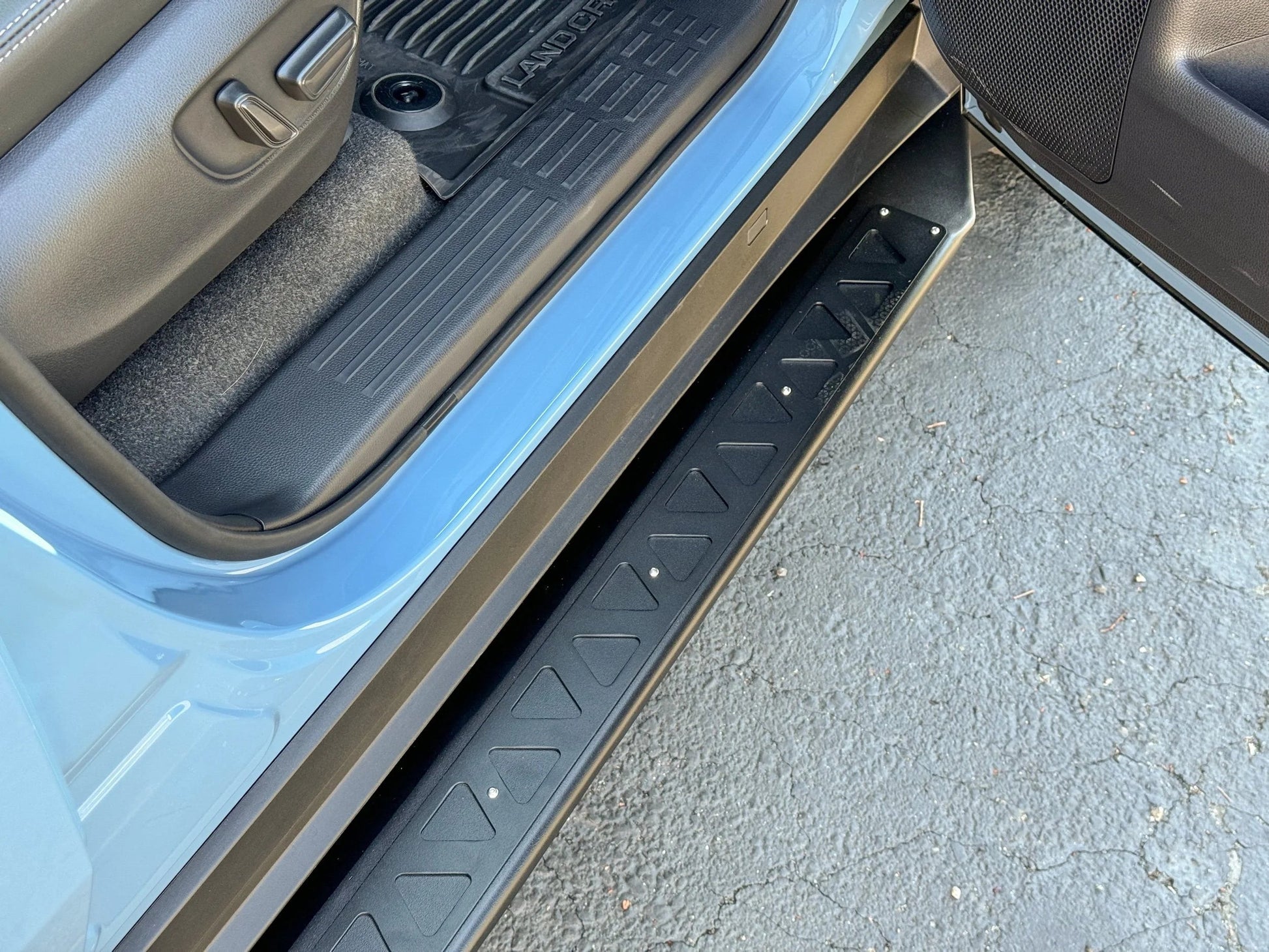

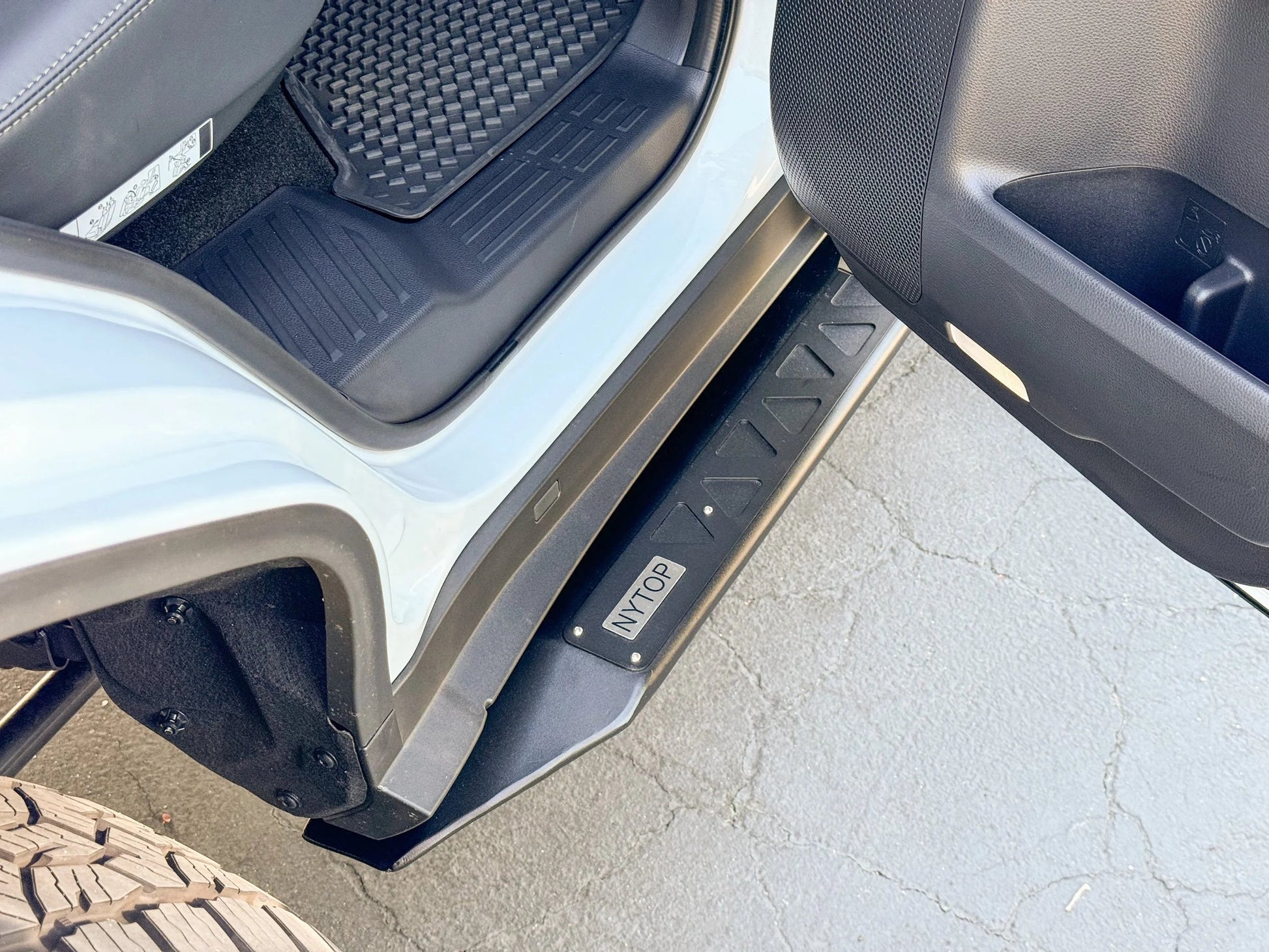

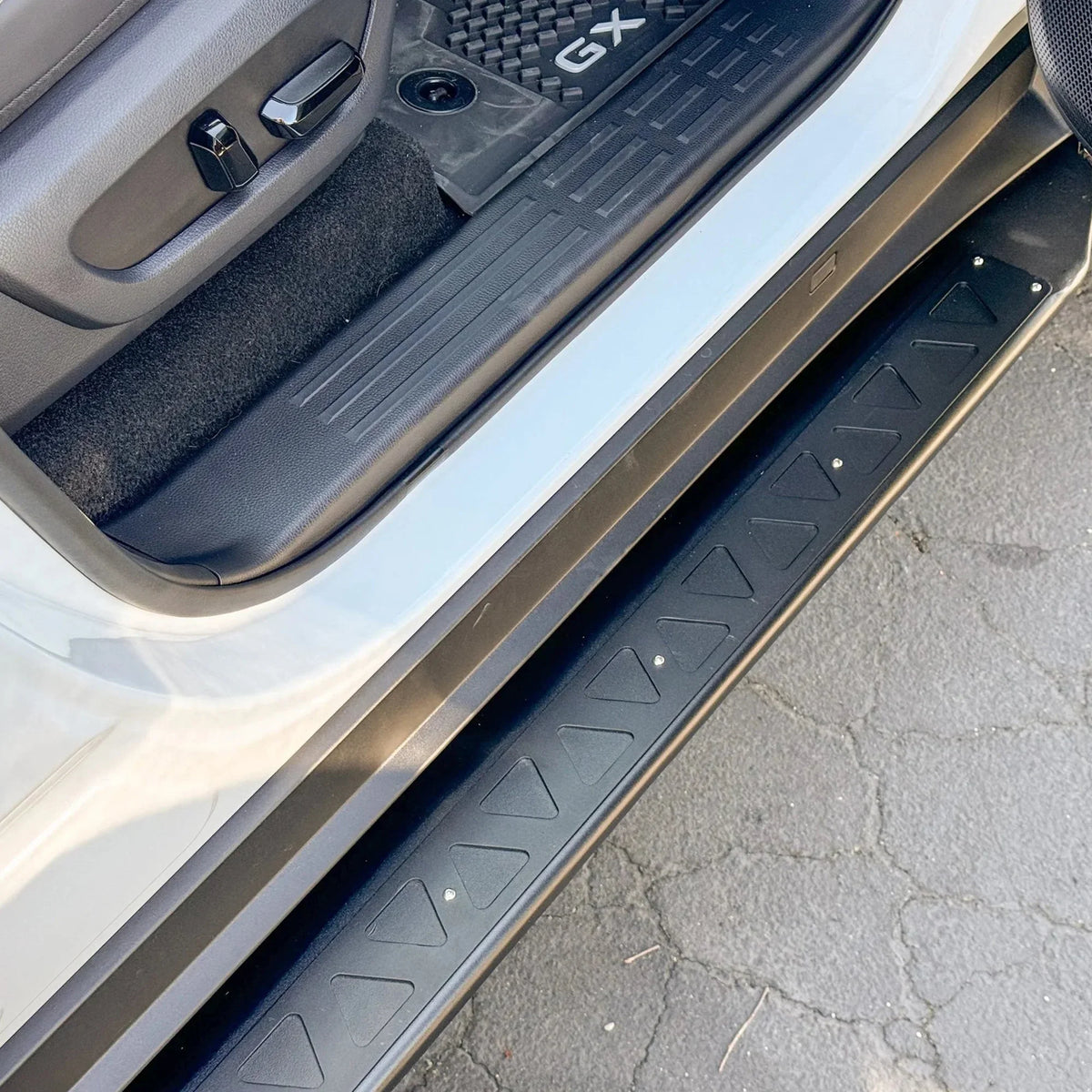

The sliders have a high clearance and a low profile. They are also crafted with a non-traditional design that forgoes conventional tubular construction. This change allows for a 28.5° flat, angled bottom surface optimized for sliding, while the top remains level to provide a practical, 4-inch wide stepping platform for effortless vehicle entry and exit.

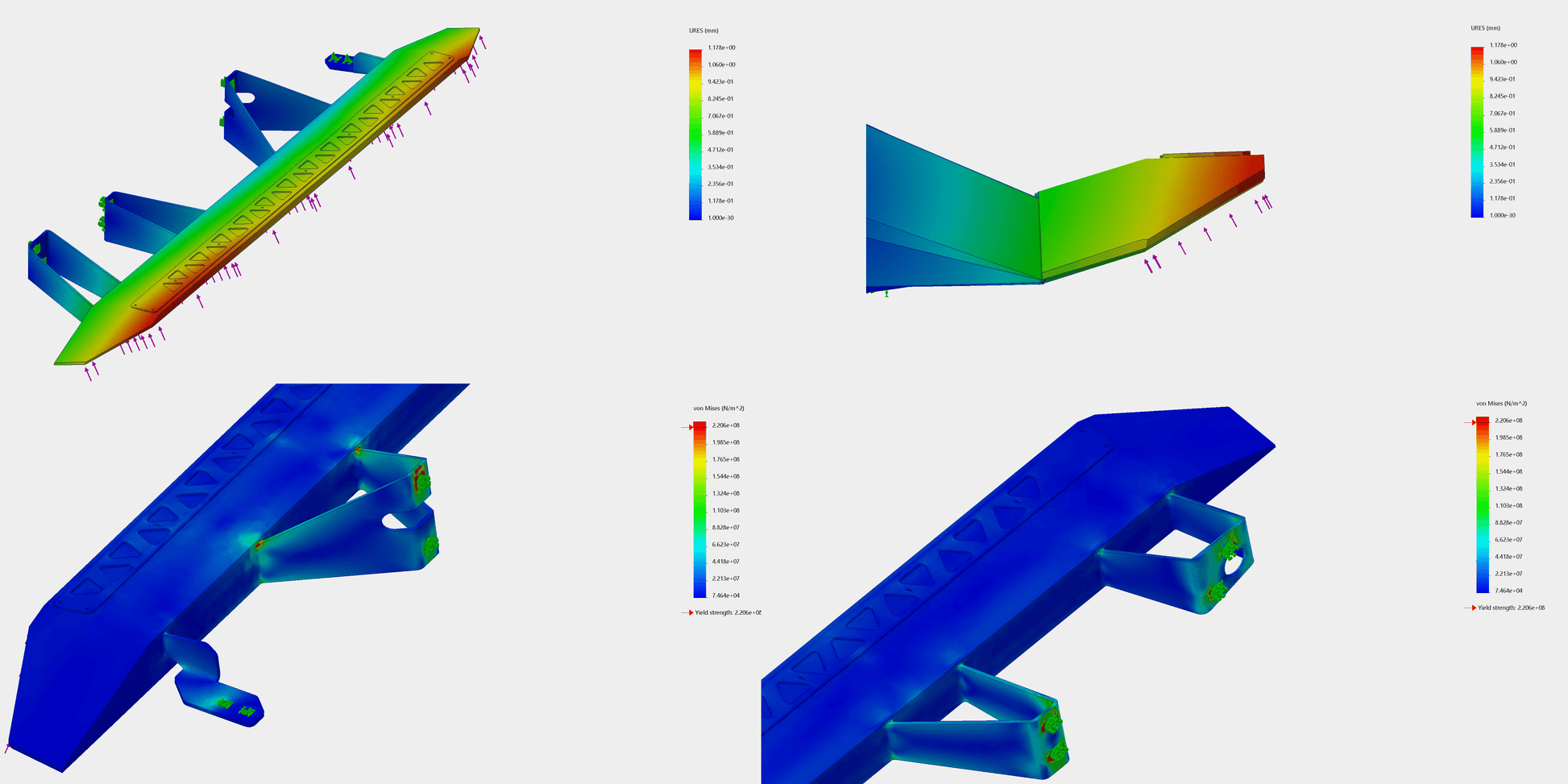

NYTOP Rock Slider Stress Test Results:
- 1.3 Metric ton (2866 lbs): 2mm flex with full spring back.
- 1.7 Metric ton (3748 lbs): 3mm flex with 1mm deformation after spring back.
- 2 Metric ton (4409 lbs): 4mm flex with 1.5mm deformation after spring back.
- 3 Metric ton (6614 lbs): 6mm flex with 2mm deformation after spring back.
INSTALLATION & USAGE

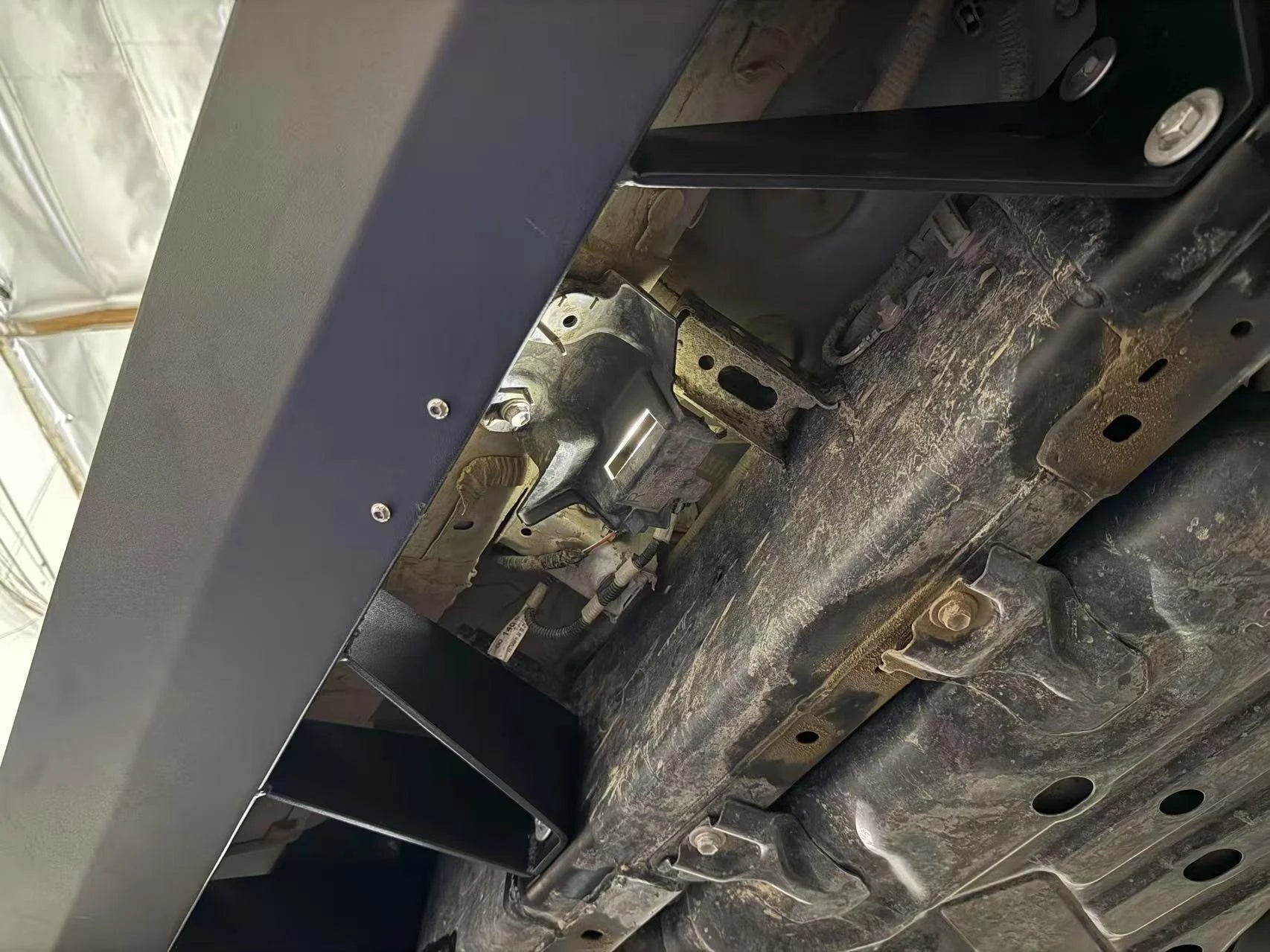

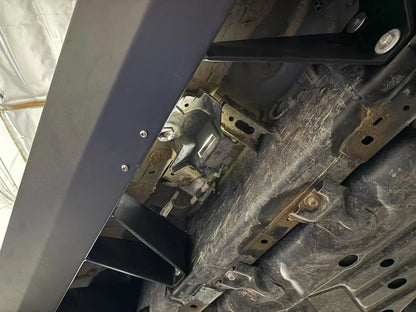

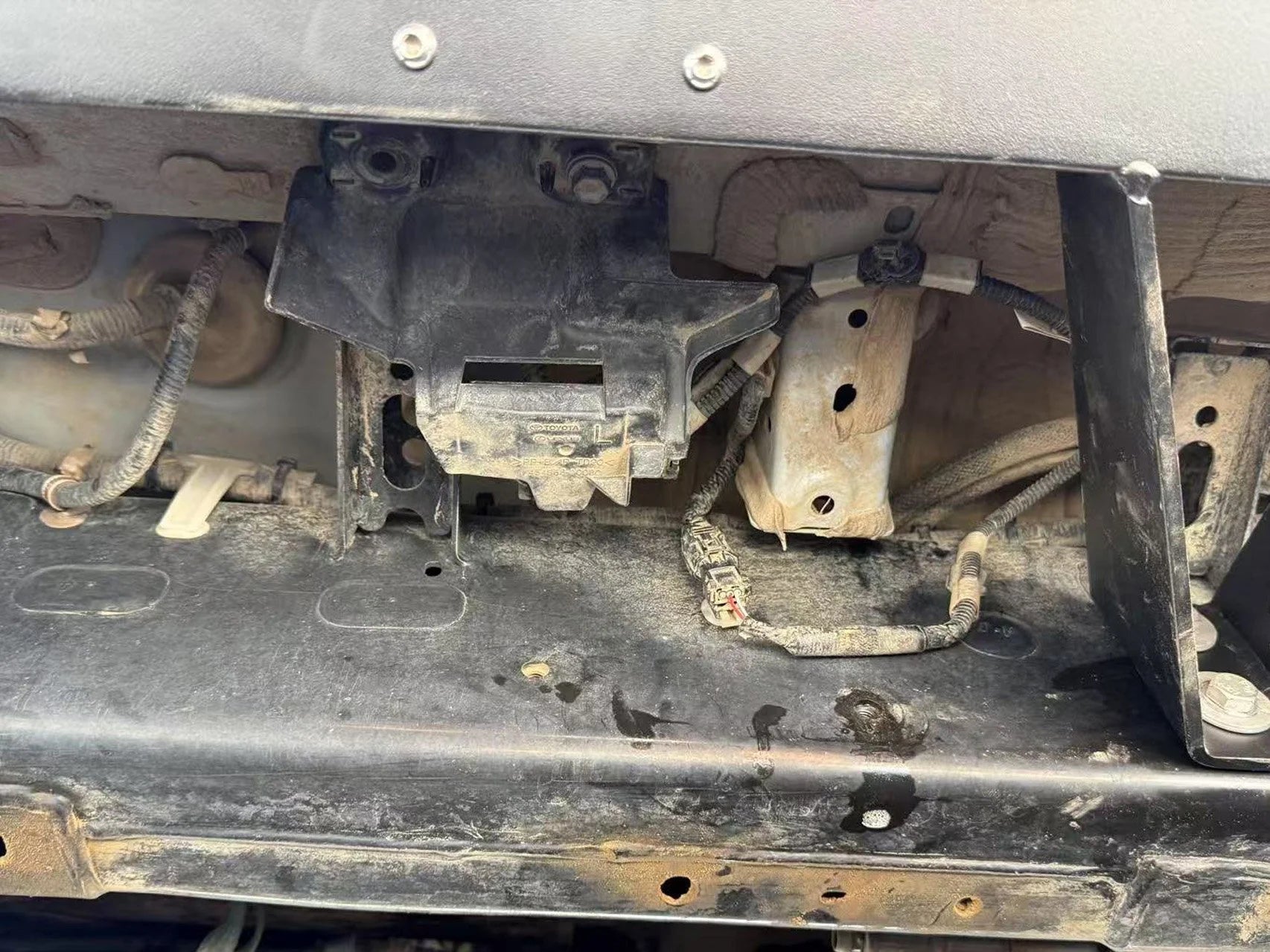

All necessary mounting hardware included. On certain GX550 premium or luxury trims, the rock sliders need to be installed with 1/4-inch BoxBolts®. Check on both sides of the frame to see if there are threaded nuts welded on the backside of the mounting holes, to determine if self expansion bolts are needed. 1/4-inch BoxBolts® (12 needed) not included, sold separately. The factory step lamps could be mounted onto the rock sliders with the provided M6 bolts, or mounted higher up under the cab using the OEM side step bolts, shown in the pictures. Torque down all the M10 bolts to 48 ft-lbs./65 Nm. Torque down the 1/4 inch BoxBolts® to 14 ft-lbs./19 Nm.
